Truck Mobile Column Lift – Heavy Duty Car & Commercial Hoist

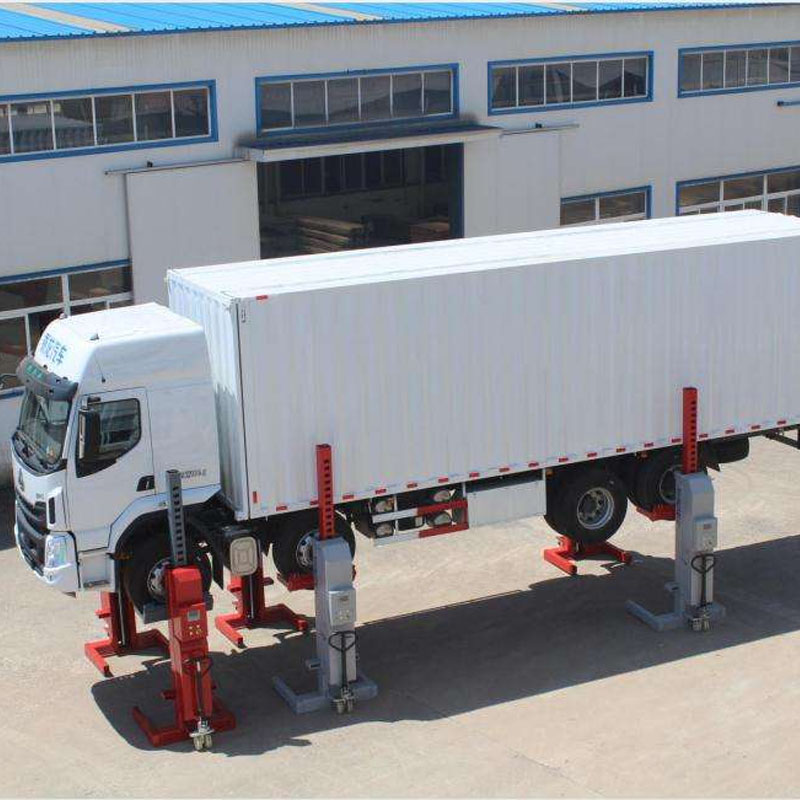

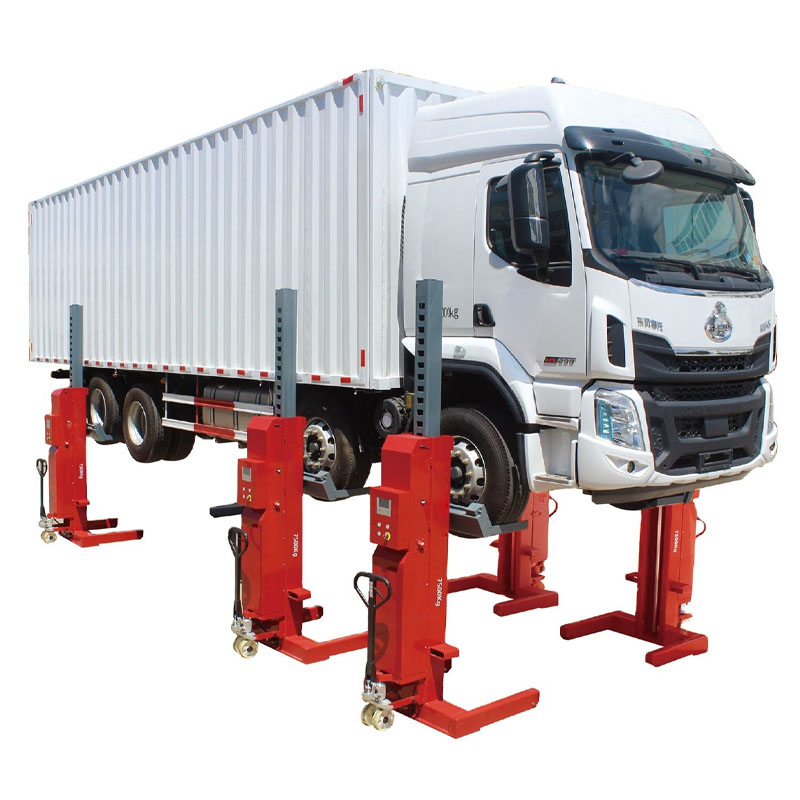

This wireless mobile column lift system provides flexible and efficient lifting for trucks and commercial vehicles. Each column features a control panel, two gel batteries, and an integrated charger, supporting up to 20 lifting and lowering cycles per charge. Available in sets of 4, 6, or 8 columns, it includes mechanical safety systems, 10m charging cables, and optional adjustable forks for small to HGV wheels. Auto transmission channel selection ensures precise operation and maximum safety.
Compare
Truck Mobile Column Lift Product Description

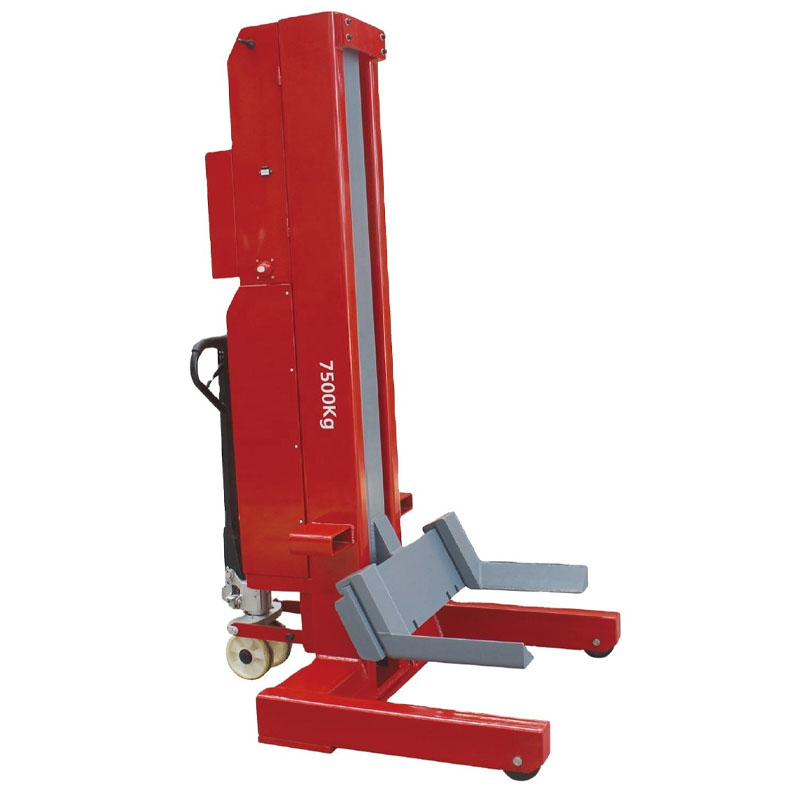

This wireless mobile column lift allows efficient lifting of trucks and commercial vehicles. Each column has a control panel, gel batteries, and integrated charger, providing up to 20 lifting cycles per charge. Available in 4–8 column sets, it features mechanical safety systems, 10m charging cables, optional adjustable forks, and auto transmission channel selection for safe and flexible operation.
Product Parameter Table
| Lifting Capacity (Kg) | 7500 |
| Lifting/Lowering Time (sec) | 120/90 |
| Motor (kW) | 3 |
| Max Height (mm) | 3850 |
| Height when Lowered (,,) | 2250 |
| Width Each Column (mm) | 1330 |
| Rise (mm) | 1650 |
| Max Width of Fork (mm) | 600 |
| Weight per Column (Kg) | 650 |
Main features
-
Wireless and independent operation
Each column has a control panel and supports up to 20 lifting/lowering cycles per battery charge. -
Flexible column configuration
Available in sets of 4, 6, or 8 columns to accommodate different vehicle sizes and workshop layouts. -
Integrated power and charging system
Each column contains two gel batteries with integrated charger, allowing charging during use. -
Safety and precision features
Mechanical safety system and auto transmission channel selection ensure secure and accurate operation. -
Adaptable lifting options
Optional adjustable forks support wheels from small vehicles to heavy goods vehicles (HGVs).
Application scenarios
-
Truck and bus maintenance workshops
Ideal for lifting, inspecting, and servicing buses, trucks, and heavy-duty commercial vehicles efficiently. -
Commercial vehicle service centers
Perfect for tire replacement, brake service, suspension maintenance, and underbody inspection for large vehicles. -
Fleet maintenance facilities
Widely used in logistics depots, public transport garages, and fleet service centers for daily vehicle upkeep.
Contact us to get your quotation now.
