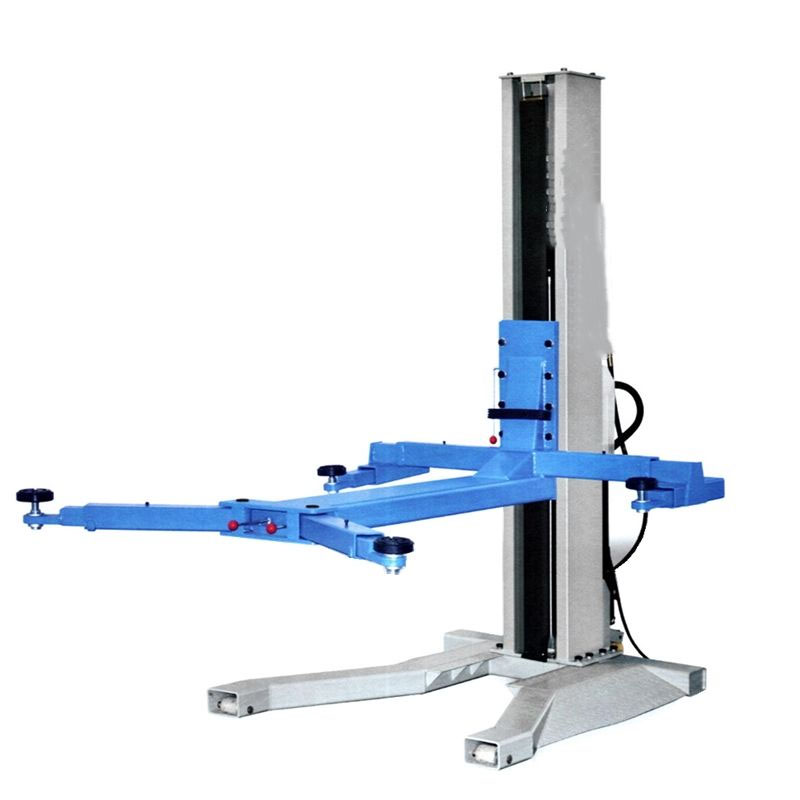

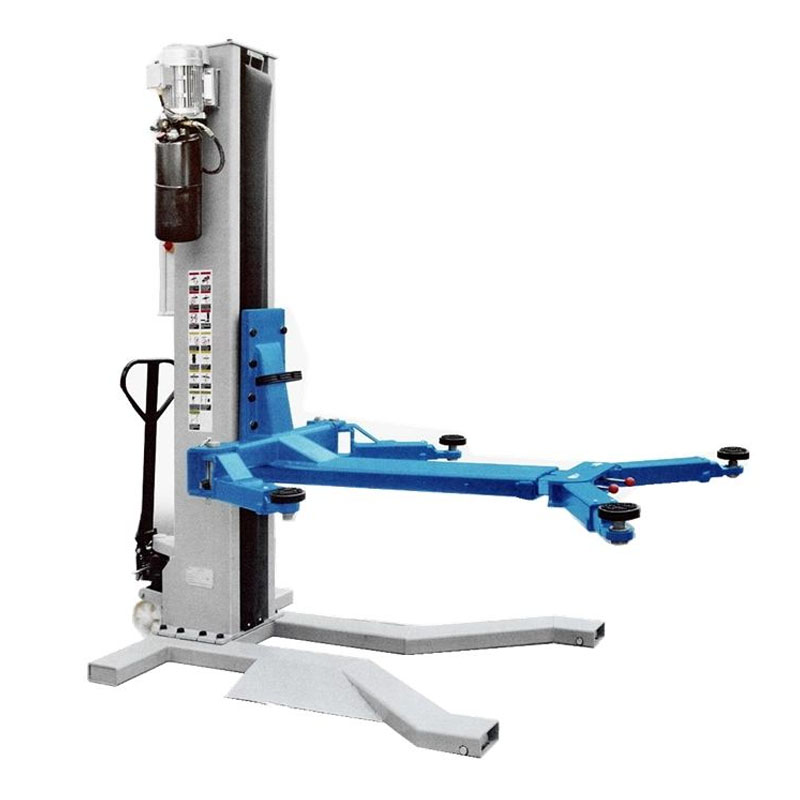

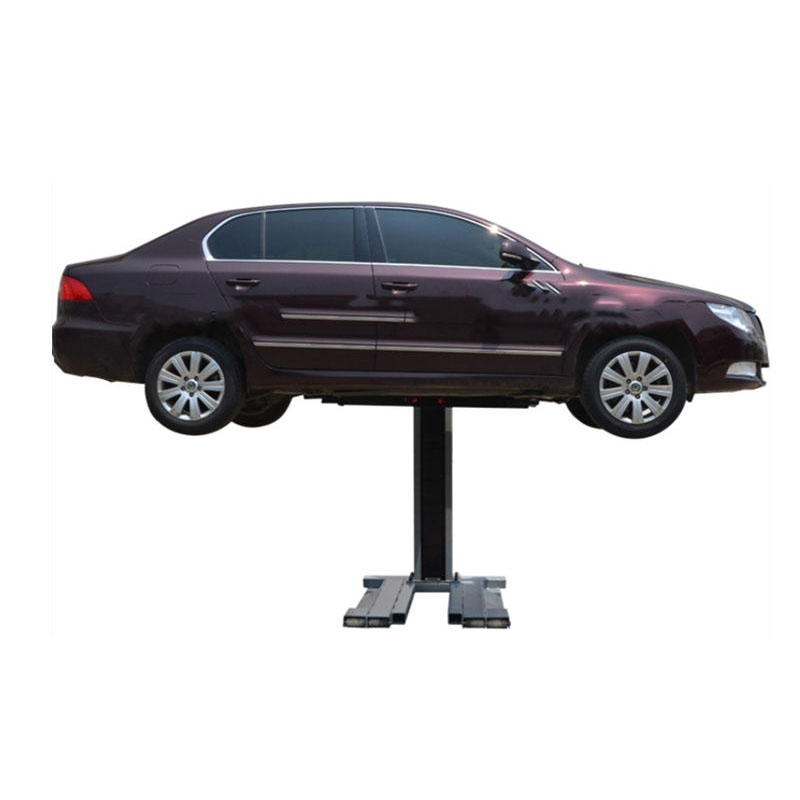

Single Cylinder Heavy-Duty Hydraulic Car Lift Single Post Design
This mobile single-post hydraulic car lift is designed for workshops with limited space, offering easy pallet-style movement and flexible positioning. The one-post structure provides unrestricted access to vehicle doors, improving service efficiency. With an 85 mm ultra-low base frame and adjustable 3-stage screw-up pads, it easily lifts low-chassis cars and SUVs. Safety features include a 24 V upper limit switch, anti-surge hydraulic valve, chain guard, door protection pads, and CE certification.
Compare
Product Description of Heavy-Duty Hydraulic Car Lift
This mobile single-post hydraulic car lift is ideal for tight spaces, featuring pallet-style mobility and a space-saving design. The single-column structure allows free access to vehicle doors. An 85 mm low base frame and 3-stage adjustable pads support both low chassis vehicles and SUVs. Built-in safety features include a 24 V limit switch, anti-surge valve, chain guard, and CE certification.
Product Parameter Table
| Lifting capacity | 2500kg |
| Lifting height | 1850mm |
| Min height | 125mm |
| Lifting time | 35s |
| Lowering time | 30s |
| Motor power | 2.2kw |
| Power supply | 220V/380V |
Main features
-
Mobile single-post design
Pallet-style movable structure, ideal for workshops with limited space and flexible layout needs. -
Single column open access
One-post structure provides unobstructed access to vehicle doors, improving service efficiency. -
Ultra-low base frame
85 mm low base with minimum lifting height under 110 mm, suitable for low-chassis vehicles. -
Wide vehicle compatibility
3-stage screw-up lifting pads easily adapt to sedans, SUVs, and light commercial vehicles. -
Enhanced safety system
Equipped with 24 V upper limit switch, anti-surge hydraulic valve, column chain guard, and door protection pads. -
Reliable and compliant
Heavy-duty hydraulic system with CE certification ensures stable operation and long service life.
Application scenarios
-
Auto repair and maintenance workshops
-
Vehicle inspection and service stations
-
Tire, brake, and undercarriage service areas
-
Car dealerships and detailing centers
-
Small to medium garages with space limitations
Contact us to get your quotation now.
