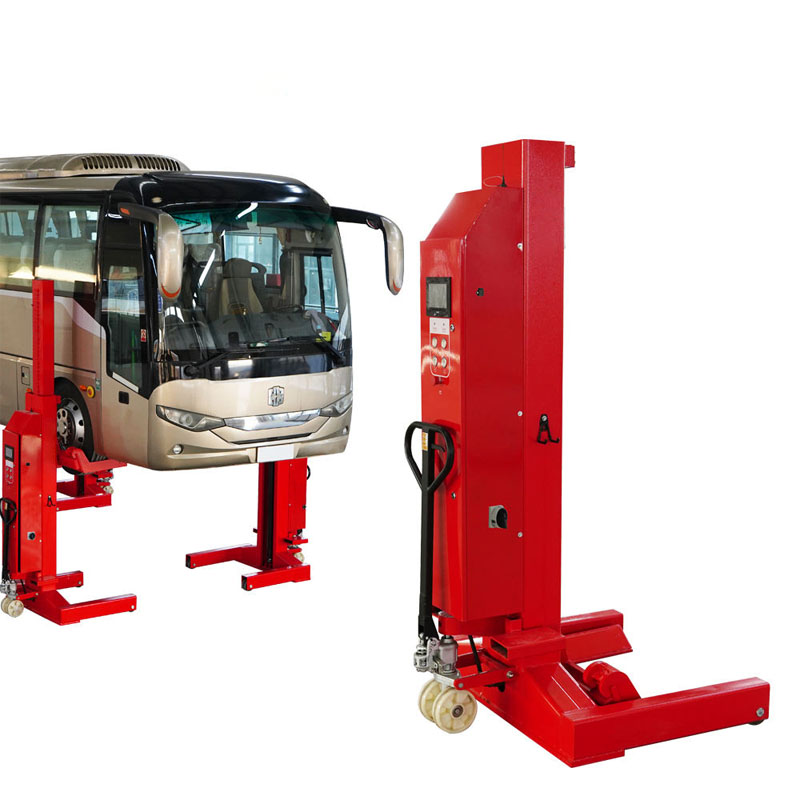

Heavy Duty Mobile Column Lift for Truck and Commercial Vehicle
This heavy-duty mobile column lift system is designed for flexible and safe maintenance of large vehicles. The lifting units can be configured into four or six columns to suit different applications. Adjustable column spacing accommodates various vehicle sizes, while independent hydraulic drive allows easy positioning by a single operator. Multiple voltage options with phase protection ensure safe operation. Suitable for buses, trucks, and specialized vehicles up to 30 tons.
Compare
Product Description of Mobile Column Lift
This heavy-duty mobile column lift system offers flexible configurations with four or six columns to handle different vehicle sizes. Adjustable column spacing and independent hydraulic movement allow easy operation by one person. Multiple voltage options with phase protection ensure safety. Ideal for lifting and maintaining buses, trucks, and specialized vehicles with capacities up to 30 tons.
Product Parameter Table
| Lifting Capacity | 7500kgs/7.5T/each column |
| Lifting Height | 1500mm/59.06inch |
| Operating Method | Touch screen + buttons |
| Lifting Speed | 900mm/min |
| Driving Method | Hydraulic drive |
| Overall Height | 2240mm/88.19inch |
| Overall Width | 1140mm/44.88inch |
| Overall Depth | 1250mm/49.21inch |
| Motor Power | 2.2KW |
| Power Supply | 380V |
Main features
-
Flexible multi-column configuration
Lifting units can be freely combined into four or six columns, adapting to different vehicle types and workshop requirements. -
Wide vehicle adaptability
Adjustable front and rear column spacing accommodates various vehicle lengths and widths, from trucks to buses and specialized vehicles. -

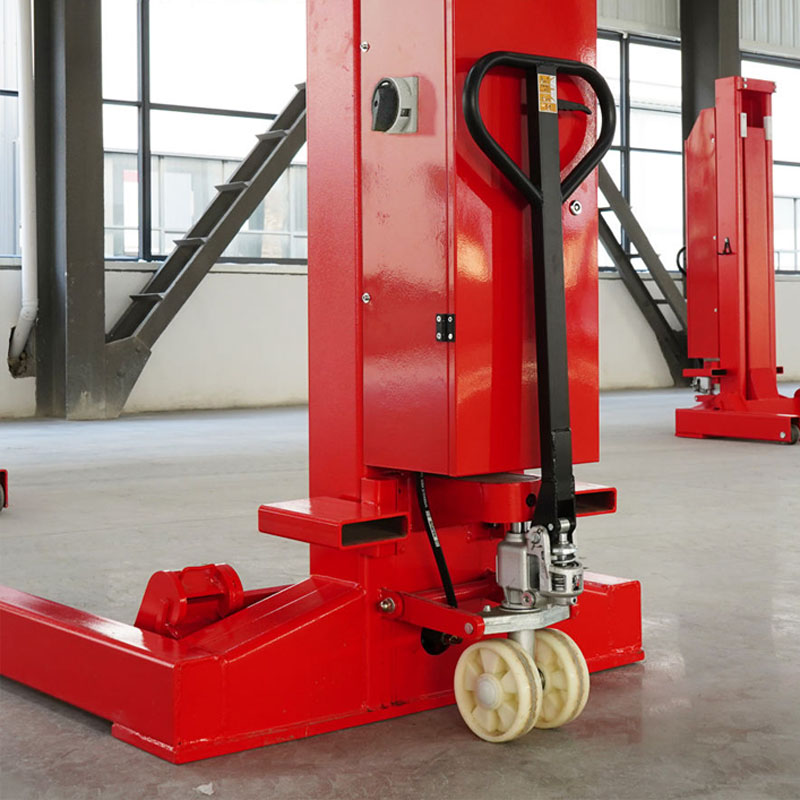

Independent mobile hydraulic columns
Each column features built-in guided lifting brackets and an independent hydraulic drive, allowing one-person operation with flexible positioning. -
Advanced safety and power protection
Supports 110V / 220V / 380V power supply with phase sequence and phase loss protection, ensuring safe and reliable operation. -
Heavy-duty performance with smart settings
Designed for vehicles up to 30 tons, with optional cross beams for maintenance and tire replacement, plus user-defined language, safety alerts, and maintenance reminders.
Application scenarios
-
Truck and bus maintenance workshops
Suitable for daily lifting, inspection, and repair of buses, trucks, and heavy-duty commercial vehicles. -
Commercial vehicle service centers
Ideal for tire replacement, brake service, suspension maintenance, and underbody inspection. -
Fleet maintenance facilities
Widely used by logistics companies, public transportation depots, and fleet service garages. -
Specialized vehicle maintenance
Designed for fire trucks, sanitation vehicles, military vehicles, and other customized heavy vehicles.
Contact us to get your quotation now.
