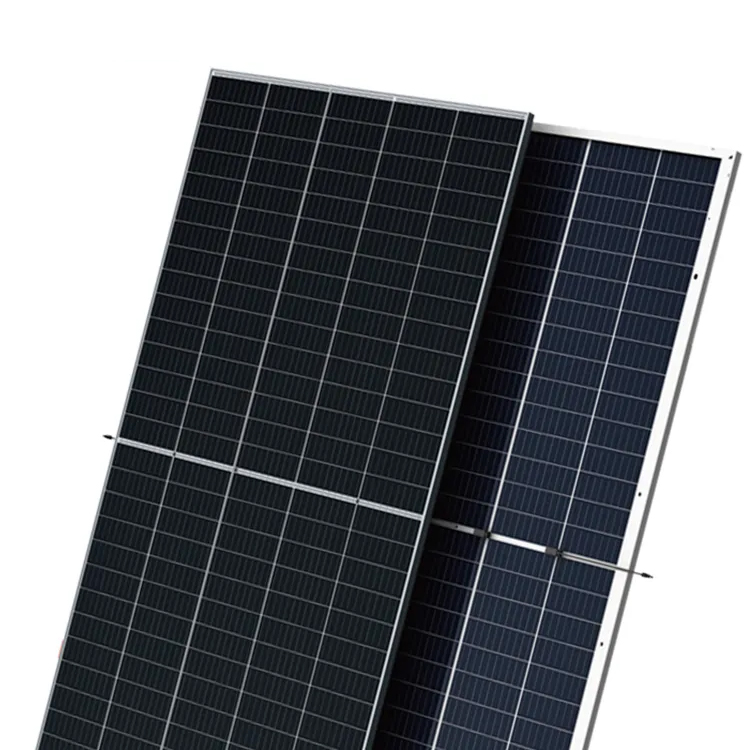

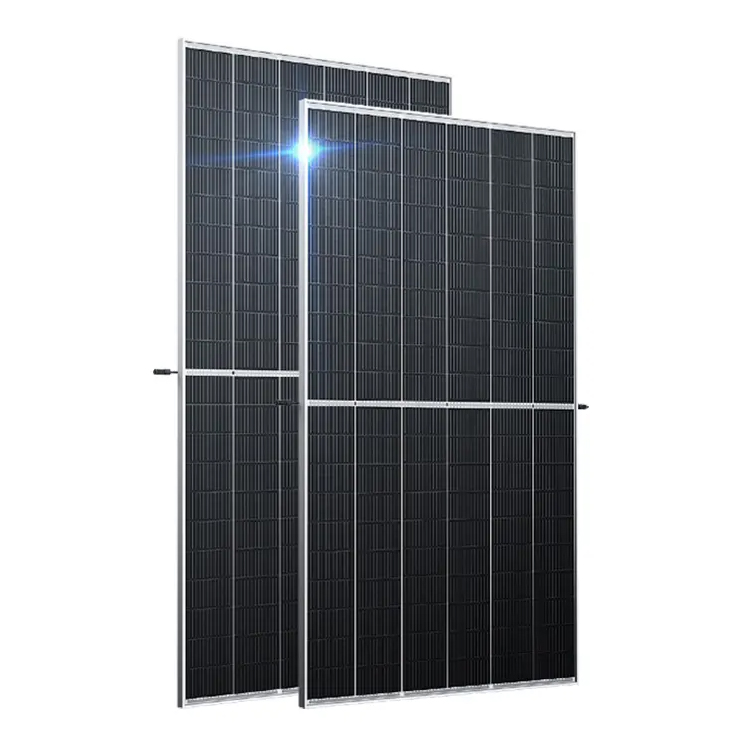

Trinasolar Solar 545w Trina Tsm Solar Energy Panel 540w 555w Half Cell Panel Solar Price
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time • Lowest guaranteed frst year and annual degradation; • Designed for compatibility with existing mainstream system components • Higher return on Investment
$196.00 – $202.00
CompareSolar Energy Panel High customer value
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed frst year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Higher return on Investment
High power up to 555W
• Up to 21.2% module efciency with high density interconnect technology
• Multi-busbar technology for better light trapping efect, lower series resistance and improved current collection
product prameters
|
MECHANICAL DATA
|
|
|
Solar Cells
|
Monocrystalline
|
|
No. of cells
|
110 cells
|
|
Module Dimensions
|
2384×1096×30 mm (93.86×43.15×1.18 inches)
|
|
Weight
|
32.3 kg (71.2 lb)
|
|
Glass
|
2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass
|
|
Encapsulant material
|
EVA/POE
|
|
Backsheet
|
White
|
|
Back Glass
|
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)
|
|
Frame
|
30mm(1.18 inches) Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 rated
|
|
Cable
|
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),Portrait: 280/280 mm(11.02/11.02 inches)
Length can be customized |
|
Connector
|
MC4 EVO2 / TS4*
|
|
PACKING CONFIGURATION
|
|
|
Module per pallet
|
36pcs/pallet
|
|
Module per 40’HQ container
|
720pcs/40hq
|
High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt,ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
|
TEMPERATURE RATINGS
|
|
|
NOCT(Nominal Operating Cell Temperature)
|
43°C (±2°C)
|
|
Temperature Coeffcient of PMAX
|
– 0.34%/°C
|
|
Temperature Coeffcient of VOC
|
– 0.25%/°C
|
|
Temperature Coeffcient of ISC
|
0.04%/°C
|
|
Operational Temperature
|
-40~+85ºC
|
|
Maximum System Voltage
|
1500V DC (IEC)
|
|
Max Series Fuse Rating
|
35A
|
High energy yield
• Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certifcations • The unique design
provides optimized energy production under inter-row shading conditions • Lower temperature coefcient (-0.34%) and operating
temperature
• Up to 25% additional power gain from back side depending on albedo
| Specification: | 540W, 545W, 555W |
|---|
