SS304 Brite Tank System for Brewery Beer Storage & Carbonation

SS304 Brite Tank System Product Introduction

The SS304 brite tank system for brewery beer storage and carbonation is a professional solution designed for the final stage of beer production. It is used for beer clarification, carbonation, stabilization and temporary storage before packaging. This system is widely applied in craft breweries, microbreweries and commercial beer production facilities requiring consistent beer quality and reliable process control.

In modern brewing, the brite tank plays a critical role in determining the final appearance, carbonation level and stability of beer. After fermentation, beer is transferred into the brite tank where it undergoes clarification, controlled carbonation and conditioning. This stage directly impacts foam stability, CO₂ content, clarity and overall product consistency.

Constructed from high-quality SS304 stainless steel, the tank ensures excellent corrosion resistance, hygienic performance and long service life. The system integrates a glycol cooling jacket, pressure control system and carbonation unit to provide precise control of temperature and pressure during beer storage and carbonation.

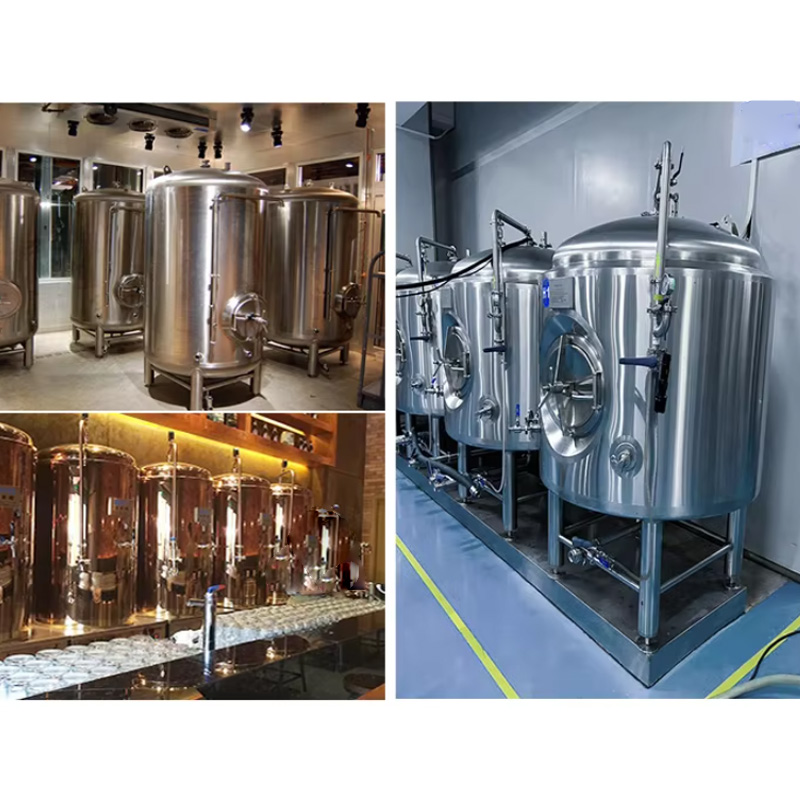

Compared with traditional storage tanks, this brite tank system offers improved process control, higher efficiency and better product consistency. It can be integrated into a complete brewery system including fermentation tanks, glycol cooling system, CIP cleaning system and packaging lines to form a turnkey brewery solution.

System Overview

This SS304 brite tank system is designed as a pressure-rated, temperature-controlled vessel used for beer storage and carbonation. It ensures that beer is maintained under optimal conditions before packaging.

The system combines temperature control, pressure management, hygienic design and carbonation technology to provide stable and repeatable results. It is suitable for producing various beer styles with consistent carbonation and clarity.

Production Process Description

1. Transfer from Fermentation Tank
Fermented beer is transferred into the brite tank under controlled conditions

2. Cooling and Temperature Stabilization
The glycol cooling jacket maintains a low and stable temperature

3. Clarification Process
Remaining yeast and particles settle, improving beer clarity

4. Carbonation Process
CO₂ is injected through a carbonation stone to achieve desired levels

5. Pressure Control
Tank pressure is maintained to ensure consistent carbonation and stability

6. Conditioning and Storage
Beer is stabilized and prepared for packaging

7. Transfer to Packaging Line
Beer is transferred to bottling, canning or kegging systems

Why This System Is Designed This Way

Beer storage and carbonation require precise pressure control, uniform temperature distribution and hygienic conditions to ensure product quality. Improper design can result in inconsistent carbonation, poor clarity and flavor instability.

This system is designed with a pressure-resistant structure to maintain stable internal pressure during carbonation. The glycol cooling jacket ensures efficient heat transfer and uniform temperature control, which is essential for preserving beer quality.

The carbonation system is engineered to maximize CO₂ absorption efficiency, ensuring stable and repeatable carbonation levels. The SS304 stainless steel construction provides a hygienic environment, preventing contamination and ensuring safe beer storage.

Each component is optimized to improve process efficiency, reduce product loss and maintain consistent brewing results.

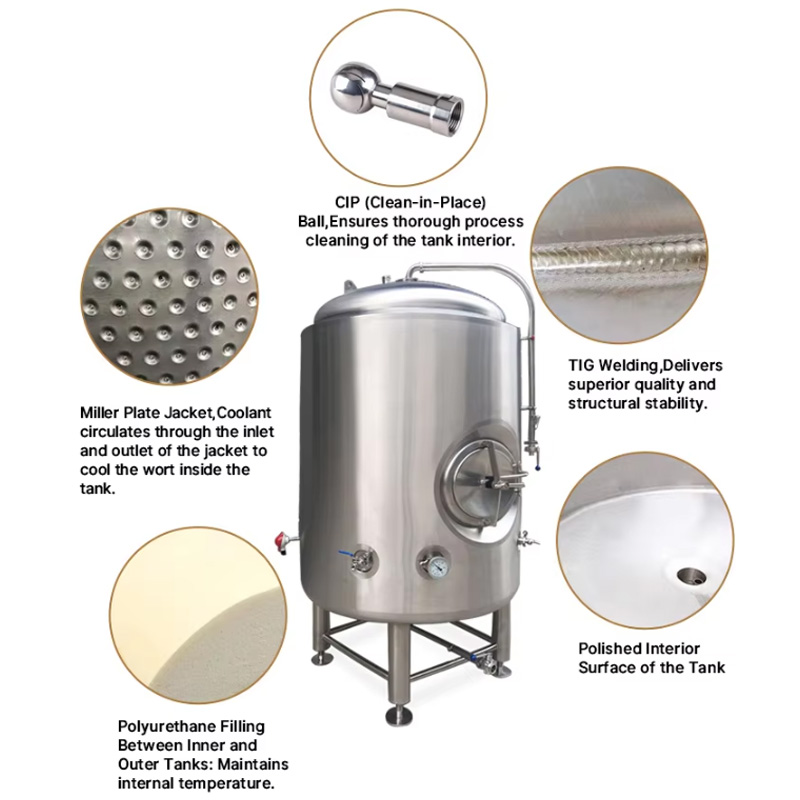

Solution Composition

. SS304 stainless steel brite tank
. Glycol cooling jacket system
. Pressure control system
. Carbonation stone system
. Temperature sensor and control unit
. CIP spray ball cleaning system
. Sampling valve
. Level indicator
. Safety valve and pressure relief system
. Stainless steel piping and fittings
. Optional control cabinet
. Optional platform and ladder

Technical Specifications

Tank capacity	Customizable (1000L–5000L typical)
Total volume	110%–130% of nominal volume
Material (inner shell)	SS304 stainless steel
Material (outer shell)	SS304 stainless steel
Inner thickness	3.0 mm
Outer thickness	2.0 mm
Insulation material	Polyurethane (PU)
Insulation thickness	80–100 mm
Cooling method	Glycol cooling jacket
Jacket type	Dimple plate / embossed
Design pressure	0.3 MPa
Working pressure	0.15–0.2 MPa
Test pressure	0.3–0.4 MPa
Temperature range	0–10°C
Surface finish (inner)	Ra ≤ 0.4 μm
Surface finish (outer)	Brushed
Carbonation system	CO₂ stone diffuser
Cleaning system	CIP spray ball
Pressure control	Pressure gauge + safety valve
Level indicator	Sight glass
Installation	Vertical
Control system	Optional PLC

Note:
All specifications can be customized based on brewery size, beer type and production requirements.



Main Features

. Designed for beer storage, carbonation and clarification in brewery systems

. SS304 stainless steel ensures hygienic and corrosion-resistant structure

. Glycol cooling jacket provides precise and stable temperature control

. Pressure-resistant tank design supports controlled carbonation process

. Carbonation system ensures efficient CO₂ absorption and stable results

. Smooth inner surface improves hygiene and cleaning efficiency

. CIP cleaning compatibility ensures easy maintenance

. Suitable for various beer types and production scales

. Stable operation supports continuous brewery production

. Modular design enables easy integration into complete systems

Key Engineering Advantages

Compared with conventional beer storage tanks, this system offers the following engineering advantages:

. Optimized pressure system ensures stable carbonation performance

. Efficient cooling jacket design provides uniform temperature distribution

. Advanced carbonation structure improves CO₂ absorption efficiency

. Hygienic stainless steel construction minimizes contamination risks

. Modular system allows flexible integration with brewing systems

. High durability ensures long-term industrial operation

Why Choose This Machine

. Complete brite tank system instead of simple storage tank

. Designed for professional brewery applications

. Improves beer clarity, carbonation and consistency

. Enhances production efficiency and process control

. Suitable for both craft and commercial breweries

. Easy integration with existing brewing systems

. Reliable and stable performance for long-term use

Application Scenarios

. Beer carbonation and storage before packaging

. Craft brewery production lines

. Commercial brewery conditioning processes

. Expansion of brewery capacity

. Beer clarification and stabilization

Industry Applications

Craft brewery industry for small and medium beer production

Microbrewery and brewpub systems requiring flexible production

Commercial beer manufacturing with large-scale production lines

Beverage processing industry involving carbonated drinks

Fermented beverage production requiring controlled storage

OEM brewing and contract beer production facilities

Export-oriented brewery systems requiring consistent quality

Industrial beverage storage and carbonation applications

FAQ

What is a brite tank used for in a brewery?
A brite tank is used for beer storage, clarification and carbonation after fermentation. It prepares the beer for packaging by stabilizing temperature, pressure and CO₂ levels.

What is the difference between a fermentation tank and a brite tank?
A fermentation tank is used for yeast fermentation, while a brite tank is used for conditioning, carbonation and storage of finished beer before packaging.

Does this brite tank system support carbonation?
Yes, the system is equipped with a carbonation stone and CO₂ injection system to ensure efficient and consistent carbonation performance.

How is temperature controlled in the brite tank?
The tank uses a glycol cooling jacket system to maintain stable and precise temperature control, which is essential for beer quality and carbonation stability.

What material is used for the tank?
The tank is made of SS304 stainless steel, providing excellent corrosion resistance, hygienic performance and long service life for brewery applications.

Can the tank handle pressure during carbonation?
Yes, the brite tank is designed as a pressure vessel, allowing safe and controlled pressure conditions during carbonation and storage.

Contact us today to get a customized SS304 brite tank system for brewery beer storage and carbonation. Our engineering team will provide professional brewery design, technical consultation and complete solution support tailored to your project.
