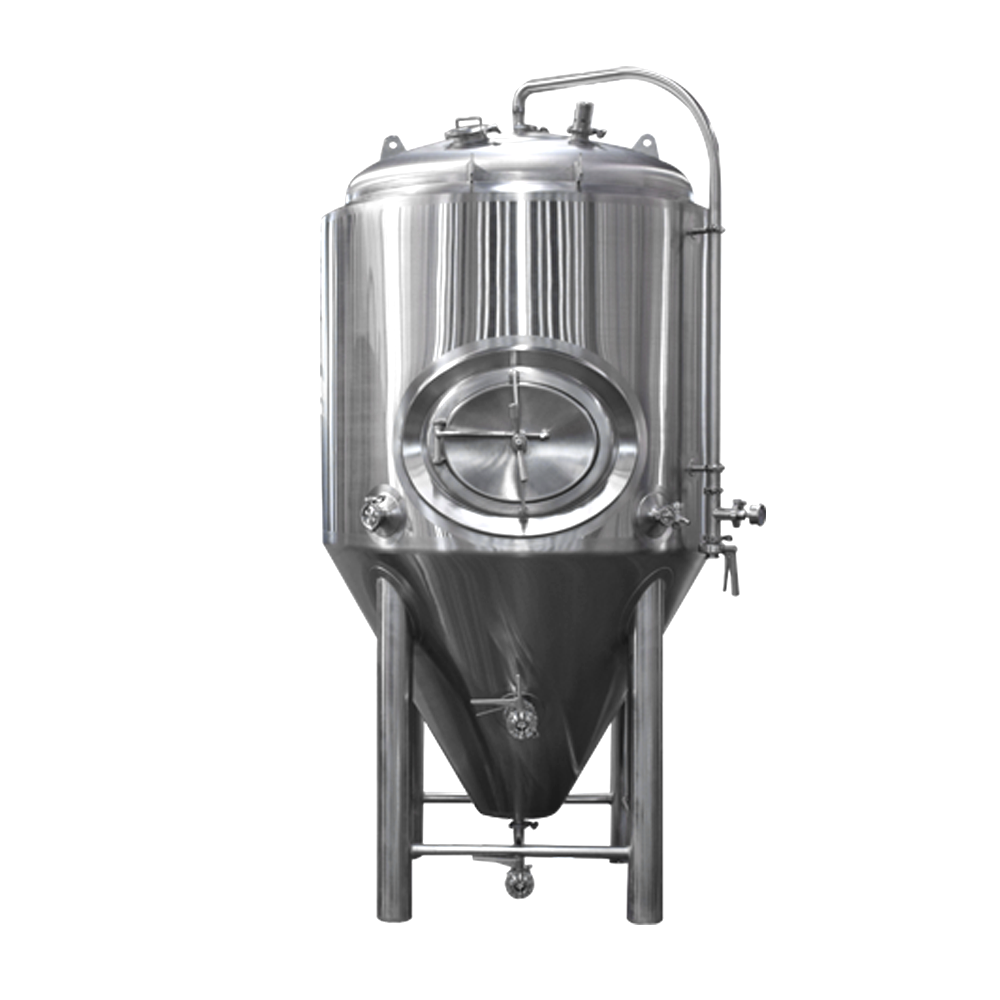

10BBL Pro Conical Fermenter 304 Stainless Steel

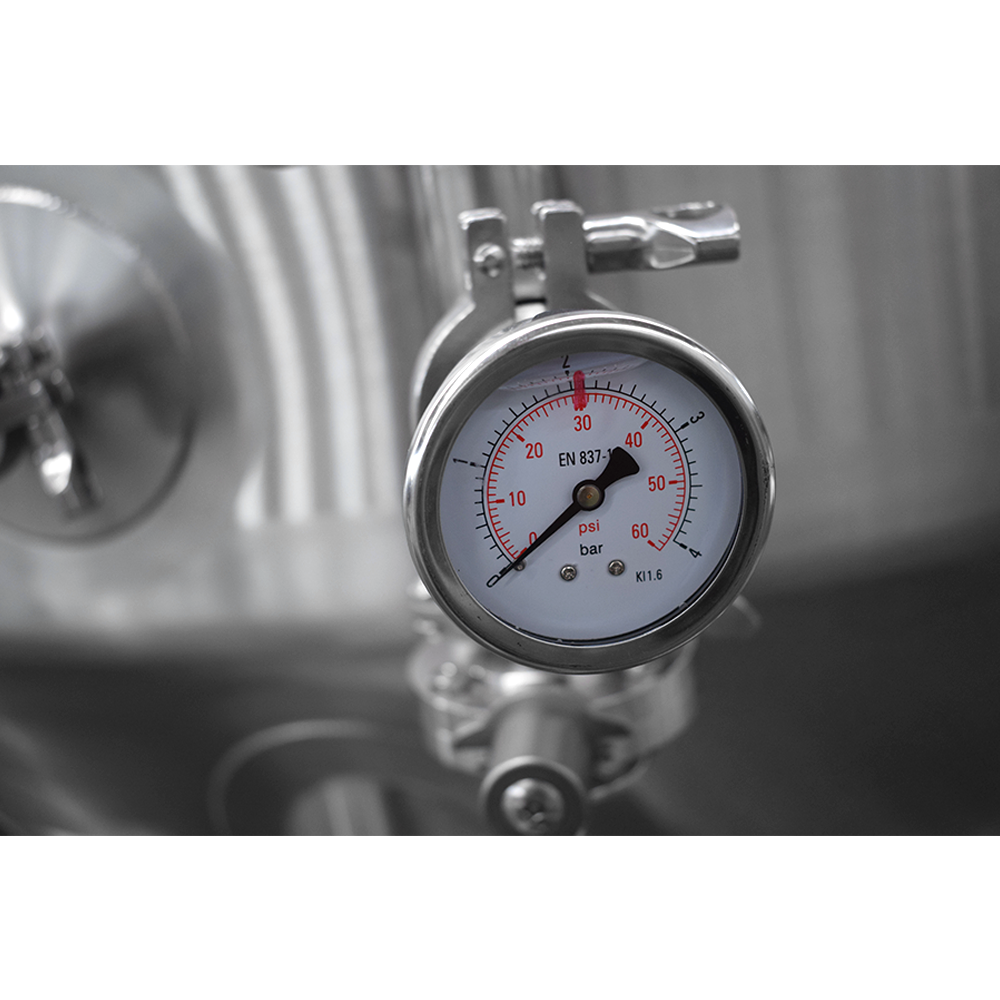

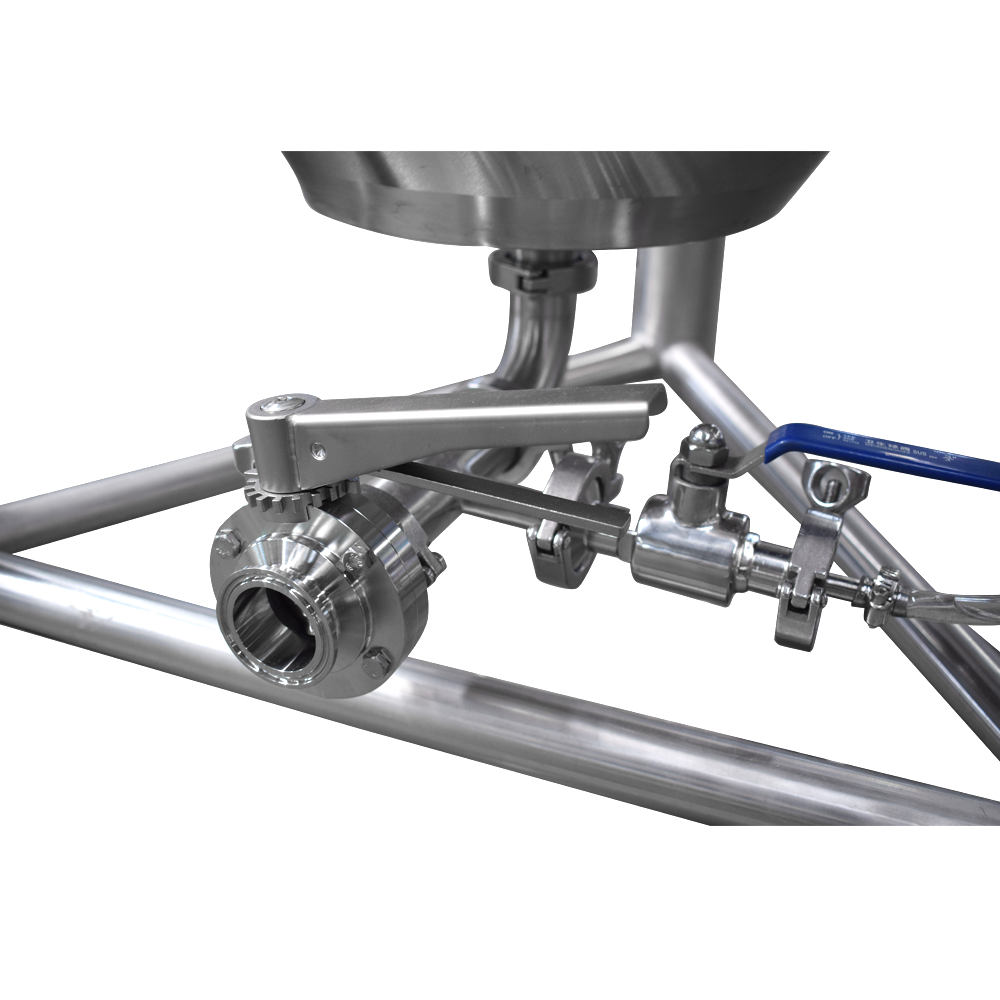

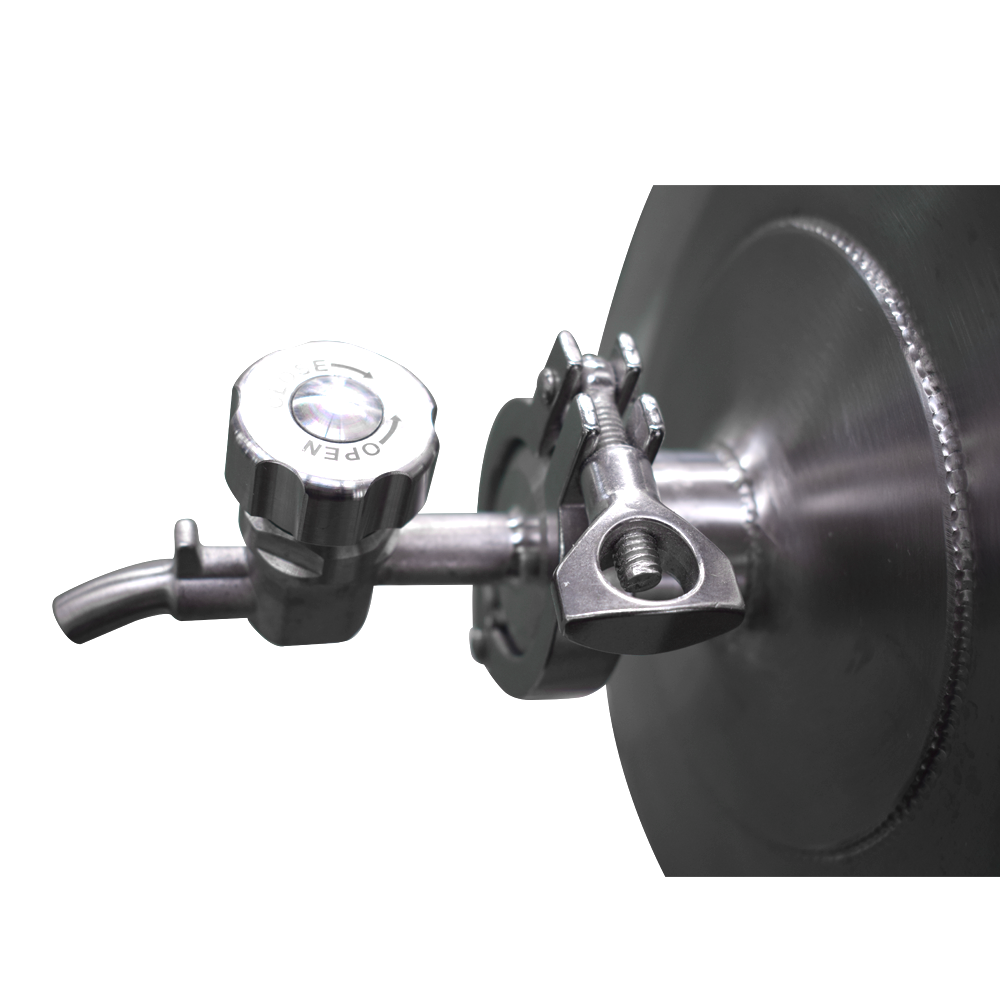

1. Butterfly valves, sample valve, PVRV, Clamps and gaskets, pressure gauge
2. Interior and exterior finish polished to a sanitary finish
3. Interior finish pickled and passivated
4. 60 degree cone bottom, with an average of 25% head space
5. Side manway door, shadowless
6. Dual zone dimple cooling jackets(3 or more on larger tanks)
$9,765.50
CompareStandard Stainless Steel Fermentation Vessel
Main Features:
• 304SSwith Dual Glycol Jacket and insulated with a minimum of 80mm Chloride free PUinsulation.
• Entirely304ss Butterfly Valves, 2″ Bottom port to facilitate yeast removal.
• Topmanways offer superior sanitation and ease to add fining and hops to thevessel.
• PillowPlate Glycol Jackets offer optimal media transfer. The interior of the shell iscoated with a Chloride resistant coating to resist corrosion from the interior.
• ‘OneTouch’ Racking Arm allows for easy racking arm rotation, without the need toloosen any clamps. Simply turn the handle and the racking arm rotates.
• AdjustableLevelers to provide a level tank regardless of floor slope.
• RespectivePSI Pressure Vacuum Relief Valve, 2″ Tri-Clamp Connection.
• CIPTank Spray Ball has spinner spray head assembly and exterior CIP arm.
• Dedicated1.5″ Blow Off Arm helps keeps CIP and PAM assembly clear of primaryfermentation blow off exhaust and residue.
Product Information
Technical Details
|
|
|
|
|
|
|
|
|
|
|
|
|
Related products
-
Beer Fermenters & Tanks
10 BBL Uni-tank Fermenter Jacketed & Insulatedx
Fully equipped pressure resistant, glycol jacketed, stainless steel cylindroconical vessel designed for fermentation, maturation and carbonisation of most types of beverages.
Unitank is a new model that has all the bells and whistles of our regular fermenters (Fermenter Tank CCV) but also comes with a more durable EPDM manhole gasket, solenoid valve for coolant, a larger 30% (instead of 25%) tank headspace and has the carbonation stone and sampling valve mounted on the cone.
SKU: n/a -
Beer Fermenters & Tanks
TOP SELLER!! 10 Barrel Fermenter Beer Tank Jacketed Unitank
Our jacketed conical fermenters provide optimum control of your fermentation process, and are designed to provide superior performance.Two zone glycol jackets keep the bottom jacket cold as beer is racked or served to save on energy costs.
SKU: n/a -
Beer Fermenters & Tanks

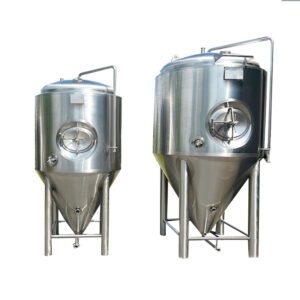

3 BBL Conical Jacketed Fermenter beer fermentation tanks Unitanks
• SUS 304 material insulated tank.
• 100% TIG welding with pure argon gas.
• 0.3 Mpa test pressure. 0.2 Mpa working pressure.
• Dimple cooling jacket, side and cone of the tank. NPT connection.
• Top relief valve(PVRV), Top dry hopping port.
• Sanitary side manway (top for option).
• Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm.
• 60 degree cone.carbonation stone,
• Level tube, CIP pipe, Blow Off pipe,
• 24V solenoid valve.Dial Thermometer. RTD sensor.
• Stainless steel 304 butterfly valve.(DIN, Tri-clamp)
• Lifting Lugs,Adjustable Feet,Ladder Hooks.
SKU: n/a
