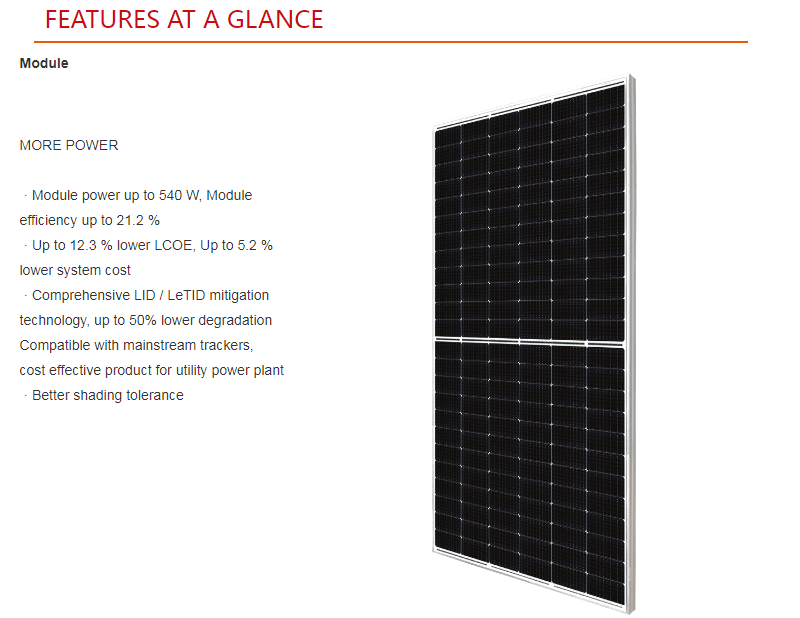

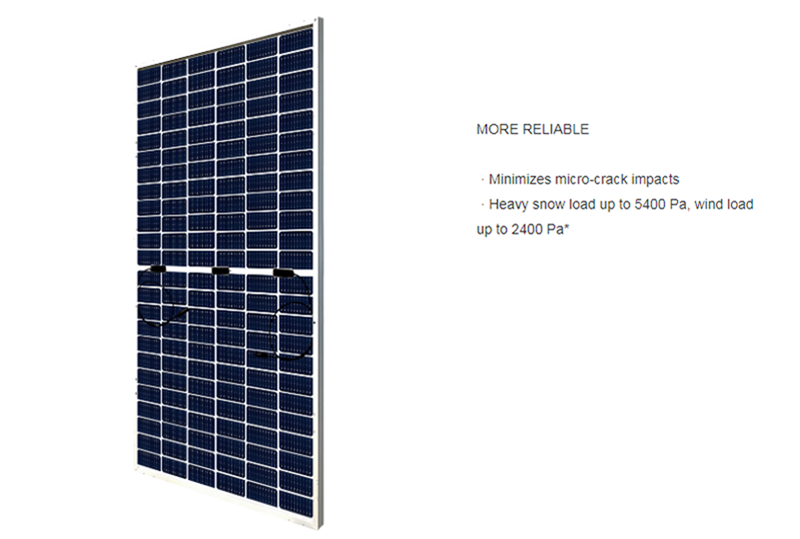

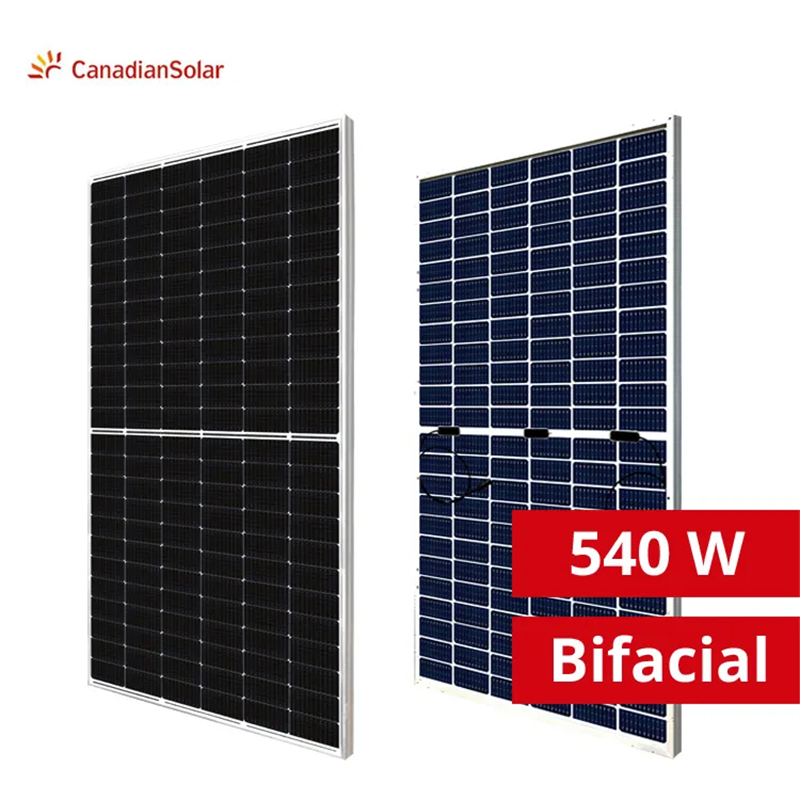

Monocrystalline Silicon Half Cell Pv Module 530w Bifacial Mono Solar Panel

Add to wishlist
Compare
Brand Name: CanadianSolar
Model Number: CS6W-MB-AG
Cell size: 182mmx182mm
Type: PERC, Half Cell, high power
Panel Dimensions:
 2266 x 1134 x 35 mm

$222.00 – $228.00

Compare
SOLAR PANEL

SOLAR PANEL  SPECIFICATIONS

MECHANICAL DATA
ELECTRICAL DATA
Cell Type
Mono-crystalline
Operating Temperature
-40°C ~ +85°C
Cell Arrangement
144 [2 x (12 x 6) ]
Max. System Voltage
1500 V (IEC/UL) or 1000 V (IEC/UL)
Dimensions
2266 ˣ 1134 ˣ 35 mm (89.2 ˣ 44.6 ˣ 1.38 in)
Module Fire Performance
or CLASS C (IEC61730)
Weight
32.2 kg (71.0 lbs)
Max. Series Fuse Rating
30 A
Front / Back Glass
2.0 mm heat strengthened glass
Application Classification
Class A
Frame
Anodized aluminium alloy
Power Tolerance
0 ~ + 10 W

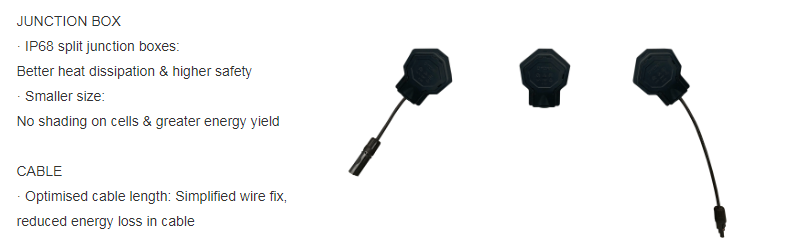

J-Box
IP68, 3 diodes
Cable
4.0 mm² (IEC), 12 AWG (UL)
TEMPERATURE CHARACTERISTICS
Cable Length (Including Connector)
410 mm (16.1 in) (+) / 290 mm (11.4
in) (-) or customized length*
Temperature Coefficient (Pmax)
-0.35 % / °C
Connector
T4 series or H4 UTX or MC4-EVO2
Temperature Coefficient (Voc)
-0.27 % / °C
Per Pallet
30 pieces
Temperature Coefficient (Isc)
0.05 % / °C
Per Container
(40′ HQ)600 pieces or 480 pieces (only for US)
Nominal Module Operating Temperature
41 ± 3°C
