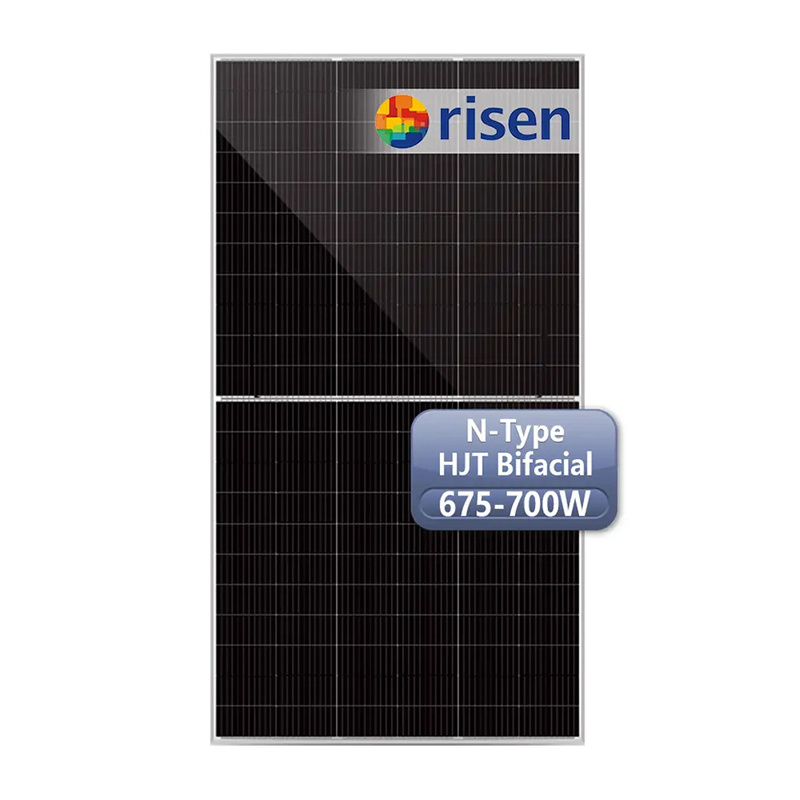

Risen Solar Photovoltaic Panels Bifacial Monocrystalline 675W 680W 690W 700W Solar Panel MOQ 10000Watt
KEY SALIENT FEATURES：
Global, Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing
n-type solar cell without LID caused by B-O
PID Resistance
Most stable Power Temperature Coefficient
Bifacial technology enables additional energy harvesting from rear side
$3,900.00
Compare
|
Solar Panel Model
|
RSM132-8-675-700BHDG
|
|||||
|
Rated Maximum Power(Pmax) [W]
|
675
|
680
|
685
|
690
|
695
|
700
|
|
Maximum Power Voltage(Vmp) [V]
|
41.41
|
41.48
|
41.56
|
41.63
|
41.71
|
41.78
|
|
Maximum Power Current(Imp) [A]
|
16.32
|
16.41
|
16.50
|
16.60
|
16.68
|
16.77
|
|
Open Circuit Voltage(Voc)[V]
|
49.38
|
49.47
|
49.56
|
49.65
|
49.74
|
49.83
|
|
Short Circuit Current(Isc) [A]
|
17.40
|
17.48
|
17.56
|
17.66
|
17.74
|
17.82
|
|
Module Efficiency [%]
|
21.7
|
21.9
|
22.1
|
22.2
|
22.4
|
22.5
|
|
Power Tolerance
|
0~+5W
|
|||||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.047%/℃
|
|||||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.220%/℃
|
|||||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.240%/℃
|
|||||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|||||
