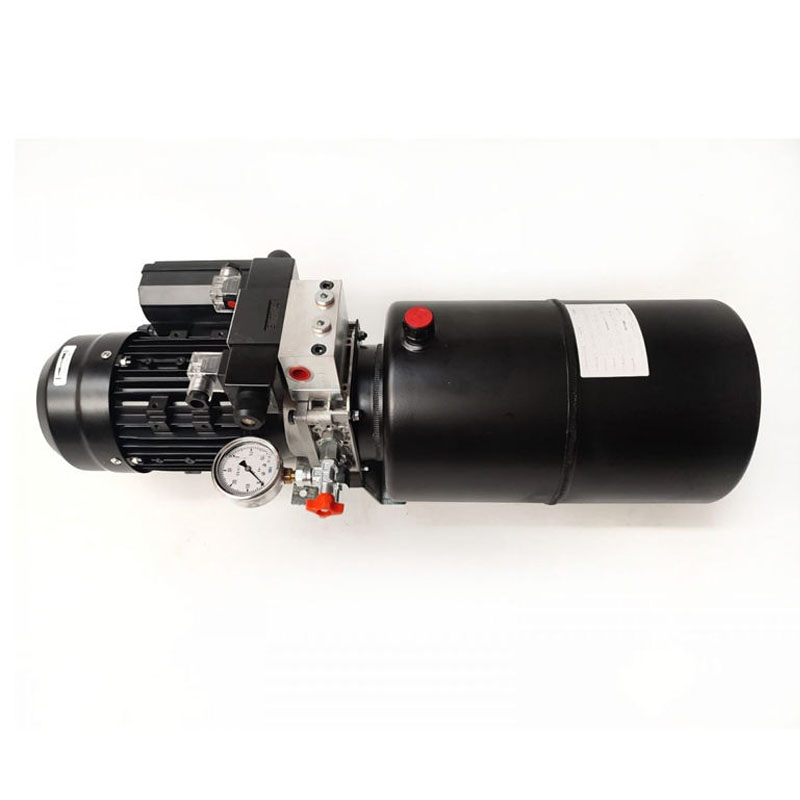

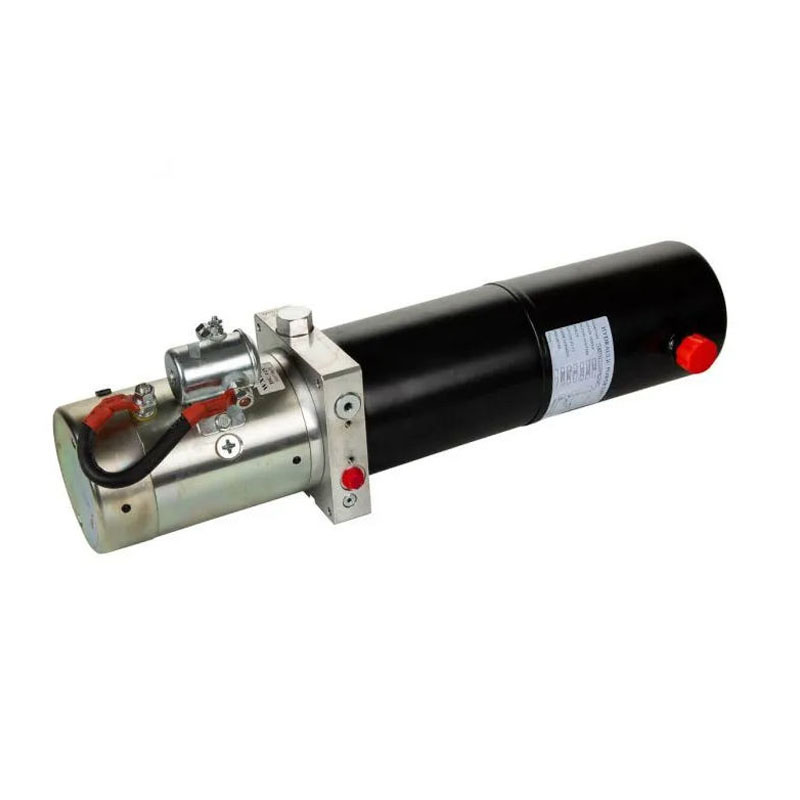

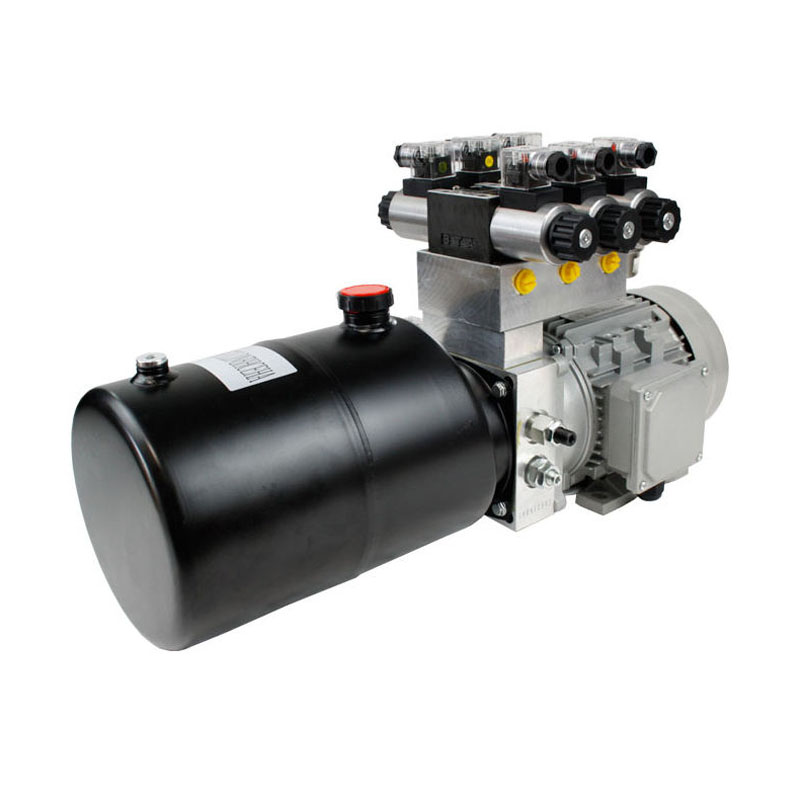

Reliable 1.6KW 12V Single Acting Hydraulic Pump for Trailer Lift
These 12V DC hydraulic power pack units provide compact, versatile, and efficient hydraulic power for a wide range of applications. Designed for mobile, remote, and industrial systems, they ensure reliable performance and easy integration with existing hydraulic circuits. With options for 12V or 24V DC input, these units are ideal for mobile machinery, construction and agricultural equipment, marine applications, automotive systems, and emergency or renewable energy applications where AC power is unavailable.
Compare
Product Description of Single Acting Hydraulic Pump
12V DC hydraulic power pack units deliver compact and efficient hydraulic power for mobile and remote applications. Compatible with existing hydraulic systems, they provide reliable performance for construction, agricultural, automotive, marine, and emergency machinery. With options for 12V or 24V DC input, these units are perfect where AC power is unavailable, supporting versatile and industrial hydraulic operations.
Product Parameter Table
| Parameter | Value |
| Voltage | 12V DC |
| Motor Power | 1.6kW |
| Displacement | 2.1cc/r |
| Working Pressure | 3000PSI |
| Relief Valve Setting | 22MPa |
| Remote Control Length | 4m |
| Oil Tank Capacity | 4-10L (Plastic) |
| Max. Operating Temperature | 80°C |
| Dimensions | 409*172*207mm |
| Net Weight | 15 |
Main features
-
Versatile voltage options with 12V and 24V DC for diverse power needs
-
Compact, space-saving design for easy installation in confined areas
-
High efficiency and optimized hydraulic performance for reliable operation
-
Durable construction with high-quality materials for harsh environments
-
Integrated oil reservoir with easy fluid management for maintenance
-
Built-in safety and remote control features for secure, convenient operation
Application scenarios
-
Mobile Equipment: Forklifts, trailers, lifts, and other mobile hydraulic systems
-
Agricultural Machinery: Sprayers, harvesters, and farm equipment hydraulic operations
-
Construction Machinery: Mini-excavators, skid-steer loaders, and other construction equipment
-
Marine and Automotive: Boats, dock equipment, car lifts, and tow trucks
-
Emergency, Renewable, and Remote Applications: Rescue vehicles, wind turbines, solar tracking, and off-grid hydraulic systems
Contact us to get your quotation now.
