Pressure Transmitters

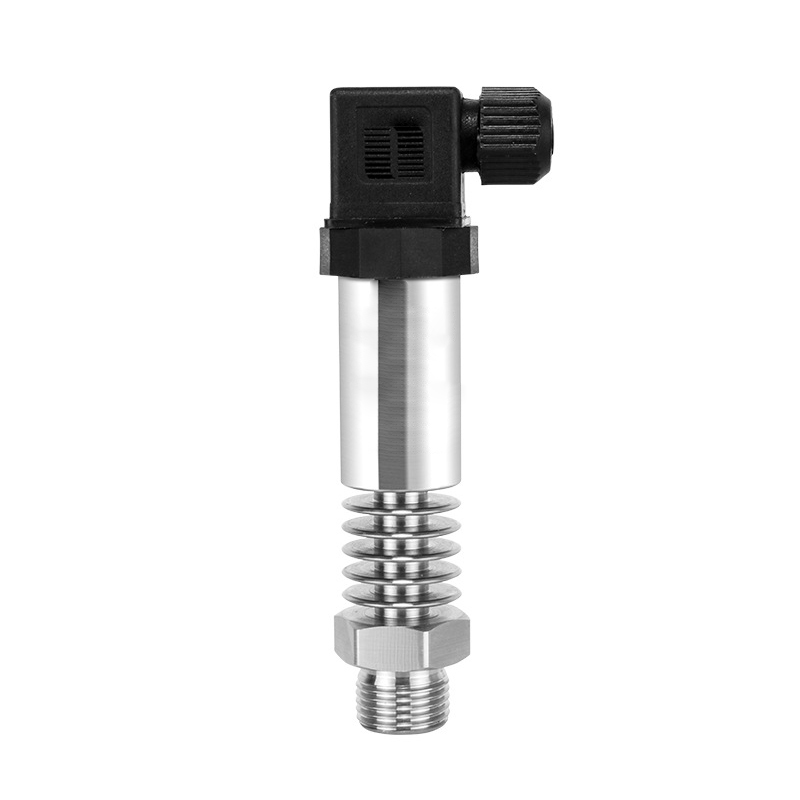

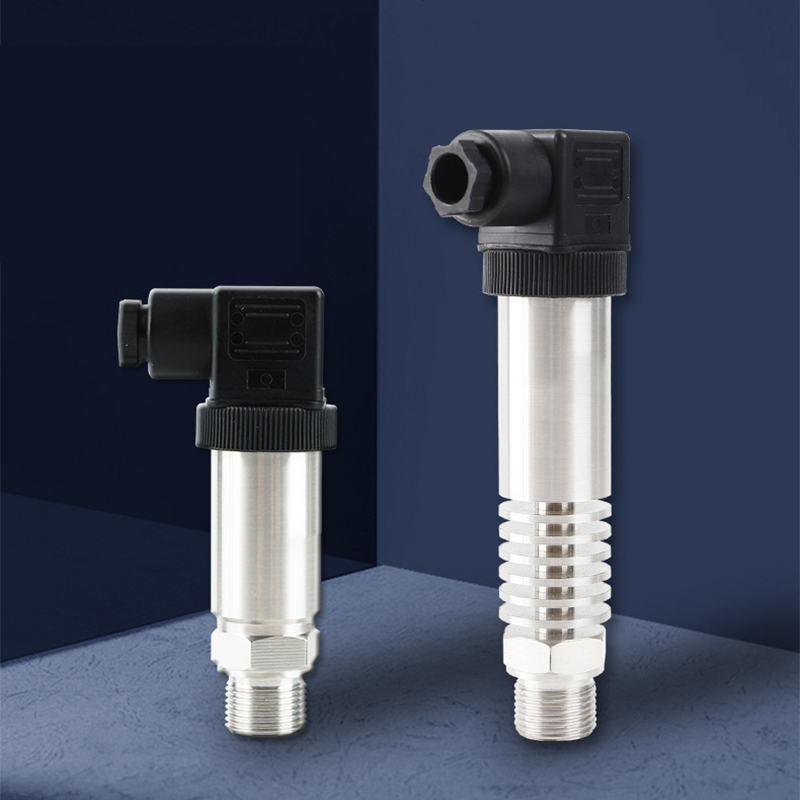

Pressure Transmitter High Temperature Type -20°C～150°C Pressure Transmitter 4-20mA Pressure Transducer Oil Pressure Transducer
- Adopt 316L stainless steel diaphragm and full 316 stainless steel shell. Standard 316L stainless steel, compatible with a variety of liquids and gases.
- The output is stable and the accuracy is high. Low voltage power supply and low power consumption, the digital output can be powered by 3.6V or 5V. 4-20mA can be powered by 7V.
- Wide working temperature range, -30~125ºC working temperature range.
- Wide range of applications: Different accessories can be used to perform functions for different tasks, which can effectively improve work efficiency and completion results.
NOTE: Prices may vary by product model and material.
$159.00
CompareApplicable scope of Pressure Transmitter

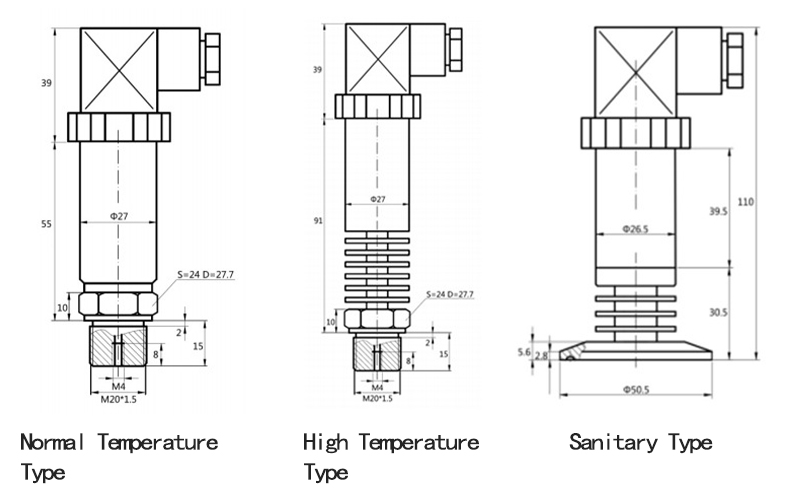

- Normal temperature type: measurement of medium below 80°C
- High temperature type: the medium temperature is above 80°C for a long time
- Hygienic type: hygienic type or suspending viscous medium
The measured pressure ranges from vacuum to 60MPA. You can choose the appropriate range according to the actual pressure on site.
- -100KPa～0: vacuum pressure
- 0～100KPa: air pressure test
- 100KPa～2.5MPa: water supply pressure
- 2.5MPa～10MPa: hydraulic oil
- 10MPa～60MPa: large range hydraulic pressure
| Measuring range | -1～0～1.6….1000bar |
| Pressure form | Gauge pressure/negative pressure |
| Medium temperature | -20°C～85°C (standard) -20°C～150°C (high temperature) |
| Signal output | 4～20mA/1～5V (two-wire system), RS485 communication interface (Modbus), HART communication |
| Repeatability | 5‰F.S; 2.5‰F.S; 1‰F.S |
| Accuracy | 5‰F.S; 2.5‰F.S; 1‰F.S |
| Stability | ≤1‰F.S/year |
| Process connection | Stainless steel, threaded or other |
| Supply voltage | 12…30V DC |
| Response time | ＜1ms |
| Overload capacity | 2000‰ |
| Diaphragm material | 316L |
| Protection class | IP65 |
| Ambient temperature | -20°C～85°C |
| Ambient humidity | 50‰～950‰ |
Based on 0 reviews
Be the first to review “Pressure Transmitter High Temperature Type -20°C～150°C Pressure Transmitter 4-20mA Pressure Transducer Oil Pressure Transducer”
Related products
-
Pressure Transmitters

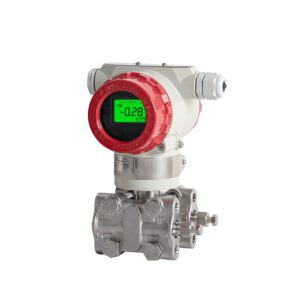

Smart Differential Pressure Sensor Monocrystalline Silicon Explosion-Proof Differential Pressure Transmitter for Food Pharmaceutical Industry
Pressure TransmittersSmart Differential Pressure Sensor Monocrystalline Silicon Explosion-Proof Differential Pressure Transmitter for Food Pharmaceutical Industry
Applicable to various industries. For example:
- Precision equipment. Used in chemical production, testing and testing, etc.
- Industrial pipes. Used in air conditioners, hydropower plants, etc.
- Food pharmacy. Used in sugar, pharmaceuticals, various beverages, etc.
- Water tank oil tank. Used for building automation, constant pressure water supply, environmental protection, etc.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters

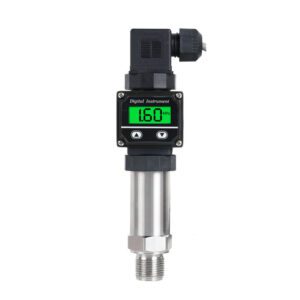

Digital Display Pressure Transmitter Intelligent High Temperature High Precision 5% Diffused Silicon Pressure Transducer 4-20mA
Pressure TransmittersDigital Display Pressure Transmitter Intelligent High Temperature High Precision 5% Diffused Silicon Pressure Transducer 4-20mA
- The pressure transmitter has IP65 high protective housing, which is not afraid of harsh sites. Not afraid of dust intrusion, low pressure spray at any Angle has no effect.
- The pressure transmitter is paired with the pressure recorder to record the trend of the field pressure data in real time and easily analyze the field production status.
- The pressure transmitter is combined with the steam flow meter to accurately measure the pressure change in the pipeline for accurate steam flow measurement.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters
Pressure Transmitter 4-20mA Output G1/4″ Silicon Pressure Transmitter Transducer for Water Gas Oil Diffused Silicon Pressure Transmitter
Pressure TransmittersPressure Transmitter 4-20mA Output G1/4″ Silicon Pressure Transmitter Transducer for Water Gas Oil Diffused Silicon Pressure Transmitter
- Upgraded protective connectors, flame retardant and pressure resistant, IP65 waterproof and dustproof.
- Corrosion-resistant stainless steel shell, high toughness, high fatigue strength.
- High-standard pressure-resistant structure design, 150% FS overload pressure, longer life.
- The whole machine has passed the electromagnetic compatibility test.
- The material is anti-interference and aging-resistant, and a 2-meter lead wire (customizable extension) is provided for free.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters
Digital Display Pressure Transmitter 4-20mA Remote Gas Oil Pressure Hydraulic Pressure Digital Pressure Transducer High Temperature
Pressure TransmittersDigital Display Pressure Transmitter 4-20mA Remote Gas Oil Pressure Hydraulic Pressure Digital Pressure Transducer High Temperature
- One-piece stainless steel design, high-resistant and durable shell.
- High-definition LCD display, comfortable observation experience.
- 4mm standard pressure hole, scientific design is more anti-interference.
- Standard Hessmann connector, stable connection, precise transmission.
- Waterproof and dustproof, IP65 level of high protection.
- This pressure transmitter has the functions of overpressure protection and temperature compensation.
NOTE: Prices may vary by product model and material.
SKU: n/a
