Pineapple Pulp Machine Price for Puree Processing Line

Product introduction of Pineapple Pulp Machine

Pineapple Juice Processing Line is a fully automatic industrial system designed to convert fresh pineapple into juice, pulp, puree, and beverage products with high efficiency and consistent quality.

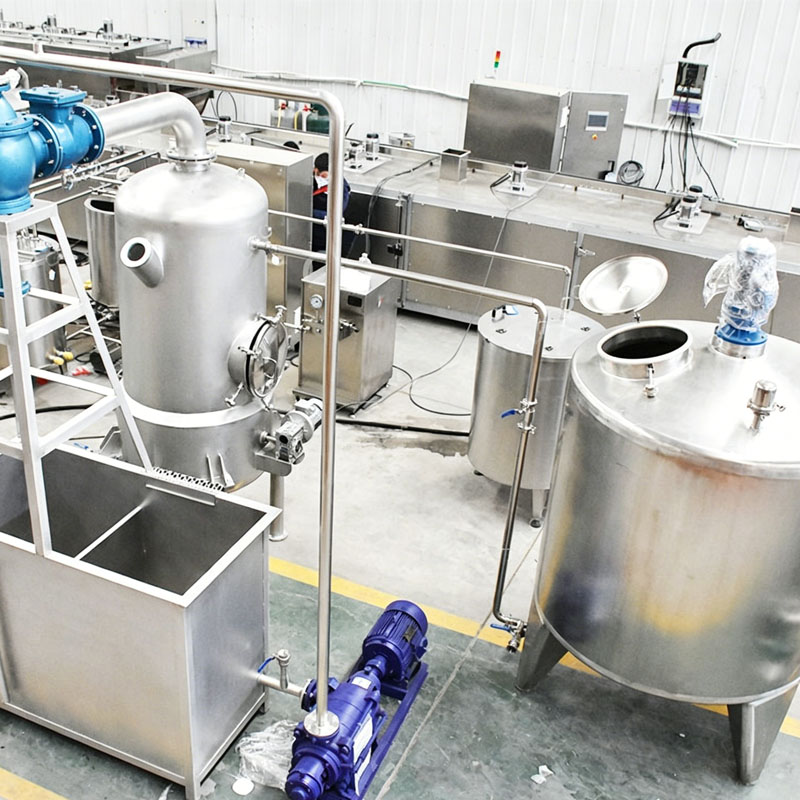

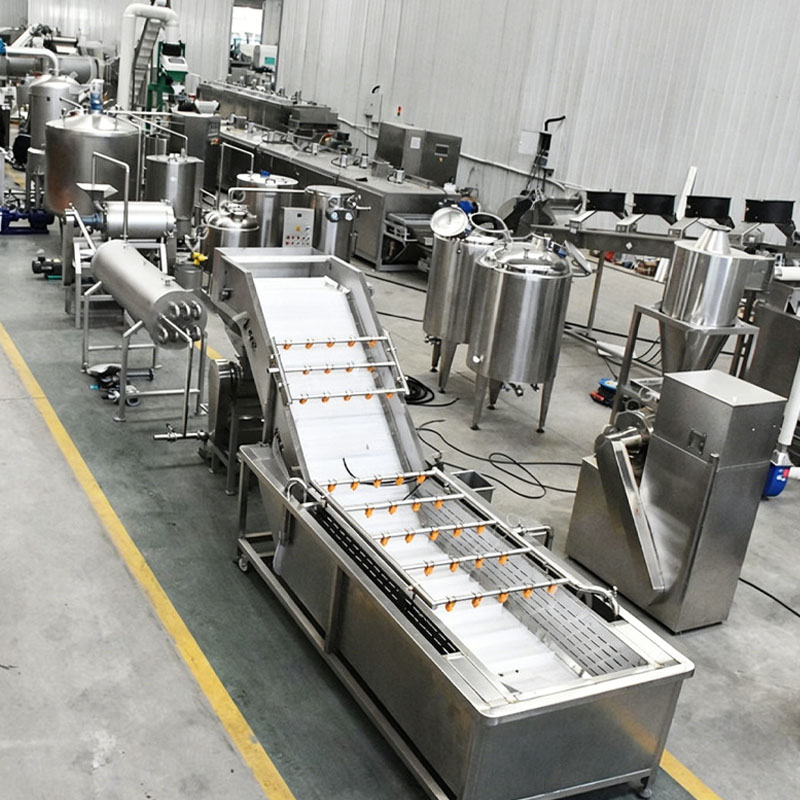

This integrated processing line includes washing, peeling, pulping, mixing, homogenization, sterilization, and filling modules. It ensures high yield, stable taste, and long shelf life, making it ideal for beverage factories and large-scale fruit processing plants.

Working principle

Step 1: Pineapples are lifted and cleaned using high-pressure surf washing system
Step 2: Peeling, destoning, and pulping are completed in one integrated machine
Step 3: Pulp is transferred into mixing tank for juice formulation
Step 4: Homogenizer refines particle size under high pressure
Step 5: Juice is sterilized to eliminate bacteria and enzymes

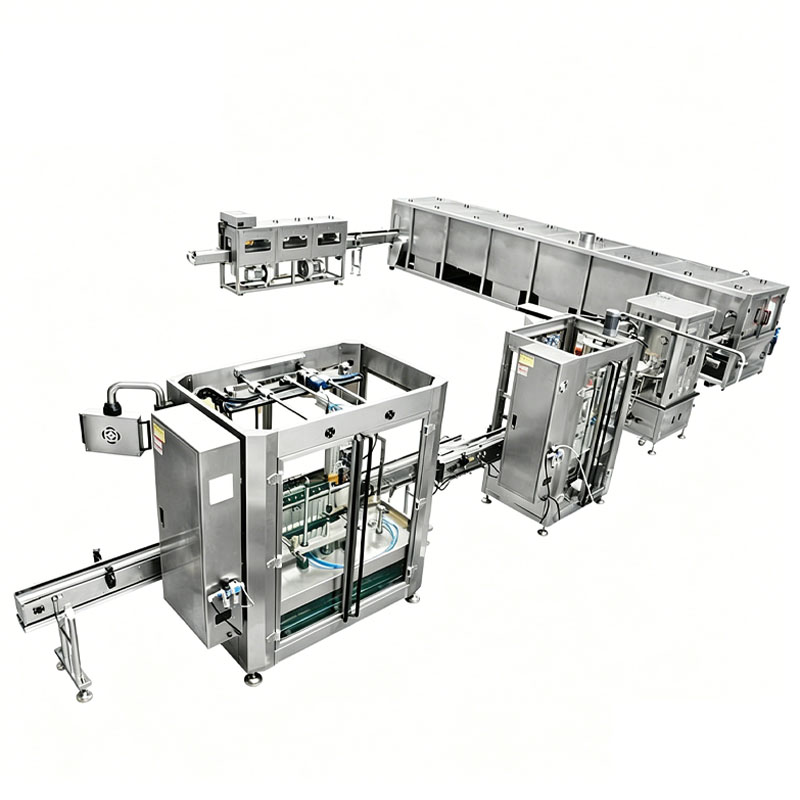

Step 6: Sterilized juice enters filling and packaging system
Step 7: Final products are packed into bottles or containers

Product Parameter Table

Product Name	Power(kw)	Capacity	Dimension(mm)	Function
Bubble cleaning	2.8	2 t/h	2500×1100×1800	Hoist passive wheel with a tension device
Sorting machine	0.75	2 t/h	3500×800×900	Both sides with waste collection bucket
Elevator	0.75	2 t/h		To enhance transportation for tomato
Crusher pump	3	0.5-2 m³/h		Pressure:≥4.5 Mpa;
Column tubular		2 t/h	1405×615×1250	Preheating
Beater machine	4	1-1.5 t/h	1450×770×1530	Automatic separation of slurry residue
Temporary		1000 L		Interim storage
Beverage pump	0.75		350×265×320	For juice fluid transport;
Colloid mil	11	1-2 t/h	990×650×1340	Used for fruit pulp grinding refinement
Storage tank		1000 L		Interim storage
Mixing tank	0.75	0.1-0.2 t/h	500 L	For fruit pulp ingredients,add sugar and other accessores
Sugar process	4.75	100 L	1200×1200×2100	Temperature≤100℃
Homogenizer	11	1000 L/h	1300×820×1200
Vacuum	2.05	100 L/h	800×600×2000	The centrifugation film speed:100-500r/min
Column tubular		1 t/h	1220×440×1080	The discharge temperature:90-95℃
Aseptic product			Ø38 mm	Single closed tank
Control cabinet			Diameter:φ50	With leakage protection and overload protection

COMPARISON MODULE

Result: Automated system dramatically improves yield, hygiene, and commercial value.

Main Features

• High capacity up to 1000kg/h for industrial production
• Integrated peeling, destoning, and pulping system
• High pulp recovery rate up to 99.5%
• Automatic mixing tank ensures uniform juice blending
• Homogenizer reduces particle size for smooth texture
• High-pressure sterilization ensures long shelf life
• Fully automatic filling and packing system
• Food-grade stainless steel structure for hygiene safety
• Continuous production line reduces labor cost
• Suitable for pineapple juice, pulp, and puree processing

Application Scenarios

• For beverage factories → unstable manual production → ensures continuous automated juice processing
• For fruit processing plants → low pulp yield → improves recovery rate up to 99.5%
• For juice manufacturers → inconsistent taste → ensures uniform blending and quality
• For large-scale production → high labor cost → reduces manpower with automation
• For export juice industry → short shelf life → improves sterilization and storage stability
• For pineapple farms → raw fruit waste → converts into high-value juice products

WHY CHOOSE THIS SYSTEM

• Complete pineapple juice and pulp production solution
• High-efficiency integrated processing line
• Maximum pulp recovery with minimal waste
• Fully automatic PLC control system
• Hygienic stainless steel food-grade design
• Stable performance for 24/7 industrial operation
• Supports juice, pulp, puree, and beverage production
• Reduces labor cost and increases productivity

FAQ

What is pineapple juice processing line used for

It is used to produce juice, pulp, puree, and beverage products from fresh pineapple.

How does pineapple juice production line work

It integrates washing, pulping, homogenizing, sterilizing, and filling processes.

What is the capacity of pineapple juice processing system

It can range from small scale to industrial capacity up to 1000kg/h or more.

Can this system produce both juice and puree

Yes, it supports juice, pulp, puree, and beverage production.

Is pineapple juice processing line fully automatic

Yes, it uses PLC control for automated production and monitoring.

What packaging options are supported

It supports bottles, cans, aseptic bags, and pouches.
