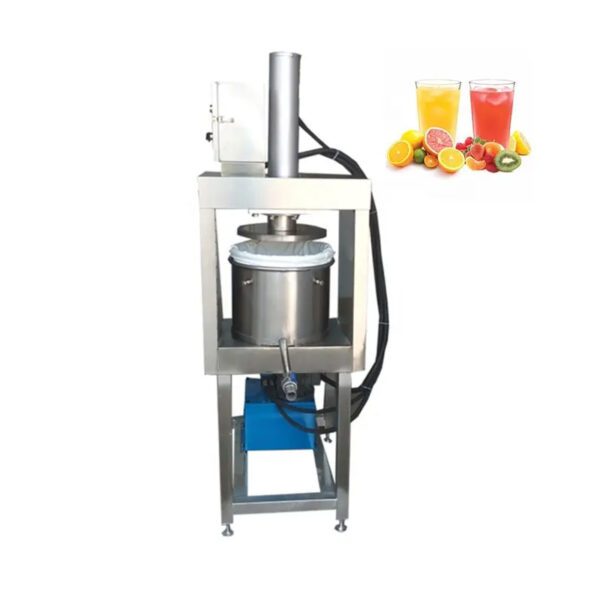

30L 300L Hydraulic Stainless Steel Grape Wine Press Machine Fruit Juice Making Machine,Small commercial press rice wine wine press filter equipment
The machine adopts the hydraulic principle. Firstly, put the fruits and vegetables into the filter bag, and then start the machine. The machine will press the filter bag, leave the residue in the filter bag, and the juice flows out of the outer barrel for collection.
It uses hydraulic pressure to squeeze on the fruit and vegetable, high efficiency, save time and labor.
$2,400.00
Compare|
Model
|
JU-30L
|
|
Voltage
|
380V 50HZ
|
|
Power
|
1.5kw
|
|
Application
|
Squeeze fruit vegetable juice
|
|
Material
|
304 Stainless Steel
|
|
Barrel volume
|
30L
|
|
Barrel size
|
360*300mm
|
|
Type
|
Hydraulic pressing
|
|
Hydraulic pressure
|
10 ton
|
|
Machine size
|
755*650*1900mm
|
|
Machine weight
|
200kg
|
|
Related machine
|
Fruit crusher machine
|
|
Model
|
Inner barrel size
|
Hydraulic pressure
|
Power
|
Discharge type (Automatic discharge or not)
|
Machine size
|
|
JU-50L
|
Φ400*500mm
|
40 ton
|
4kw
|
Not automatic
|
1200*700*1800mm
|
|
JU-100L
|
Φ500*500mm
|
40 ton
|
4kw
|
Not automatic
|
1300*750*1800mm
|
|
JU-150L
|
Φ600*600mm
|
60 ton
|
4kw
|
Not automatic /Automatic
/Automatic(Double inner barrels)
|
1600*850*2050mm /1900*850*2050mm
/3100*850*2050mm
|
|
JU-200L
|
Φ650*700mm
|
60 ton
|
4kw
|
Not automatic /Automatic
/Automatic(Double inner barrels) |
1600*900*2250mm /1900*900*2250mm
/3200×900×2250mm
|
|
JU-300L
|
Φ700*750mm
|
60 ton
|
4kw
|
Not automatic /Automatic
/Automatic(Double inner barrels) |
1700×950×2300mm /1900×950×2300mm
/3200×950×2300mm
|
|
JU-400L
|
Φ800*800mm
|
60 ton
|
4kw
|
Not automatic /Automatic
/Automatic(Double inner barrels) |
1800×1050×2400mm /2000×1050×2400mm
/3400×1050×2400mm
|
|
JU-500L
|
Φ850*900mm
|
60 ton
|
4kw
|
Not automatic /Automatic
/Automatic(Double inner barrels) |
2000×1100×2600mm /2200×1100×2600mm
/3600×1100×2600mm
|
Based on 0 reviews
Be the first to review “30L 300L Hydraulic Stainless Steel Grape Wine Press Machine Fruit Juice Making Machine,Small commercial press rice wine wine press filter equipment”
Related products
-
Fruit Press Machine
Hot selling apple pear pineapple carrot press machine, fruit and vegetable juicer, screw juicer, commercial fruit and vegetable press
Fruit Press MachineHot selling apple pear pineapple carrot press machine, fruit and vegetable juicer, screw juicer, commercial fruit and vegetable press
* Made of 304 stainless steel , which is very health and safe;
* Screw push extrusion, fully automatic juicing and slag removal of berries, kernels and vegetables;
* The juicer extractor machine is easy to clean, maintain and operate;
* The juicer extractor machine is widely used for kinds of fruits and vegetables, such as the carrot, celery, spinach, apple, pomegranate and so on;
* It is widely used in the fruit processing industry, food and beverage processing factory.SKU: n/a -
Fruit Press Machine

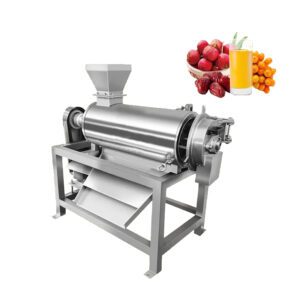

Industrial Fruit Juice Making Machine Industrial Cold screw Press pressing Juicer Extractor extracting Machine
