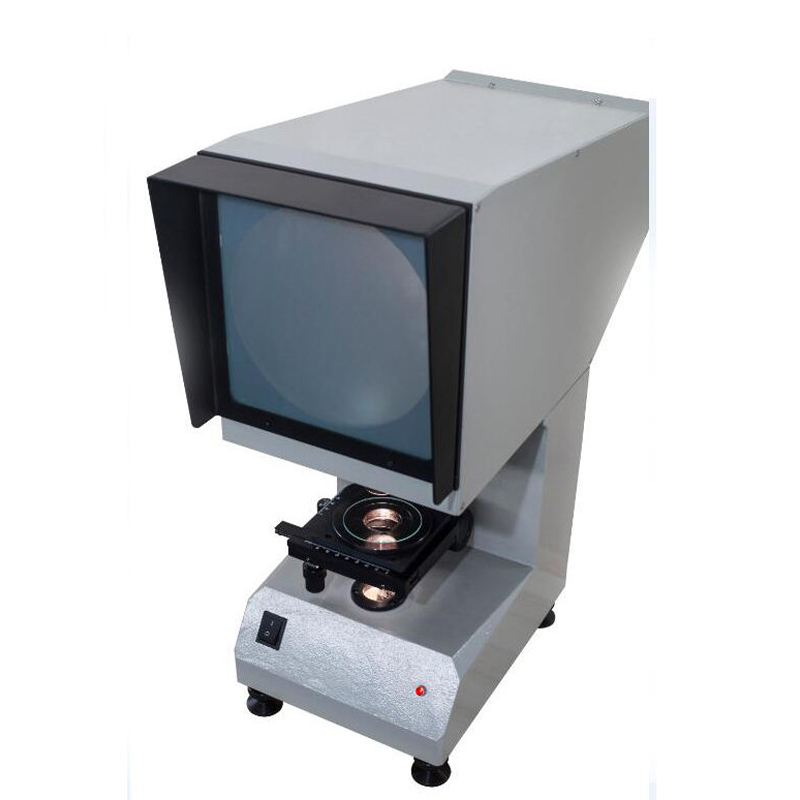

Optical Profile Projector for Impact Specimen Notch Measurement
The Impact Specimen Notch Optical Profile Projector is a specialized precision instrument designed exclusively for the detection and measurement of notches on impact test specimens, ensuring the accuracy and compliance of specimen geometry critical to reliable impact testing. Equipped with a 2.5X objective lens for clear optical magnification and a 12V100W tungsten-halogen lamp (complemented by a standard light bulb) for stable illumination, it projects detailed notch contours onto a 200mm-diameter screen, enabling intuitive and precise dimensional checks.
Its practical structural design includes a worktable with 0-360 degrees revolving capability (facilitating multi-angle inspection), a compact outline size of 515224603mm, and a lightweight build of 18kg, making it easy to integrate into labs or production quality control areas. Powered by 220V 50Hz, it meets common industrial power requirements, while supporting OEM, ODM, and OBM customization to align with diverse user needs—all backed by a 1-year warranty for post-purchase assurance.
$5,800.00
CompareParameter Table：Optical Profile Projector
|
Category
|
Details
|
|
Product Name
|
Impact Specimen Notch Optical Profile Projector
|
|
Customized Support
|
OEM, ODM, OBM
|
|
Illuminant
|
Light bulb; Tungsten-halogen lamp (12V100W)
|
|
Outline Size
|
515224603mm
|
|
Magnification of the Object Lens
|
2.5X
|
|
Diameter of the Screen
|
200mm
|
|
Supply Power
|
220V 50Hz
|
|
Scope of Revolving of the Worktable
|
0 degrees – 360 degrees
|
|
Weight
|
18kg
|
Application：
- Dimensional inspection of notches on metal impact test specimens
- Quality control for impact specimen notch geometry in machinery manufacturing
- Compliance verification of impact specimen notches with ASTM/ISO standards
- Notch precision detection of new material impact specimens in R&D labs
- Notch contour measurement of impact test specimens in third-party testing institutions
Contact us to get your quotation now
