Digital Profile Projector for Hardware Part Contour Data Measurement

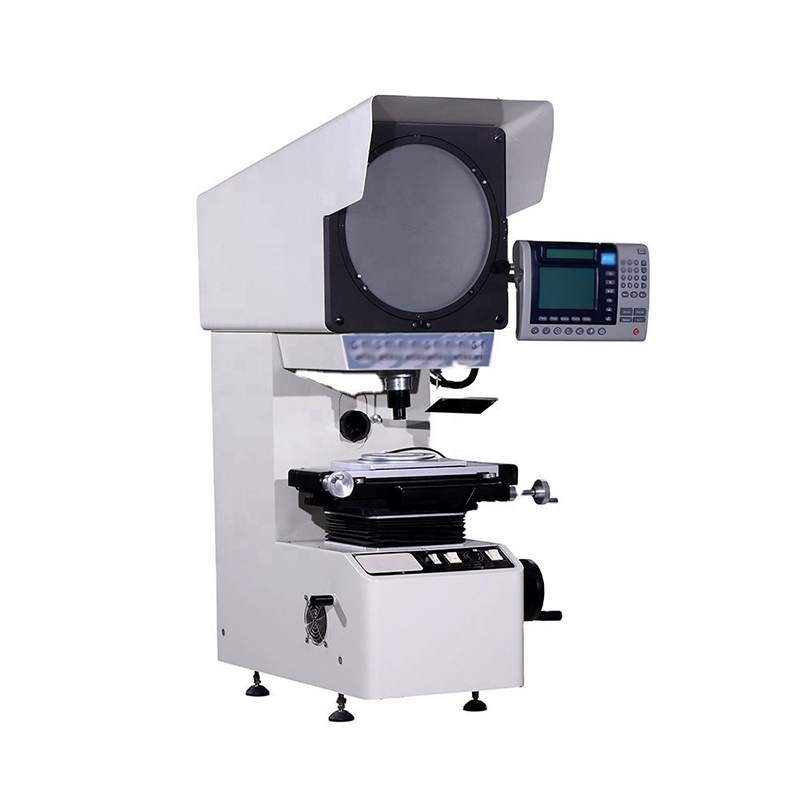

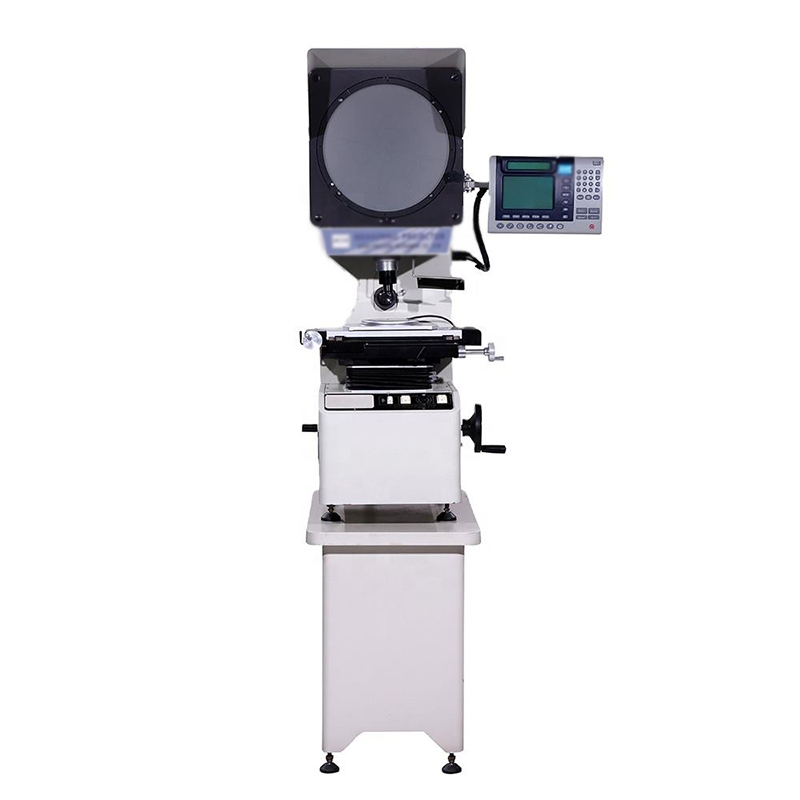

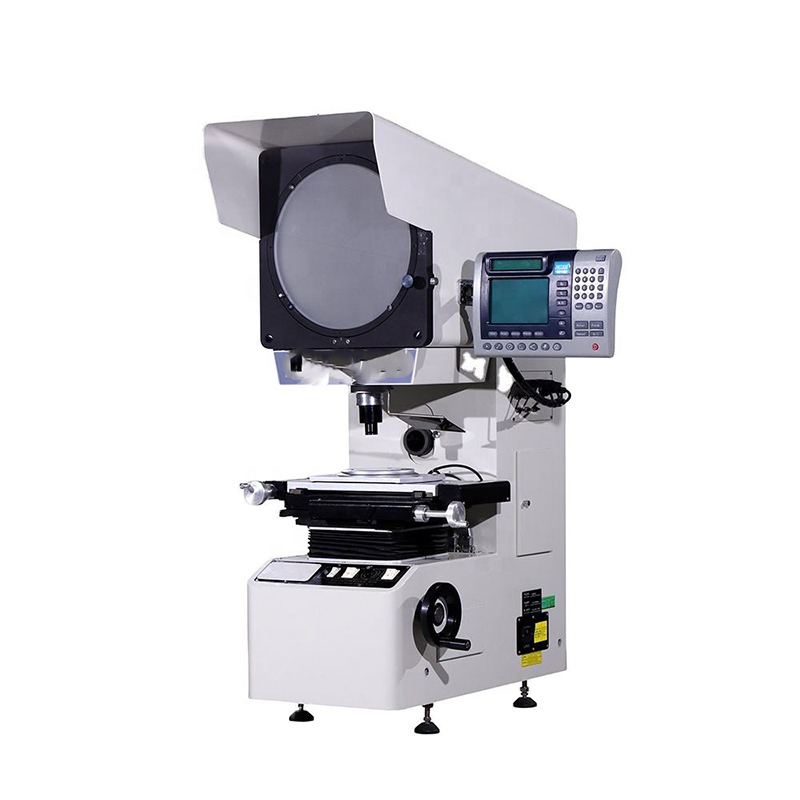

The Vertical Profile Projector is a high-precision testing machine engineered for accurate optical contour and dimensional measurement, ideal for quality control and precision inspection across multiple industries. Boasting exceptional measurement performance—with an accuracy of Ex, y ≤ (3.0 + L / 200) μm, 0.001mm resolution for x/y axes, and 0.5μm
$5,500.00
CompareParameter Table：Digital Profile Projector
|
Category
|
Details
|
|
Product Name
|
Vertical Profile Projector
|
|
Type
|
Testing Machine
|
|
Customized Support
|
OEM
|
|
Application
|
Universal Testing; Electronics, mold, meter, etc.
|
|
Measuring Accuracy
|
Ex, y ≤ (3.0 + L / 200) μm
|
|
Resolution
|
0.5 μm
|
|
Resolution (x, y)
|
0.001 mm
|
|
Power
|
1 (unit not specified)
|
|
Voltage
|
220 V
|
|
Power Supply
|
AC 100-240V 50/60Hz
|
|
Protection Class
|
IP55
|
|
Metal Worktable Size
|
340*152 mm
|
|
Maximum Measuring Height
|
80 mm
|
|
Overall Dimension
|
7705501100 mm
|
|
Weight
|
130 kg
|
Application：
- Electronics part contour testing
- Mold component size inspection
- Meter part precision measurement
- Small workpiece profile checking
- High-precision part dimensional verification
Contact us to get your quotation now
