Profile Projectors
Digital Measuring Profile Projector For Wide industries
The Optical Video Coordinate Measuring Machine, a flagship precision testing tool stands out for its ultra-high accuracy and non-contact measurement capability—making it ideal for protecting delicate workpieces while ensuring reliable dimensional and geometric detection. Powered by 1000W electronic power and supporting 220V/380V dual voltage, it adapts seamlessly to diverse workshop power configurations, maintaining stable performance in various industrial environments.
Equipped with advanced optical video imaging technology, this machine delivers intuitive and precise measurement results, catering to customized needs via ODM/OEM services and backed by a 1-year warranty for post-purchase peace of mind. Its core applications span electronic component measurement, micro-component inspection, mold contour testing, and precision hardware verification, serving as a critical quality control tool in electronics manufacturing, mold production, and precision hardware industries. It effectively bridges the gap between strict design standards and practical production quality, supporting both R&D and mass-production quality assurance processes.
$7,800.00
CompareDigital measuring profile projector Optical Comparators Optical vertical profile projector
Features:

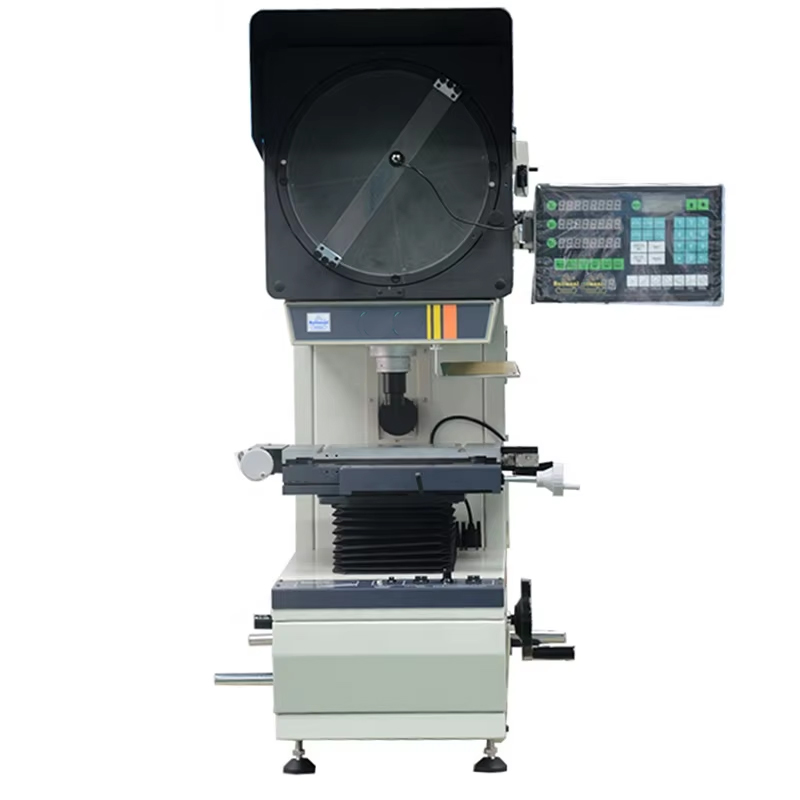

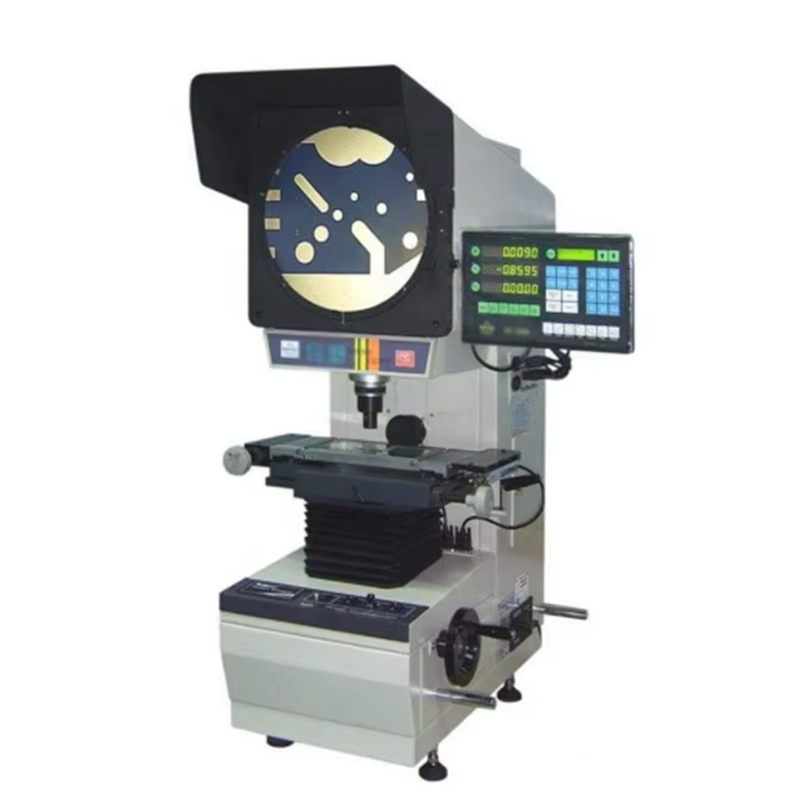

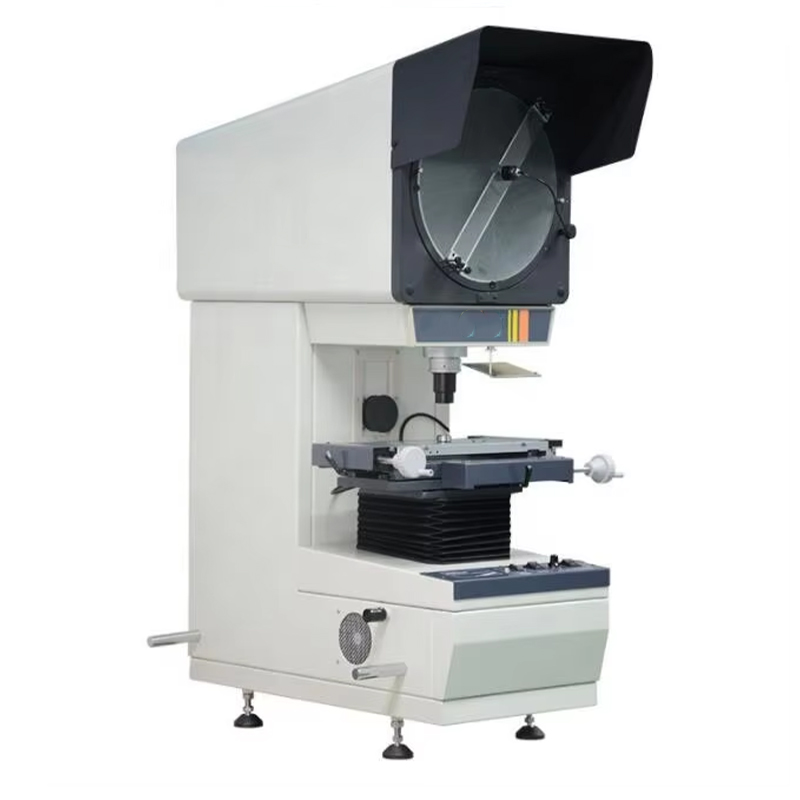

CPJ-3000/3000Z series digital measuring projector is compact in structure, simple and beautiful in appearance, economical and practical, and reliable. It can effectively measure and compare workpieces directly, such as stamping parts, gears, threads, tools, etc.It is widely used in machinery manufacturing, electronics, moulds, instruments and clocks and other industries.
Technical parameters: Digital Measuring Profile Projector
| Model | Reverted image Positive image |
CPJ-3007 CPJ-3007Z |
CPJ-3010 CPJ-3010Z |
CPJ-3015 CPJ-3015Z |
|||
| X Axis stroke (mm) | 75 | 100 | 150 | ||||
| YAxis stroke (mm) | 50 | 50 | 50 | ||||
| Metal table size (mm) | 260×152 | 306×152 | 340×152 | ||||
| Glass table size (mm) | 125×100 | 175×100 | 196×96 | ||||
| X,Y Axial coordinate resolution (μm | 0.5 | ||||||
| indication error (μm) |
E1XY=(2.5+L/100) |
E1XY=(2.5+L/75) |
E1XY=(3+L/50) |
||||
| Z Axis stroke (mm) | 90 (focus) | ||||||
| Equipment weight (kg) | 120 | 125 | 130 | ||||
| Out size (mm) | 770×550×1100 | 770×550×1100 | 770×550×1100 | ||||
| projection screen | Size (mm) | Diameter 312,use range>300(It’s engraved with meter lines) | |||||
| Rotation range | 0~360° | ||||||
| Rotational resolution | 1′ or 0.01° | ||||||
| Objective | magnification times | 10×
(choose) |
20× (choose) | 50× (choose) | 100× (choose) | ||
| object field (mm) | Diameter30 | 15 | 6 |
3 |
|||
| Work distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | |||
| Max measure height (mm) | 80 | 80 | 80 | 80 | |||
| Power: AC 100-240V 50/60Hz, Total power: 400W | |||||||
Contact us to get your quotation now.
