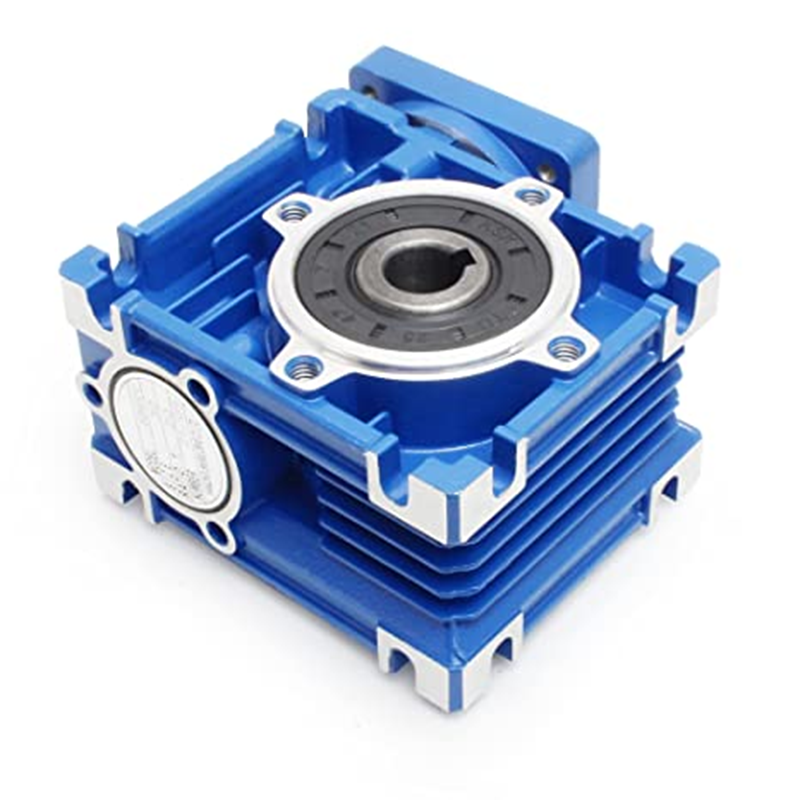

NMRV030 Worm Gear Reducer Speed Ratio 30:1 RV30 Output Hole 14mm

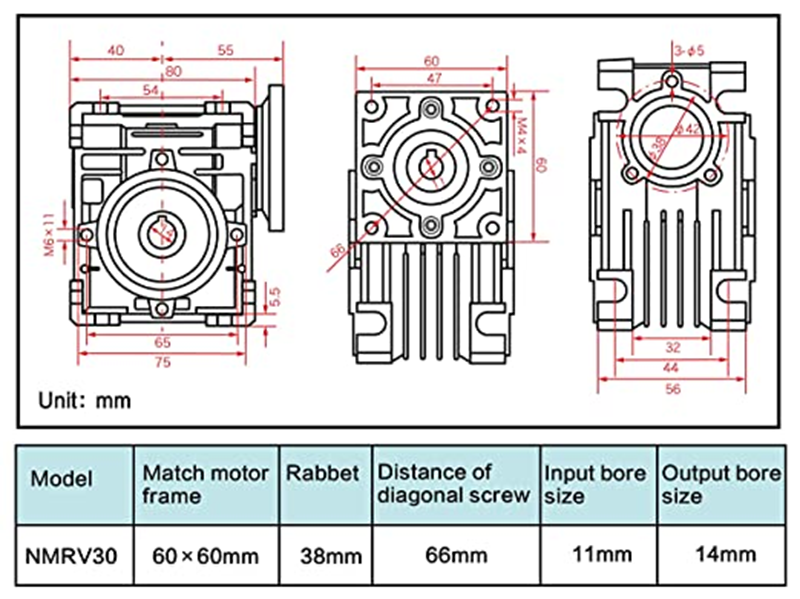

Model:NMRV030
Speed Ratio:30:1
Input Bore Size:11mm, 0.43″ ;
Output Bore Size:14mm, 0.55″
Application:Matched with Stepper Motor
Smooth transmission, low noise; The multi-faceted installation;High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.
$50.00
The gear reducer is a relatively precise machine, the purpose of using it is to reduce the speed and increase the torque.
Based on 0 reviews
Be the first to review “NMRV030 Worm Gear Reducer Speed Ratio 30:1 RV30 Output Hole 14mm”
