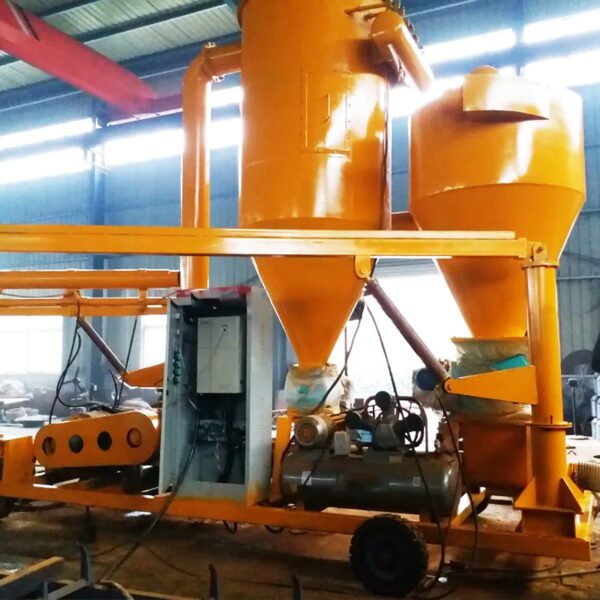

Mobile Grain Corn Suction Machine Pneumatic Wheat Conveyor Unloader Loader Pneumatic Vacuum Grain Conveyor 100 t
1. The pipe standard length is 30m, we can increase it according to the customer’s requirement
2. Besides normal capacity, we can customize according to the customer’s requirement
3. voltage can be customized as required.
$6,875.00
CompareA pneumatic conveyor ( grain suction machine) is an advanced material handling machinery, that can convey in all directions such as horizontally, inclined, and vertically, It can transport granular/particle materials such as rice, rice, wheat, corn, sorghum, peanuts, soybeans, plastic pellet, resin, barley, chips, and other granular..
When conveying grains, it has the
effect of removing impurities and dehydrating grains.
Application
The pneumatic conveyor is widely used in handling materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in grain, farm depots, railway stations, docks, grain processing, and brewing industries, agriculture, forestry, animal husbandry, fishery, medicine, health, metallurgy, minerals, petrochemicals
The working principle
The pneumatic conveyor is mainly composed of fan, cyclone, air closer, connecting pipeline, and conveying pipe.
The negative pressure airflow generated by the high-pressure fan passes through the suction nozzle, the hose sucks the material, and the air is separated from the material through the brake.
Through the conveying pipeline, it is pressed to the place where it is needed, and the gas separated from the material will pass upward through the small brake and the inlet fan connecting the pipeline.
|
Model
|
YD-10
|
YD-20
|
YD-30
|
YD-50
|
YD-80
|
|
Power(kW)
|
15-18.5kw
|
30-37kw
|
45-55kw
|
75-90kw
|
110-132kw
|
|
airflow(m3/h)
|
1300
|
2700
|
3480
|
3480
|
3680
|
|
fan pressure(kph)
|
26-49
|
26-49
|
26-49
|
49
|
54
|
|
horizontal convey distance (m)
|
25-50
|
25-60
|
25-60
|
25-60
|
25-60
|
|
capacity(t/h)
|
6.5-10
|
18-20
|
26-30
|
45-50
|
70-80
|
|
size(L*W*H) (M)
|
2*1*2.9
|
2.6*1.3*2.5
|
3.3*1.5*3.5
|
4*1.6*3.5
|
4.6*1.8*4
|
|
weight(kg)
|
980
|
1200
|
2560
|
4000
|
5000
|
Based on 0 reviews
Be the first to review “Mobile Grain Corn Suction Machine Pneumatic Wheat Conveyor Unloader Loader Pneumatic Vacuum Grain Conveyor 100 t”
Related products
-
Pneumatic Conveying Equipment/Pneumatic Conveyor
Automatic Pneumatic Conveyor Vacuum Feeder For Rice Flour Powder Granule
Pneumatic Conveying Equipment/Pneumatic ConveyorAutomatic Pneumatic Conveyor Vacuum Feeder For Rice Flour Powder Granule
The vacuum feeder is equipped with a compressed air back flushing device. Each time the material is discharged, the compressed air pulse back flushing the filter, and the powder adsorbed on the surface of the filter is dropped to ensure the normal operation of the suction.
For the vacuum feeder with material level control, the material in the hopper of the receiving equipment is automatically fed through the material level controller.
When the hopper of the receiving equipment is higher than a certain position, the vacuum loading machine stops feeding.
When the material level is lower than a certain position, the vacuum loading machine automatically starts to complete the feeding of the receiving equipment.SKU: n/a -
Pneumatic Conveying Equipment/Pneumatic Conveyor

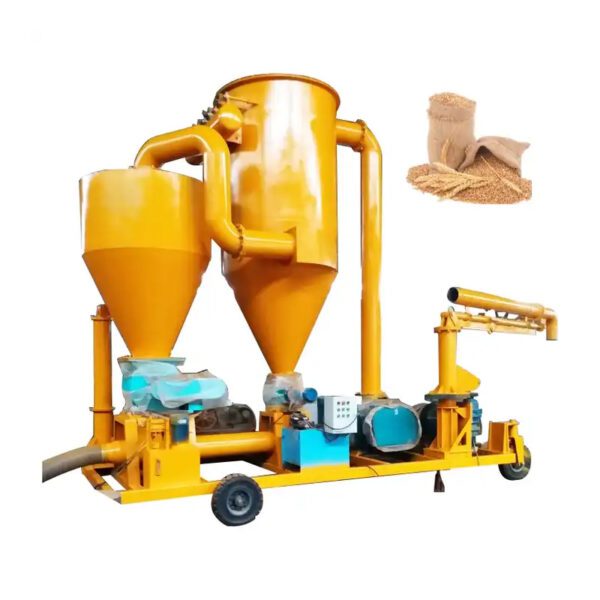

Grain Suction Pneumatic Conveyor Pneumatic Conveying Equipment Pneumatic Conveyor
Pneumatic Conveying Equipment/Pneumatic ConveyorGrain Suction Pneumatic Conveyor Pneumatic Conveying Equipment Pneumatic Conveyor
- Pneumatic vacuum conveyor, also called suction grain machine.
- It is the 1 kind of advanced material handling machinery, which can handle and unload grain and other bulk particles, such as wheat, rice, peanuts, soybeans, corn, rapeseed, cottonseed, feed, etc., and can also be used for non-food bulk particles, such as Plastic particles, etc.
- At the same time, we can also customize the powder conveyor for the handling of powdery materials, loading and unloading. such as cement, flour and so on.
- When conveying grains, it has the effect of removing impurities and dehydrating grains.
- The application scenarios mainly include loading and unloading ships at docks, warehouse entry and exit, and food processing factories.
SKU: n/a -
Pneumatic Conveying Equipment/Pneumatic Conveyor

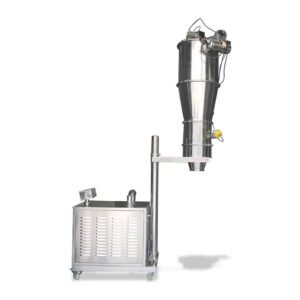

Pneumatic Vacuum Feeder Portable Vacuum Conveyor For Powder
