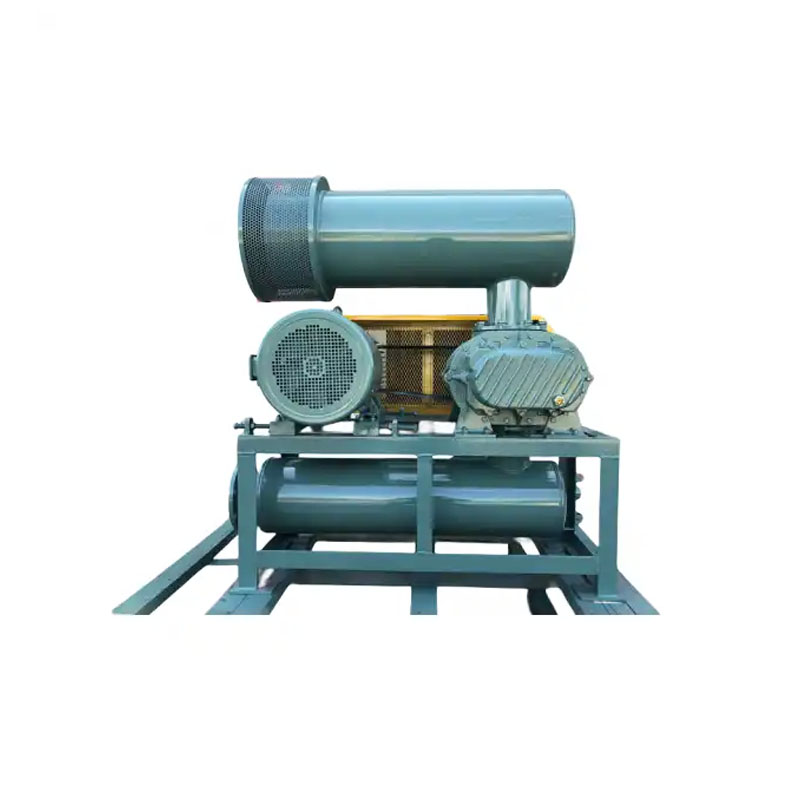

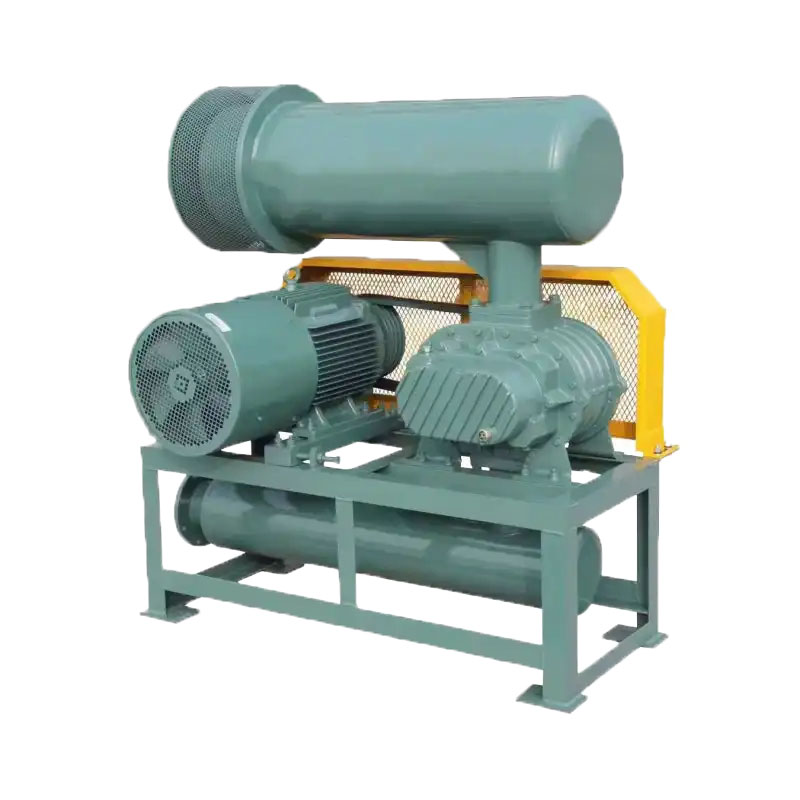

Pneumatic Conveying Equipment Roots Blower
VOLTAGE:380V
MATERIAL:HT200
APPLICATION:Waste water treatment, Pneumatic conveying, Vacuum cleaning,Powder collection
Compare
| Pneumatic Conveying Equipment Specifications: | |
| AIR VOLUMN | 0.7m³/min～150m³/min |
| PRESSURE | 0.01Mpa~0.08Mpa |
| POWER | 1.5KW～315KW |
| VOLTAGE | 380V |
| MATERIAL | HT200 |
| APPLICATION | Waste water treatment, Pneumatic conveying, Vacuum cleaning,Powder collection |
ROOTS BLOWER
There are two impellers on the two parallel shafts. There are tiny gap between impellers to thebody casing, also between impellers. When the impellers rotate in opposite directions, certain airwill be absorbed at inlet port and transferred to the outlet port.Each impeller always keeps the correct phase by the synchronous gear without touching eachother. So they can rotate at high speed without any lubrication inside. And it is simple structure,running smoothly, and perform stably.
Based on 0 reviews
Be the first to review “Pneumatic Conveying Equipment Roots Blower”
Related products
-
Pneumatic Conveying Equipment/Pneumatic Conveyor

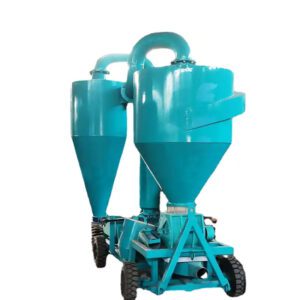

Pneumatic Conveyor Transport System Loading And Unloading Conveying Machinery
Pneumatic Conveying Equipment/Pneumatic ConveyorPneumatic Conveyor Transport System Loading And Unloading Conveying Machinery
Application
Pneumatic conveyor is widely used in handling materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in grain, farm depots, railway stations, docks, grain processing and brewing industries,agriculture, forestry, animal husbandry, fishery, medicine, health, metallurgy, minerals, petrochemicalsSKU: n/a -
Pneumatic Conveying Equipment/Pneumatic Conveyor
10T 50T Corn Suction Machine, Pneumatic Vacuum Particle Feeder, Conveyor, Best-Selling Wheat Or Sawdust Particle Suction Machine
Pneumatic Conveying Equipment/Pneumatic Conveyor10T 50T Corn Suction Machine, Pneumatic Vacuum Particle Feeder, Conveyor, Best-Selling Wheat Or Sawdust Particle Suction Machine
Pneumatic vacuum conveyor, also called suction grain machine. It is the 1 kind of advanced material handling machinery, that can handle and unload grain and other bulk particles, such as wheat, rice, peanuts, soybeans, corn, rapeseed, cottonseed, feed, etc., and can also be used for non-food bulk particles, such as Plastic particles, etc.
SKU: n/a -
Pneumatic Conveying Equipment/Pneumatic Conveyor

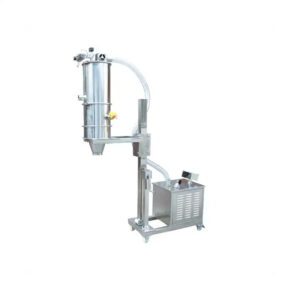

Vacuum Pneumatic Conveyor Grain Vacuum Feeder
