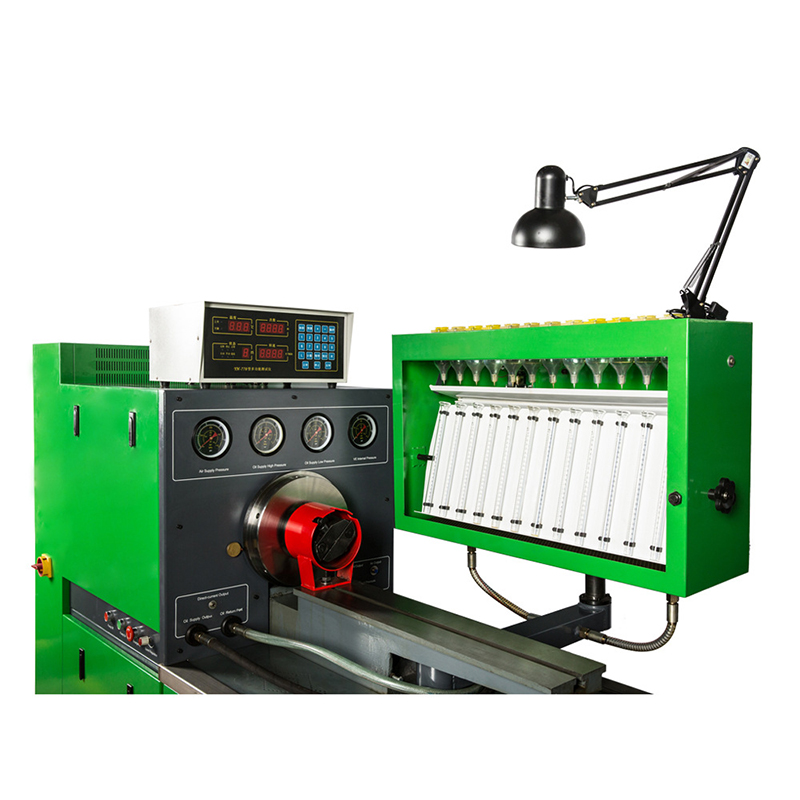

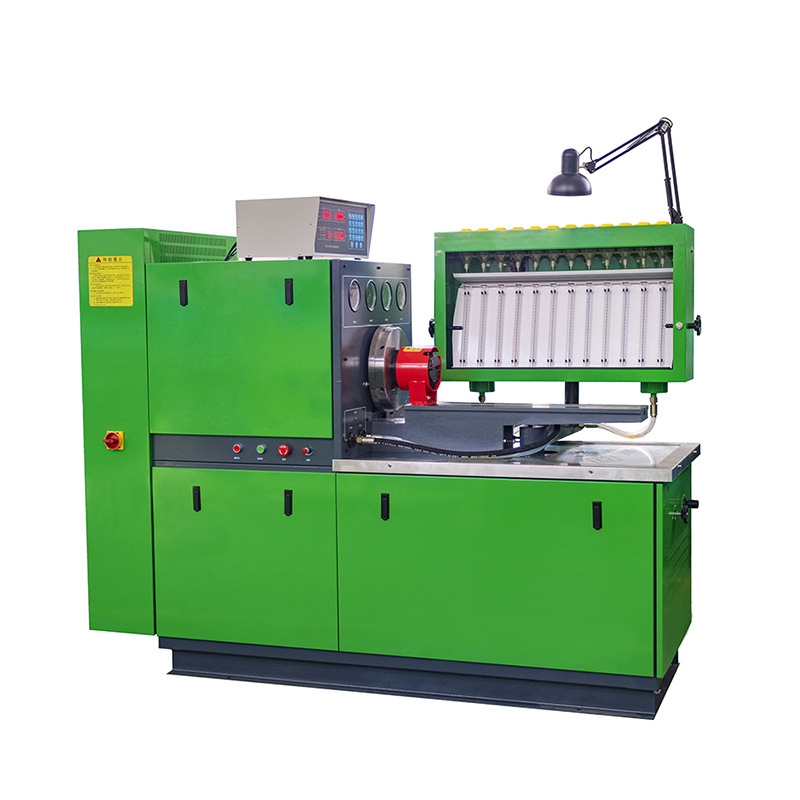

Mechanical Pump Test Equipment Hydraulic Test Stand Diesel Fuel Injection Pump Test Bench


The fuel injection pump test bench is widely used in various industries and departments such as automobiles, tractors, ships, railway locomotives, agricultural machinery, air conditioners, generators, air compressors, construction machinery, teaching and scientific research, and national defense. The product specifications are complete and the detection means are perfect, which can meet the needs of various users.

Note: Prices may vary depending on product capacity and quality.

$6,032.00

Compare

The fuel injection pump test bench has many advantages such as wide stepless speed regulation range, accurate and stable speed control, and large output torque.
The preset speed, measured speed, oil gauge count, test oil temperature, gear rod stroke, advance angle and other measurement and display results of this series of products are all digitally displayed, with high measurement accuracy and reliable and accurate work.
The fuel injection pump test bench is widely used in various industries and departments such as automobiles, tractors, ships, railway locomotives, agricultural machinery, air conditioners, generators, air compressors, construction machinery, teaching and scientific research, and national defense. The product specifications are complete and the detection means are perfect, which can meet the needs of various users.

Name Mechanical Pump Test Equipment
Rated power 15kW
Output speed range 0~4000rpm
Number of testable oil pump cylinders 12 cylinders
Spindle center height 125 mm
Height of working surface from ground 850mm
Display format LED
Fuel tank capacity 50 L
Speed preset number 10
Oil counting times 0~1000 St

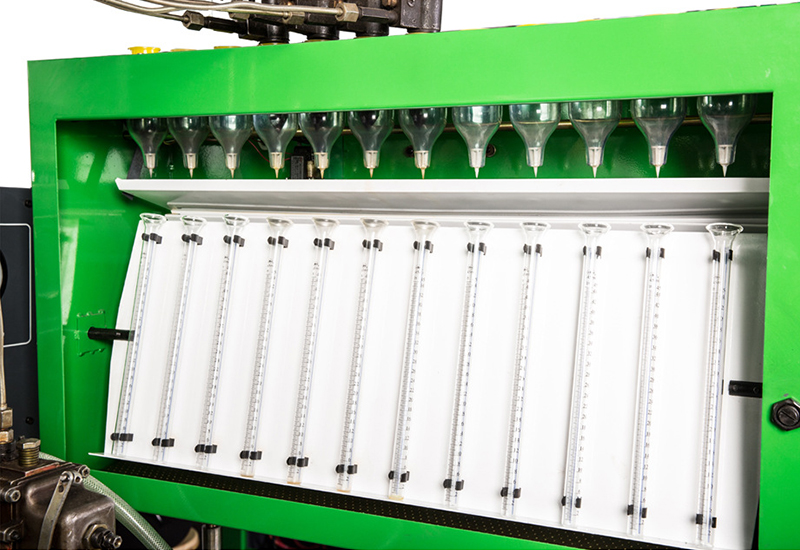

Small measuring cylinder volume 45 ml
Oil supply low pressure 0~0.35 MPa
Oil supply high pressure 0~3.5 MPa
Test fuel flow ≧10 L/Min
Fuel temperature control temperature 40±2℃
Fuel tank heating form 1kW/220VAC
Fuel Cooling Radiator Cooling pipe and fan (13m³/Min)
DC power supply (short circuit allowed) 12/24V
Gas Positive Pressure Range 0~0.16Mpa
Test bench size (L*W*H) 2100 mm*750 mm*1800mm
Packing size (L*W*H) 2170 mm*1060 mm*1850mm
Test bench weight 870~ 1000kg

Function:
1. Injection pump tightness test;
2. Check and adjust the oil supply interval angle;
3. Inspection and adjustment of the oil supply volume and its uniformity at the specified speed;
4. Dynamic speed regulation performance test of mechanical centrifugal governor
5. Performance inspection and adjustment of governor with booster compensator;
6. The performance test of the solenoid valve attached to the fuel injection pump
7. Detection and adjustment of the internal pressure of the distribution pump;
8. Check the oil supply pressure of the oil pump
