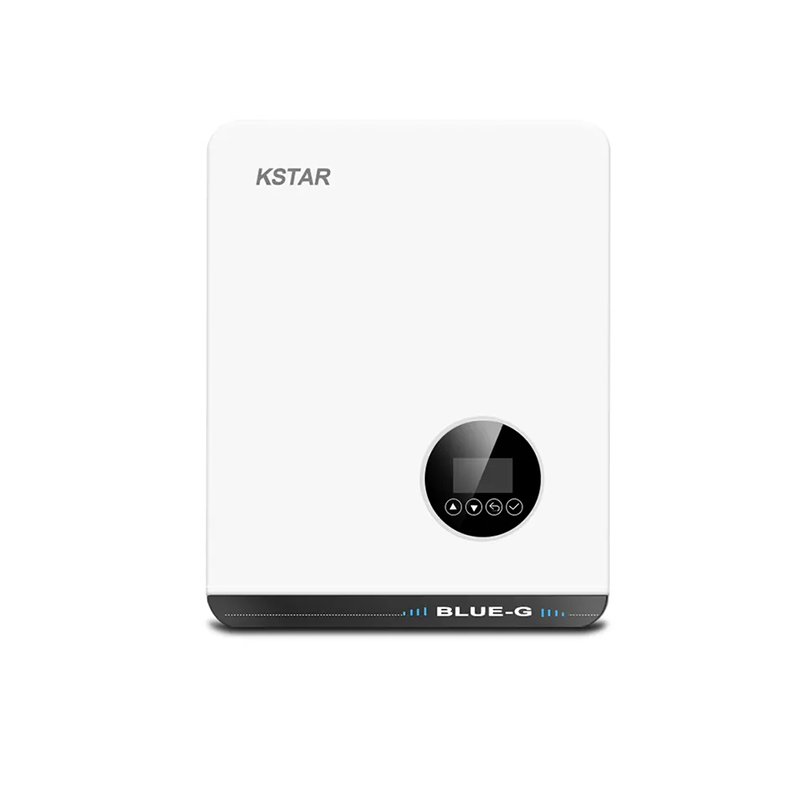

KSTAR Solar Inverter DC To AC 3 Phase Photovoltaic Grid-Tied 10KW Inverter

Add to wishlist
Compare

General Features:
● Max. PV voltage up to 1100V
● Type II DC /AC SPD
● Reactive power control
● WiFi / 4G Plug optional
● DC/AC ratio up to 2
● IP66 protection
● High efficiency up to 98.3%
● Smaller and lighter

$990.00

Compare

Solar Inverter Specifications
Model
BluE-3KT
BluE-5KT
BluE-10KT
Input(DC)
Max. DC Voltage
1100V
1100V
1100V
Nominal voltage
620V
620V
620V
MPPT voltage range
140V~1000V
140V~1000V
140V~1000V
Start voltage
180V
180V
180V
Number of MPPT Tracker
2
2
2
Strings per MPPT Tracker
1
1
1
Max. input current per MPPT
15A
15A
15A
Max. short-circuit current per MPPT
20A
20A
20A
Output (AC)
Nominal AC output power
3000W
5000W
10000W
Max. AC output power
3300VA
5500VA
11000VA
Nominal AC voltage
400V 3L+N
400V 3L+N
400V 3L+N
AC grid frequency range
50 / 60Hz±5Hz
50 / 60Hz±5Hz
50 / 60Hz±5Hz
Max. output current
4.8A
8A
16A
Power factor (cosΦ)
0.8leading-0.8lagging
THDi
<3%
Efficiency
Max. Eciency
98.40%
98.40%
98.60%
Euro eciency
97.50%
97.50%
98.10%
Protection devices
DC switch
Yes
Yes
Yes
Anti-islanding protection
Yes
Yes
Yes
Output over current
Yes
Yes
Yes
DC Reverse Polarity Protection
Yes
Yes
Yes
String fault Detection
Yes
Yes
Yes
Surge protection
DC Type II;AC Type III
Insulation detection
Yes
Yes
Yes
AC short circuit protection
Yes
Yes
Yes
General Specifications
Dimensions W x H x D (mm)
380*483*161mm
Weight(kg)
＜17KG
＜17KG
＜17KG
Environment
Operating temperature range
-25℃~+60℃
Cooling type
Natural
Max. operation altitude
4000m
Max. operation humidity
0-100%(No condensation)
AC Output Terminal Type
Connector
IP class
IP66
Topology
Transformer-less
Communication
RS485/WIFI/4G
Display
LCD
Certifcation & Standard
EN/IEC62109-1/2:IEC/EN61000-6-2:IEC/EN61000-6-4;IEC61683;IEC60068;IEC60529;IEC62116;IEC61727;EN50549-1:
AS4777.2:VDE-AR-N-4105:VDE0126-1-1:CEI0-21;G98;G99;C10/C11;
NB/T32004-2018;GB/T19964-2012
