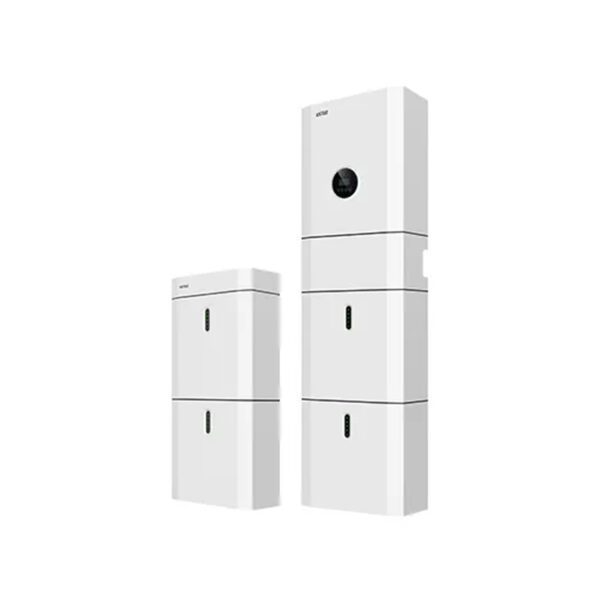

Kstar BluE-S 10KT Hybrid Inverter Three Phases All In One Energy Storage System

Add to wishlist
Compare

Description
Battery circuit breaker
DC isolation switch
Output terminal block(BACK UP/ON GRID)

$3,900.00

Compare

Hybrid Inverter Model
BluE-S 10KT
PV String Input
Max. Continuous PV Input Power
20000W
Max. DC Voltage
1100V
Nominal Voltage
720V
MPPT Voltage Range
140V-1000V
MPPT Range (Full Load)
420V-850V
Start Voltage
130V
MPPT Tracker / Strings
2/2
Max. Input Current Per MPPT
15A
Max. Short-circuit Current Per MPPT
20A
AC Output (Grid)
Nominal AC Output Power
10000W
Max. AC Apparent Power
11000VA
Nominal AC Voltage
400Vac 3W+N+PE
AC Grid Frequency Range
50 / 60Hz
Max. Output Current
14.5A
Max. Input Current
16A
Power Factor (cosΦ)
0.8leading-0.8lagging *
Battery Input
Battery Type
LFP (LiFePO4)
Nominal Battery V oltage
48V
Charging Voltage Range
40-60V
Max. Charging Current
200A
Max. Discharging Current
200A
AC Output (Backup)
Max. Output Apparent Power
10000VA
Rated Output Power
9200W
Rated/Max. Output Current
14.5A/16A
Nominal Output Voltage
400V
Nominal Output Frequency
50/60Hz(±2%)
Output THDv (@Linear Load)
<3%(Linear Load)
Protection
Anti-islanding Protection
Yes
Output Over Current
Yes
DC Reverse Polarity Protection
Yes
String Fault Detection
Yes
AC/DC Surge Protection
DC Type II;AC Type III

Insulation Detection
Yes
AC Short Circuit Protection
Yes
General Specifications
Dimensions W x H x D
540*980*240mm
Weight
42kg
Operating Temperature Range
-25℃~+60℃ (Derating >45℃ )
Noise (dB)
<25
Cooling Type
Natural Convection
Max. Operation Altitude
3000m (Derating > 2000m)
Operation Humidity
0~95% (No Condensation)
IP Class
IP65
Topology
Battery Isolation
Communication
RS485/CAN2.0/WIFI/4G
Display
LCD/APP

Description1 Battery circuit breaker
2 DC isolation switch
3 Output terminal block(BACK UP/ON GRID)
