Industrial Water Filling System for Bottled Water Production

Product Introduction: Industrial Water Filling System

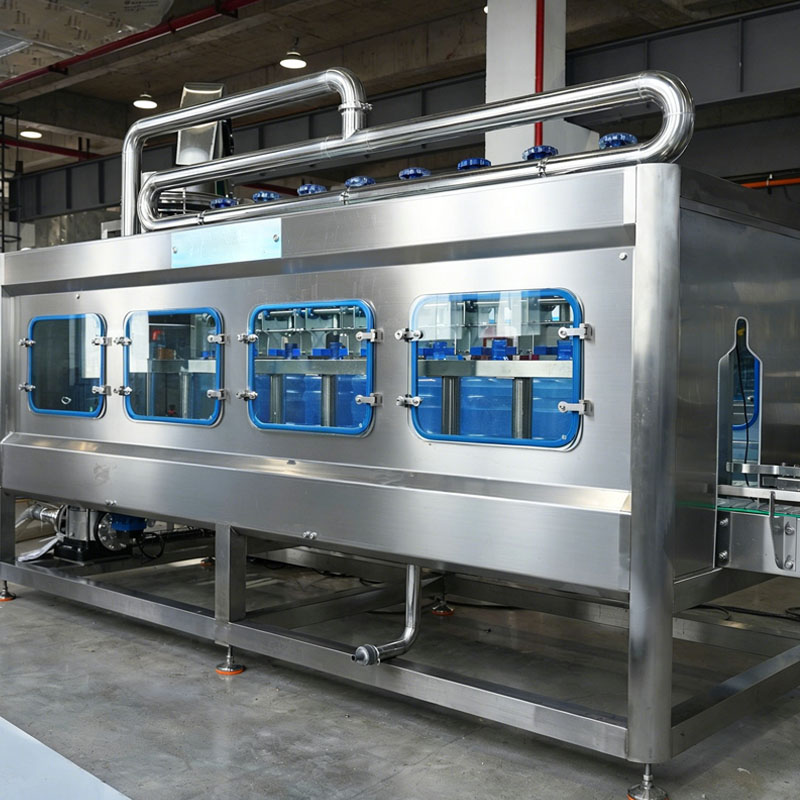

The Industrial Water Filling System is a fully automatic barrel production line designed for 3–5 gallon drinking water and multi-liquid applications. It integrates washing, sterilization, filling, capping, and final discharge into one continuous automated process.

This system adopts advanced international technology combined with optimized domestic engineering design. It is widely used in bottled water factories and also suitable for barrel wine, vinegar, and pharmaceutical liquid production.

With Siemens PLC control and AIRTAC pneumatic components, the system ensures high stability, low maintenance cost, and efficient large-scale production.

Working principle

Step 1: Barrel Feeding System

Empty 3–5 gallon barrels are automatically conveyed into the production line.

Step 2: Decapping and Inspection

Used caps are removed and barrels are inspected for reuse readiness.

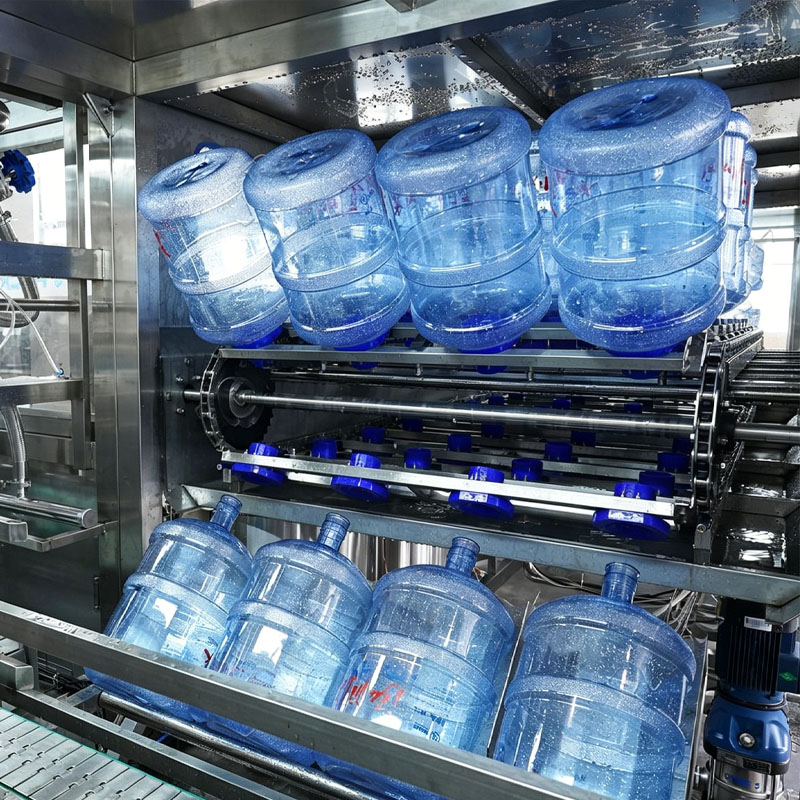

Step 3: External Washing Process

Barrels are cleaned using multi-liquid spray washing system to remove dirt and residues.

Step 4: Internal Sterilization Process

Internal cleaning uses recyclable sterilizing liquid to ensure full disinfection.

Step 5: Filling Process

Liquid is filled into barrels under controlled conditions for stable volume accuracy.

Step 6: Automatic Capping System

Caps are sterilized and automatically sealed to ensure hygiene and safety.

Step 7: Counting and Output

Finished barrels are counted and discharged for packaging and storage.

Product Parameter Table

Parameter	Specification
Filling heads	6
Volume	3 & 5 Gallon
Barrel size	φ270 × 490 mm
Capacity	900 b/h
Gas pressure	0.6 MPa
Gas consumption	1.5 m³/min
Motor power	9.8 kW
Weight	3500 kg

Comparison With Traditional Systems

Main Features

• Fully automatic 3–5 gallon barrel water production system
• Integrated washing, sterilizing, filling, and capping line
• Multi-liquid spray washing with recyclable sterilization system
• SUS304 stainless steel food-grade structure
• Siemens PLC and Omron electrical control system
• AIRTAC pneumatic components for stable operation
• Automatic barrel handling and counting system
• Cap sterilization spraying system for hygiene assurance
• Low energy consumption and high production efficiency
• Suitable for water, wine, vinegar, and liquid filling applications

Why Choose This Industrial Water Filling System

• Higher efficiency than semi-automatic barrel filling machines
• Fully integrated washing, filling, and capping system
• Lower labor cost with full automation control
• Better hygiene through multi-stage sterilization system
• More stable than traditional manual filling methods
• Suitable for multiple liquid production applications
• Continuous 24-hour industrial production capability
• Reduced contamination risk with closed system design

Application Scenarios

• 5 gallon barreled drinking water production factory system
• Industrial barrel water filling and sterilization line
• Large capacity bottled water plant production equipment
• Barrel vinegar and liquid beverage filling system
• Pharmaceutical liquid barrel filling production line
• Commercial drinking water distribution factory system
• Industrial multi-liquid barrel filling automation solution

Buying Guide

1. Confirm Barrel Size Requirement

Choose system based on 3 gallon or 5 gallon production needs.

2. Define Production Capacity

Select machine capacity according to daily factory output.

3. Check Liquid Type Compatibility

Ensure system supports water, vinegar, wine, or other liquids.

4. Evaluate Automation Level

Fully automatic PLC system is recommended for industrial production.

5. Assess Hygiene Requirements

Multi-stage sterilization is required for drinking water production.

6. Verify Electrical Standards

Ensure Siemens, Omron, and AIRTAC components meet reliability needs.

FAQ

Q1: What is Industrial Water Filling System used for?

A1: It is used for automatic filling of 3–5 gallon barreled drinking water and other liquids.

Q2: Can this system produce barrel wine or vinegar?

A2: Yes, it is suitable for water, wine, vinegar, and liquid filling applications.

Q3: Is this a fully automatic production line?

A3: Yes, it integrates washing, sterilizing, filling, capping, and discharge automatically.

Q4: What control system is used in this machine?

A4: It uses Siemens PLC with Omron electrical components.

Q5: How is barrel hygiene ensured?

A5: Multi-stage spray washing and sterilization ensure high hygiene standards.

Q6: What is the production capacity of this system?

A6: Capacity can be customized based on factory production requirements.

Q7: Does the system reduce labor cost?

A7: Yes, full automation significantly reduces manual operation needs.

Q8: Is this system suitable for bottled water factories?

A8: Yes, it is widely used in barreled water production plants.

Q9: How is capping hygiene controlled?

A9: Caps are sterilized before automatic sealing to ensure safety.

Q10: Why choose an automatic barrel production line?

A10: It improves efficiency, hygiene, and reduces production costs.
