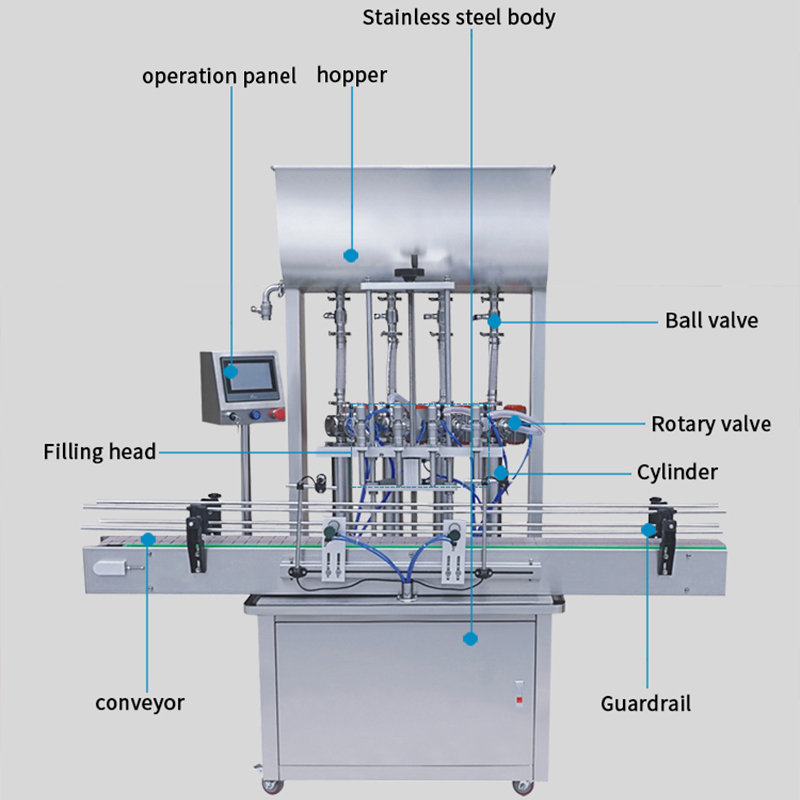

4 Head Bottling Line Automatic Paste Cooking Oil Bottle Filling Machine with Mixing Hopper Production Line Can Filling Line Machine
- Filling Accuracy: ±1%
- Control: PLC+ Touch Screen
- Conveyor size: 2000*100mm(L*W)
- Size of filling nozzle: 4-15mm
- Size of air compressor connector: 8mm
NOTE: Prices may vary by product model and material.
$8,375.00
CompareDescription of The Bottling Line
Widely used in a variety of liquids, semi-fluids, pastes, viscous bodies, sauces and various Filling of granular materials. Such as fruit drinks, honey, syrup, jam, peanut butter, Ketchup, chili sauce and a variety of creams.
The product is in operation, accuracy error, Installation adjustment, equipment cleaning, maintenance and other aspect sare more simple and convenient.
It is widely used in various industries such as daily chemicals and oils, and can be filled with different high viscosity fluids.
| Device name | Automatic paste filling machine |
| Power supply | 220V/50,60Hz |
| Power | 0.15KW |
| Filling volume | 2-50/10-100/30-300/50-500/100-1000/250-2500/300-3000/500-5000 |
| Production speed | 20-30Pcs/min |
| Gas source | 0.4-0.6MPA |
| Dimensions | L2000*W1050*H1650mm |
