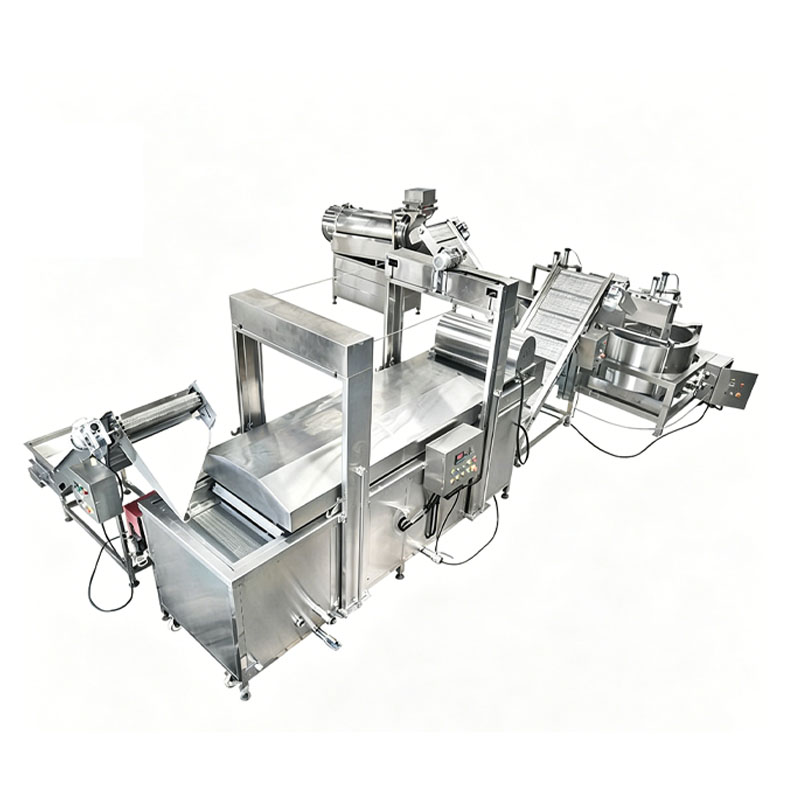

Industrial Garlic Frying Solution Manufacturing Line System

Product introduction of Industrial Garlic Frying Solution

Industrial garlic frying line is a continuous automatic frying system designed for large-scale food production factories. It integrates mesh belt frying, oil-water separation, automatic stirring, and continuous filtration technology to ensure stable frying quality and extended oil life.

The system is widely used for garlic chips, vegetable frying, snack food production, and industrial oil frying applications.

Working principle

Step 1: Automatic Feeding System
Raw garlic or food materials are evenly placed onto stainless steel mesh belt.

Step 2: Continuous Frying Zone
Material passes through controlled hot oil with adjustable temperature system.

Step 3: Automatic Stirring System
Ensures uniform frying and prevents sticking or uneven heating.

Step 4: Oil-Water Separation System
Food residues fall into water layer, preventing oil contamination.

Step 5: Oil Circulation Filtration
Oil is continuously filtered to maintain cleanliness and extend service life.

Step 6: Automatic Discharge System
Finished product is discharged automatically for packaging or further processing.

Core Value

• Reduces oil consumption by up to 30–50% through filtration system
• Ensures continuous production without batch interruption
• Stabilizes frying quality through automatic temperature control
• Minimizes labor cost with full automation system
• Extends frying oil lifespan via oil-water separation design
• Improves product consistency for industrial-scale production

Product Parameter Table

Item	Specification
Heating Type (Electric)
Conveyor Power	1.5 kW
Hoist Power	1.5 kW
Heating Power	180 kW
Overall Dimension	6200 mm × 1400 mm × 2300 mm
Weight	1400 kg
Capacity	800 kg/h
Heating Type (Gas)
Conveyor Power	2.2 kW
Hoist Power	1.5 kW
Overall Dimension	6200 mm × 1700 mm × 2300 mm
Weight	1800 kg
Capacity	800 kg/h

Competitive Comparison

Main Features

• Continuous mesh belt frying system with adjustable speed
• Automatic temperature control for precise frying quality
• Oil-water separation structure improves oil cleanliness
• Built-in oil circulation filtration system extends oil life
• Automatic stirring prevents product sticking and uneven frying
• SUS304 stainless steel ensures food-grade safety
• Automatic discharge system reduces labor cost
• Easy cleaning design with lifting mechanism
• Efficient waste residue removal system
• Suitable for continuous industrial production

Application Scenarios

For Garlic Processing Factories

For unstable frying quality in batch production → result: continuous uniform fried garlic with stable color and texture.

For Snack Food Manufacturers

For inconsistent product output → result: automated frying ensures standardized snack production.

For Food Oil Processing Plants

For high oil waste and cost → result: oil filtration system extends oil reuse cycle.

For Vegetable Frying Production

For manual frying limitations → result: continuous mesh belt system increases production efficiency.

Why This System

• Continuous production replaces inefficient batch frying
• Reduces frying oil cost significantly in long-term operation
• Improves food safety through closed oil filtration system
• Enhances product consistency for commercial buyers
• Supports large-scale industrial food manufacturing
• Designed for 24/7 continuous production environments

FAQ

What Is Industrial Garlic Frying Line Used For?

It is used for continuous frying of garlic and food products in industrial food production.

How Does Continuous Frying System Improve Oil Quality?

It uses oil-water separation and circulation filtration to keep oil clean and reusable.

Can Frying Temperature Be Controlled Automatically?

Yes, the system supports precise automatic temperature adjustment.

What Foods Can Be Processed In This Frying Line?

It can process garlic, vegetables, snack foods, and various fried food products.

Is SUS304 Frying Equipment Safe For Food Production?

Yes, SUS304 stainless steel meets international food hygiene standards.

Contact us to get your quotation now.

Get in touch with our engineering team.
