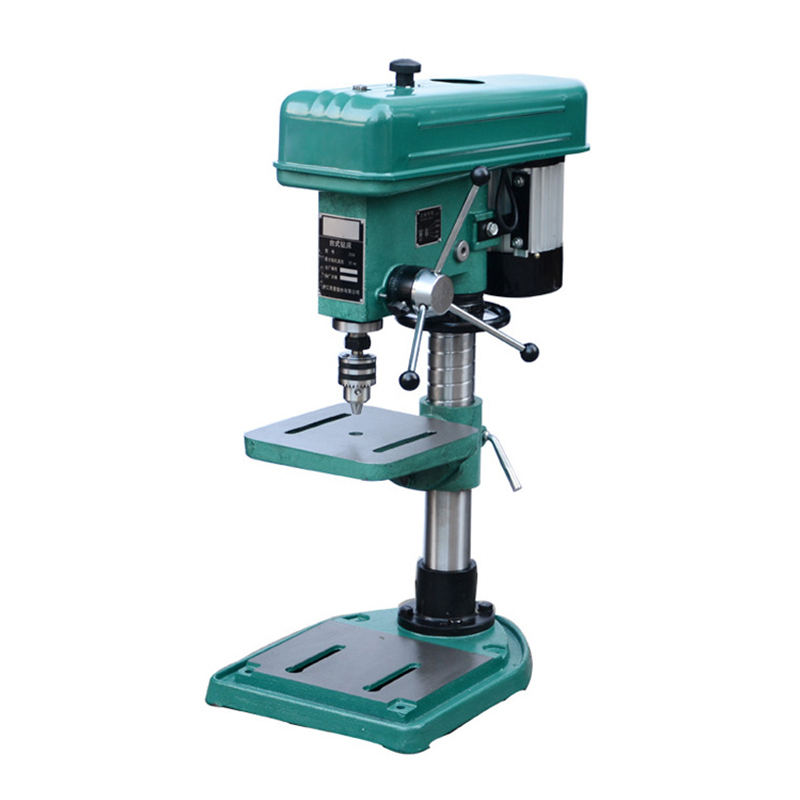

Industrial Bench Drilling Press Maximum Drilling Diameter 16mm 20mm 25mm High Speed Precision Drilling Machine

Add to wishlist
Compare

Multifunctional, suitable for various materials: drilling, chamfering, cast iron, stainless steel, reaming, opening, angle steel, iron plate, etc.

  • Variable speed design.
  • All-copper motor, dust-proof and explosion-proof.
  • Scroll spring.
  • Extra strong drill chuck.
  • Rotatable table.
  • Precision high-quality headstock.

$699.00 – $741.00

Compare

Technical Parameters of the Industrial Bench Drilling Press

Model Z516-1A Z520 Z525
Maximum drilling diameter (mm) 16 20 25
Spindle stroke (mm) 90 90 90
Spindle speed series 4 4 4
Spindle rotation range (r/min) 280～3100 280～3100 280～3100
Spindle taper MT2 MT2 MT3
The distance from the spindle center to the bus bar of the column (mm) 193 193 193
The maximum distance from the spindle end to the table (mm) 270 270 270
The maximum distance from the spindle end to the base table (mm) 480 480 480
Table size (mm) 250*250 250*250 250*250
Base size (mm) 280*230 280*230 280*230
Total height (mm) 930 930 930
Dimensions (mm) 650*350*800 650*350*800 650*350*800
Packing size (mm) 750*450*300 750*450*300 750*450*300
Gross weight/net weight (kg) 56 56 56

Product details and features

  1. Variable speed design, wide speed range to meet different needs, reliable transmission.
  2. All-copper motor, dust-proof and explosion-proof, high efficiency and energy saving, and longer life.
  3. The scroll spring is made of high-quality steel and has strong elasticity.

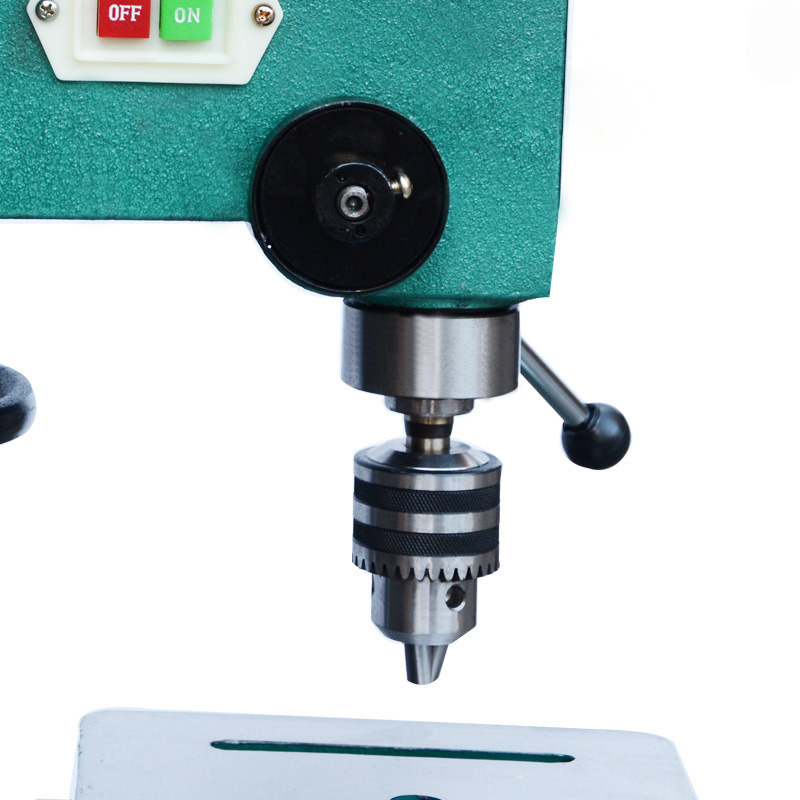

  4. Super-strength drill chuck, made of high-quality steel, has strong clamping force, good rigidity and high precision.
  5. Rotatable table. It can be rotated positively and negatively, and the angle is large.
  6. Precision high-quality headstock. High quality cast iron with high precision.

SKU: N/A Category: Tags: , , , ,
