Metalworking Machinery

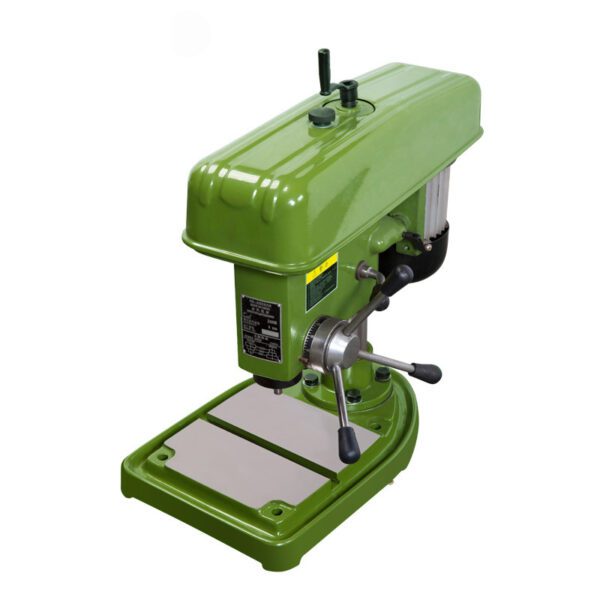

Home Bench Drill Press 6mm Maximum Drilling Diameter High Speed Precision Small Bench Drill Desktop Drilling Equipment
- Variable speed design
- All-copper high-efficiency energy-saving motor
- High quality handle
- Super Strength Drill Chuck
- LED work light
$538.00 – $671.00
CompareTechnical Parameters of the Home Bench Drill Press
| MODEL | Z406/Z406C | Z406B | ZWG-4 | ZWG-6 |
| Max.Drilling capacity (mm) | 6 | 6 | 4 | 6 |
| Diameter of column (mm) | 50 | 50 | 40 | 50 |
| Spindle travel (mm) | 65 | 65 | 50 | 55 |
| Distance spindle axis To column generating line (mm) | 140 | 140 | 125 | 140 |
| Max.Distance spindle nose to table (mm) | / | / | / | / |
| Max.Distance spindle nose to base (mm) | 225 | 225 | 200 | 210 |
| Spindle taper | B10 | B10 | B6/JTO | B10 |
| Spindle speeds range (r/min) | 140～5800 | 2000～12000 | 2800～11500 | 6700～15000 |
| Spindle speeds series | 3 | 3 | 3 | 3 |
| Dimension of base (mm) | 380×258 | 380×258 | 190×230 | 250×360 |
| Overall height (mm) | 605 | 605 | 415 | 490 |
| Power of motor (w) | 250 | 250/370 | 120 | 370 |
| G.W/N.W (kg) | 48/38 | 48/38 | 32/28 | 50/40 |
| Packing dimension (mm) | 610×300×540 | 610×300×540 | 340×300×600 | 560×300×600 |
| MODEL | Z406/Z406C, Z406B, ZWG-4, ZWG-6 |
|---|
