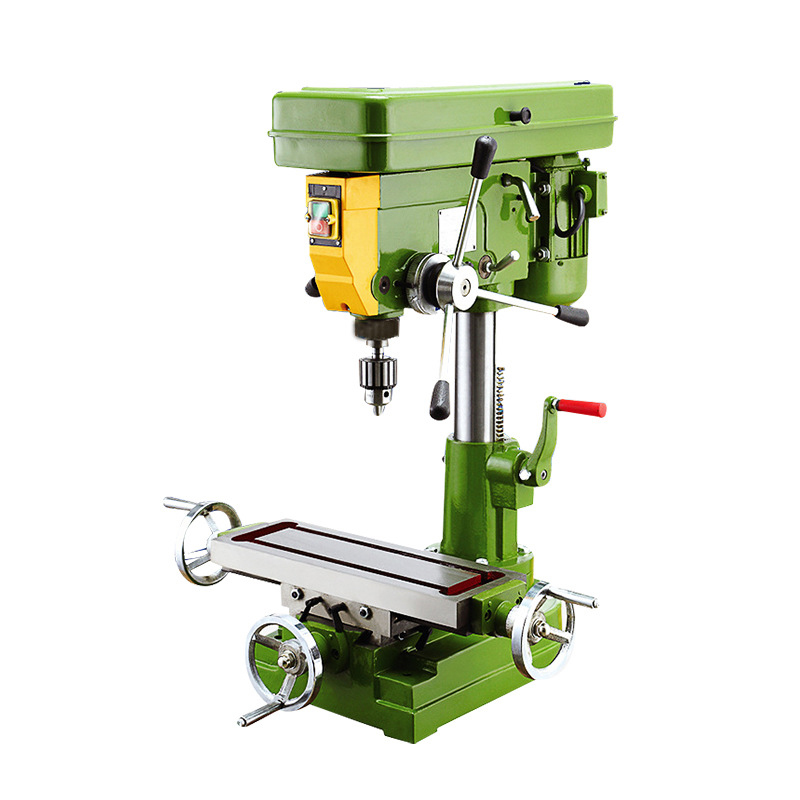

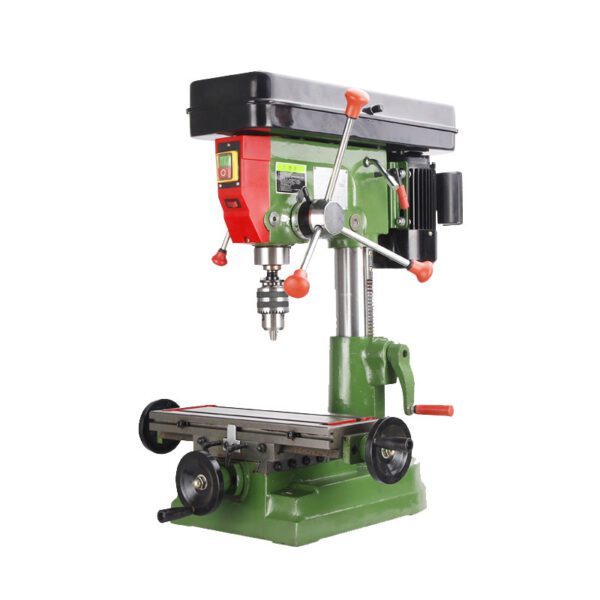

Multifunctional Drilling and Milling Machine High Precision Bench Drilling Machine 750W Milling&Drilling Machine
- The machine adopts belt drive with low noise.
- Suitable for drilling, reaming, reaming and milling on various materials.
- This machine tool has 12 levels of variable speed and a wide range of speeds, which is suitable for processing various commonly used soft and hard materials.
- This machine tool can be equipped with a multi-axis device for simultaneous drilling, expansion, reaming and tapping of multiple holes according to user needs.
$864.00
CompareTechnical Parameters of the Multifunctional Drilling and Milling Machine
| Model | ZX7016 |
| Maximum drilling diameter | 16 mm |
| The Maximum diameter of the end milling | 40 mm |
| Maximum Vertical Milling Diameter | 10 mm |
| Longitudinal travel of workbench | 100 mm |
| Horizontal travel of workbench | 230 mm |
| Column diameter | 70 mm |
| Spindle travel | 75 mm |
| Distance from spindle center to column surface | 193 mm |
| The maximum distance from the spindle end to the table surface | 350 mm |
| Spindle taper | MT2 |
| Spindle speed range | 320-3300 r/min |
| Spindle speed series | 12 |
| Work surface size | 420 mm×150 mm |
| Base size | 420 mm×300 mm |
| Total height | 880 mm |
| Motor Power | 750 W |
| Gross weight | 93 kg |
| Net weight | 78 kg |
| Package Size | 750 mm×610 mm×730 mm |
