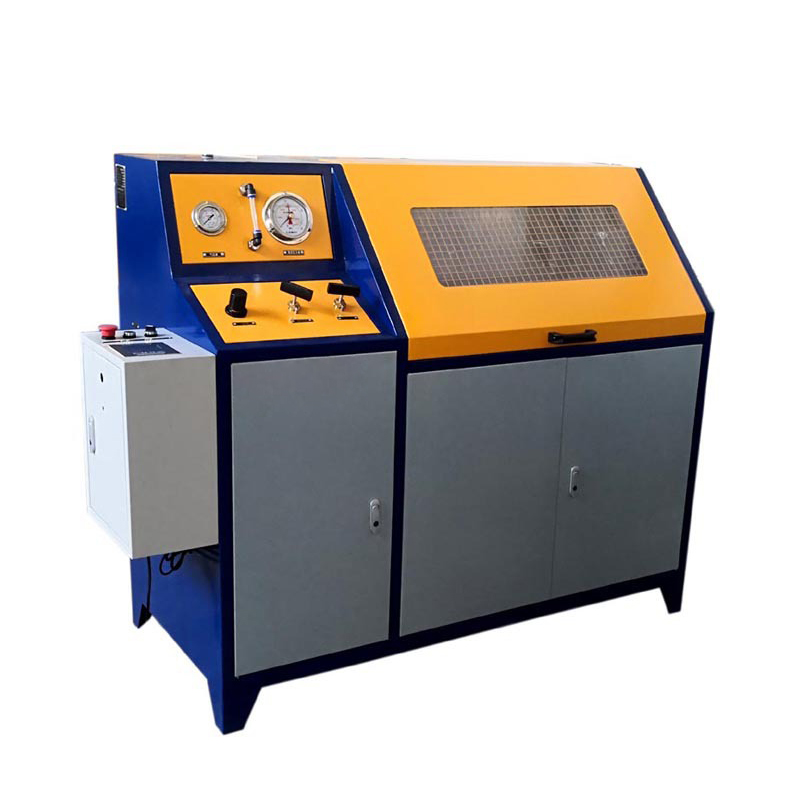

Hydraulic Test Stand Hydraulic Motor Test Stand Hydraulic Valve Test Bench Hydraulic Testing Machine


  • The pneumatic booster pump is used as the pressure source, the test pressure is high, up to 350MPa, the output pressure can be adjusted steplessly, and the boost rate can be set freely.
  • Multi-pumps are used for pressure supply, the output flow is larger, and the test range is wider, which can meet the pressure test requirements within the range of 1~350MPa.
  • All pump valves and pipelines are made of 316 stainless steel.

Note: Prices may vary depending on product capacity and quality.

$13,380.00

Compare

Hydraulic Test Stand Structure and composition

  • Pressure source: pressurize the liquid through the gas-liquid booster pump to meet the test pressure requirements.
  • Pneumatic coupler: filter and adjust the pressure of compressed air.
  • Speed control valve: adjust the driving air flow to adjust the action frequency of the supercharger, which can prolong the service life of the supercharger.
  • High pressure filter: filter the gas.
  • High-pressure cut-off valve: control the output and unloading of pressure.

Hydraulic Test Stand Technical Parameters

  • Driving air pressure range: 0.3-0.8 Mpa; and the output pressure is directly proportional to the driving air pressure.
  • Pressure test range: 0-300Mpa.
  • Working medium: water, hydraulic oil, emulsion.
  • The test information can be displayed by the automatic recorder.
  • Flow range: 0~20L/min.
  • Stepless adjustment of pressure and continuous liquid output can be realized.

Features of Hydraulic Test Stand

  • The pneumatic booster pump is used as the pressure source, the test pressure is high, up to 350MPa, the output pressure can be adjusted steplessly, and the boost rate can be set freely.
  • Multi-pumps are used for pressure supply, the output flow is larger, and the test range is wider, which can meet the pressure test requirements within the range of 1~350MPa.
  • All pump valves and pipelines are made of 316 stainless steel.
  • The hydraulic test bench adopts a computer plus single-chip two-level control system. The entire test process can be completed on the computer. The computer automatically generates pressure and time curves, stores various data, and can print out test reports at any time. The test process can also be manually controlled by a button switch.
  • During the test process, it can automatically perform pressure compensation, which has the characteristics of stable test pressure and high pressure test accuracy.
  • Computer automatic pressure relief and manual pressure relief double pressure relief device, more overpressure, timeout, leakage alarm system, making the whole set of equipment more safe and reliable.
  • The pressure test site is monitored by cameras in real time, which can realize unmanned pressure test site.

Typical application of the Hydraulic Test Stand

  • Water pressure test, pressure leak test
  • Valve pressure and burst test
  • Hydraulic pressure test and burst test of pressure vessel
  • Static pressure and burst tests of various metal and non-metal pipes
  • Pressure test of various petroleum tools
  • Pressure detection and calibration of pressure instruments
  • Inject chemical reagents into the autoclave
  • Pressure test and burst test of fire hose, fire extinguisher and other fire equipment
  • Detection of automobile braking system
