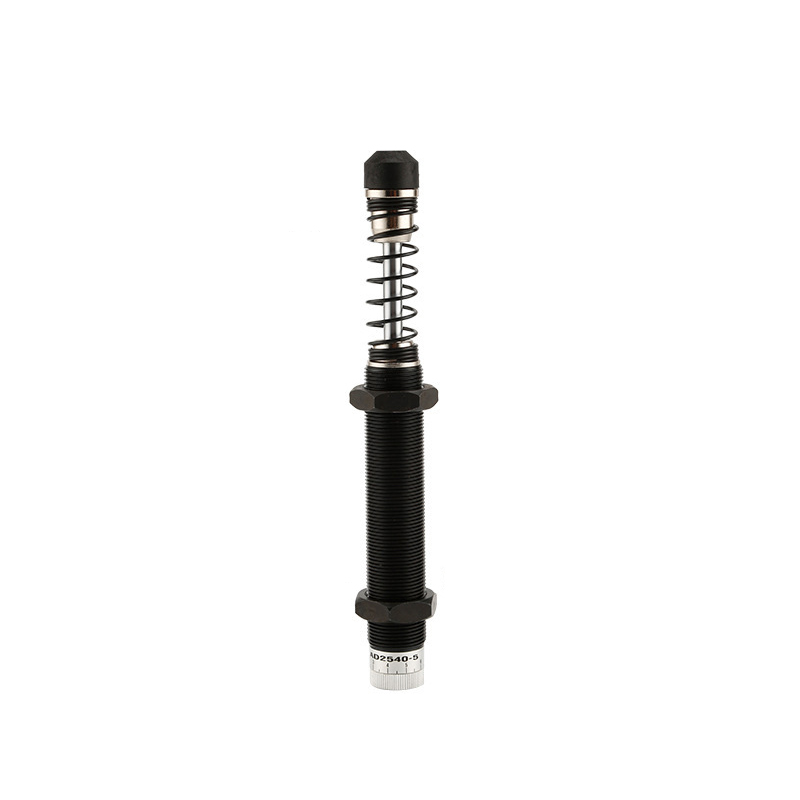

Hydraulic Shock Absorber AD2540 Pneumatic Pressure Adjustable Hydraulic Oil Pressure Buffer Damper Hydraulic Shock Absorber
- Maximum absorbed energy: 98Nm
- Maximum allowable thrust: 2000kg
- Allowable speed: 1.0～4.0m/sec
- Stroke: 40mm
- Thread interface: M25×1.5
- Working and ambient temperature: -10～80ºC
NOTE: Prices may vary by product model and material.
$68.00
CompareApplication of Hydraulic Shock Absorber: Used in manipulators, air pressure booths, automatic machinery, speed-adjustable drilling machines, grinding machines, cutting machines and other fields.
| Model | AD2540 |
| Maximum absorbed energy | 98Nm |
| Maximum allowable thrust | 2000kg |
| Allowable speed | 1.0～4.0m/sec |
| Stroke | 40mm |
| Thread interface | M25×1.5 |
| Working and ambient temperature | -10～80ºC |
Features of Hydraulic Shock Absorber
- The Hydraulic Shock Absorber uses a steel piston rod. The material has good guiding properties, and the spring is connected inside, which can automatically reset the stroke.
- High-quality oil seal improves sealing performance.
- PP nylon buffer head. Moderate hardness, not easy to break, long service life.
- The outer tube of medium carbon steel is harder than ordinary aluminum alloy and has better impact resistance.
- Hydraulic Shock Absorber cushioning speed stability. Used in manipulators, air pressure booths, automatic machinery, speed-adjustable drilling machines, grinding machines, cutting machines and other fields.
