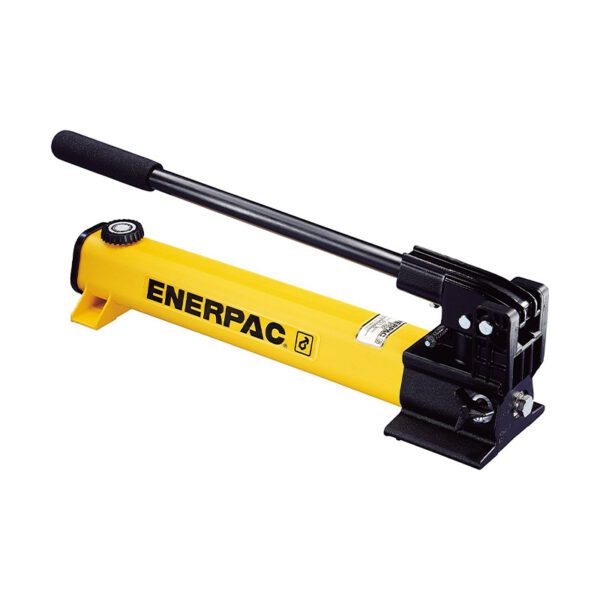

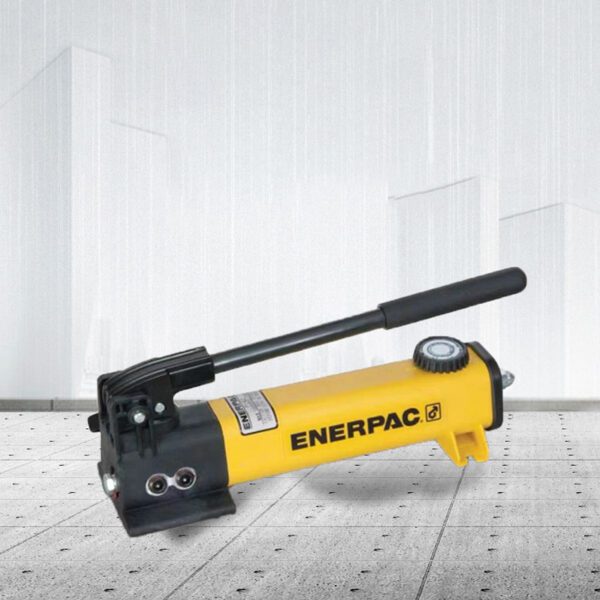

P-392 2 Speed lightweight hydraulic hand pump

This high-pressure, two-speed lightweight hydraulic hand pump is for lifting, bolting, or applying pressure in construction, manufacturing, and maintenance and repair applications. The nylon-covered aluminum base, glass-filled nylon reservoir, and fiberglass handle provide corrosion resistance and are lighter than steel hydraulic hand pumps. The hand pump has a pressure rating of 10,000 pounds per square inch (psi) and an internal pressure relief valve that protects against overloading the pump. The two-speed operation requires up to 78% fewer handle strokes than single-speed hydraulic hand pumps, and the handle locks into place for secure transport. The pump has a 3/8″ National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).

The pump has a first-stage pressure rating of 200 psi and a second-stage pressure rating of 10,000 psi. The oil displacement per stroke is 0.687 cubic in. during the first-stage and 0.151 cubic in. during the second stage. The reservoir has a capacity of 55 cubic in., the maximum handle effort is 93 lb., and the piston stroke is 1″. The pump measures 7.00 x 21.00 x 4.75 inches (H x W x D) and weighs 9 lb. (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.)
