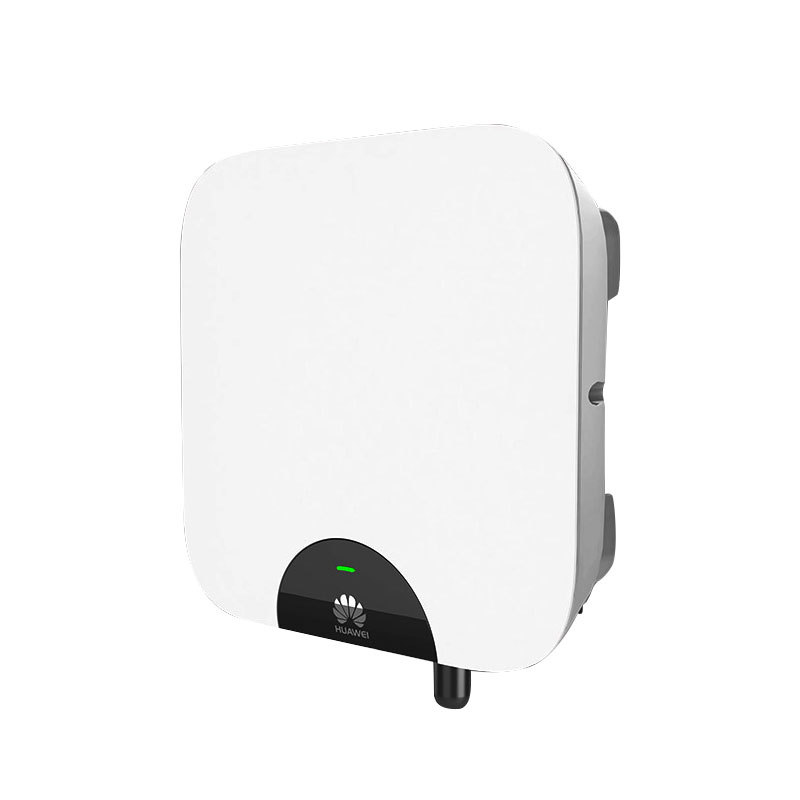

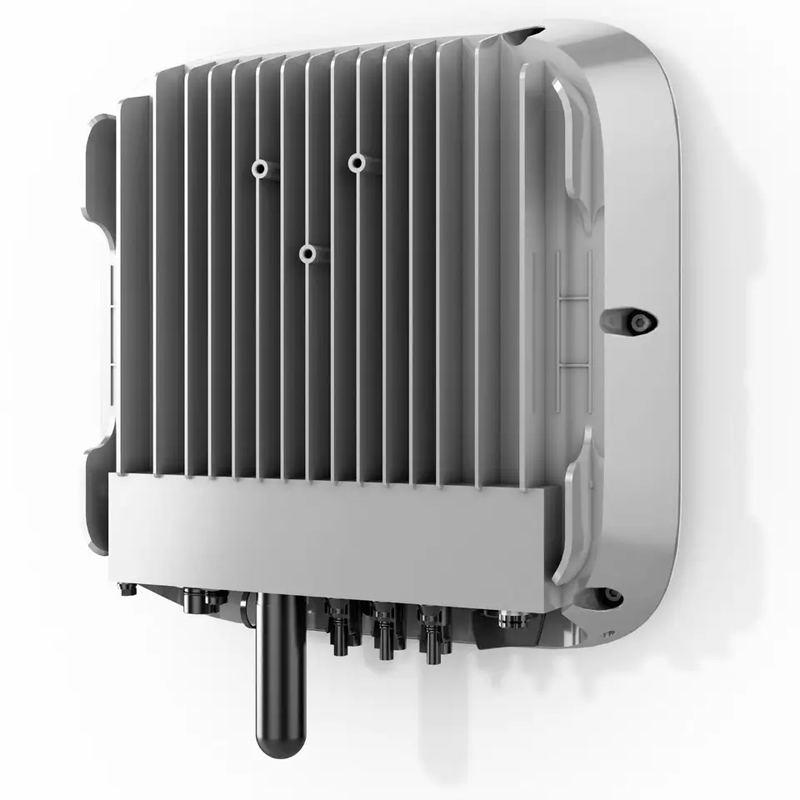

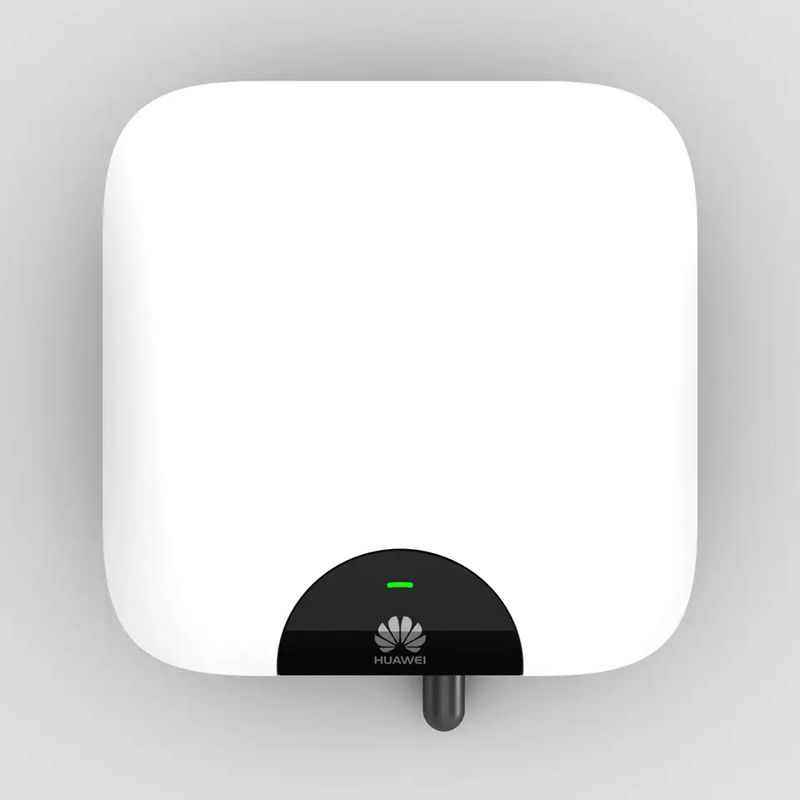

Huawei Solar Inverter SUN2000-10KTL-M1/huawei sun2000 5ktl m1 5KW/6KW/8KW/10KW Huawei hybrid inverter for solar energy system

Add to wishlist
Compare

Smart Energy Controller (Three Phase)
AI Powered Arcing Protection with Pinpoint Positioning
Compatible to SUN2000-450W-P optimizer*
Battery ready by direct Plug & Play, no extra device or any retrofit required
A 10KTL inverter allows 10KW full power AC output plus 10KW full power battery charge
High efficiency inverter topology, Max. Efficiency 98.6%

$1,425.00

Compare
Smart Energy Controller (Three Phase)
AI Powered Arcing Protection with Pinpoint Positioning
Compatible to SUN2000-450W-Poptimizer*
Battery ready by direct Plug & Play, no extra device or any retrofit required
A 10KTL solar inverter allows 10KW full power AC output plus 10KW full power battery charge
High efficiency inverter topology, Max. Efficiency 98.6%
Model No.
SUN2000 -3KTL-M1
SUN2000 -5KTL-M1
SUN2000 -6KTL-M1
SUN2000 -8KTL-M1
SUN2000 -10KTL-M1
SUN2000-12KTL-M1
Input Data(DC)
Max. DC Power
4.5 kW
7.5 kW
9 kW
12 kW
15 kW
18 kW
Max. DC Voltage
1100 V
1100 V
1100 V
1100 V
1100 V
1100 V
Rated DC Voltage
600 V
600 V
600 V
600 V
600 V
600 V
Min. DC Voltage to Start Feed In
200 V
200 V
200 V
200 V
200 V
200 V
Max. DC Current
22 A
22 A
22 A
22 A
22 A
22 A
MPP(T) Voltage Range
140~980 V
140~980 V
140~980 V
140~980 V
140~980 V
140~980 V
No of MPP Trackers
2
2
2
2
2
2
DC Inputs
2
2
2
2
2
2
Output Data (AC)
Max. AC Power
3.3 kW
5.5 kW
6.6 kW
8.8 kW
11 kW
12 kW
Output AC Voltage Range
220~400 V
220~400 V
220~400 V
220~400 V
220~400 V
220~400 V
Max. AC Current
8.5 A
10.1 A
13.5 A
16.9 A
18.4 A
Frequency
50, 60 Hz
50, 60 Hz
50, 60 Hz
50, 60 Hz
50, 60 Hz
50, 60 Hz
Power Factor (cosθ)
0.8
0.8
0.8
0.8
0.8
0.8
Distortion (THD)
< 3 %
< 3 %
< 3 %
< 3 %
< 3 %
< 3 %
No of feed-in phases
3
3
3
3
3
3
Max. Efficiency
98.20%
98.40%
98.60%
98.60%
98.60%
98.60%
Euro Efficiency
96.70%
97.50%
97.70%
98%
98.10%
98.20%
General Data
Dimensions (H/W/D)
525x470x146.5 mm
525x470x146.5 mm
525x470x146.5 mm
525x470x146.5 mm
525x470x146.5 mm
Weight
17 kg
17 kg
17 kg
17 kg
17 kg
Operating Temperature
-25 ~ +60 ℃
Protection Class
IP65
Humidity
0-100 %
Cooling
Natural
Max. Altitude
4000 m
Interface
RS 485, Ethernet, WLAN
Display
LED
Protection Features
Protection Features
Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Residual Current Device
(RCD), Surge Protection, Isolation Monitoring
Model No.
SUN2000 -3KTL-L1
SUN2000 -4KTL-L1
SUN2000 -5KTL-L1
SUN2000 -6KTL-L11
Input Data(DC)
Max. DC Power
4.5 kW
6 kW
7.5 kW
9 kW
Max. DC Voltage
600 V
600 V
600 V
600 V
Rated DC Voltage
360 V
360 V
360 V
360 V
Min. DC Voltage to Start Feed In
100 V
100 V
100 V
100 V
Max. DC Current
25 A
25 A
25 A
25 A
MPP(T) Voltage Range
90~560 V
90~560 V
90~560 V
90~560 V
No of MPP Trackers
2
2
2
2
DC Inputs
2
2
2
2
Output Data (AC)
Max. AC Power
3.3 kW
4.4 kW
5.5 kW
6 kW
Max. AC Current
15 A
20 A
25 A
27.3 A
Frequency
50, 60 Hz
50, 60 Hz
50, 60 Hz
50, 60 Hz
Power Factor (cosθ)
0.8
0.8
0.8
0.8
Distortion (THD)
< 3 %
< 3 %
< 3 %
< 3 %
No of feed-in phases
1
1
1
1
Max. Efficiency
98.30%
98.40%
98.40%
98.40%
Euro Efficiency
97.30%
97.50%
97.80%
97.80%
General Data
Dimensions (H/W/D)
365x365x156 mm
365x365x156 mm
365x365x156 mm
365x365x156 mm
Weight
12 kg
12 kg
12 kg
12 kg
Operating Temperature
-25 ~ +60 ℃
Protection Class
IP65
Humidity
0-100 %
Cooling
Natural
Max. Altitude
4000 m
Interface
RS 485, Ethernet, WLAN
Display
LED
Protection Features
Protection Features
Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Reverse Polarity
Protection, Surge Protection, Isolation Monitoring
