Heavy Duty Truck Lift – Mobile Column Tire Hoist for Workshops
This heavy-duty welding lift system ensures uniform welding strength and high-quality construction. Equipped with hydraulic support, mechanical locks, and automatic leveling, it delivers stable and synchronized operation. ZigBee wireless transmission enables real-time monitoring, while peak limit switches provide automatic stopping at maximum lift. Each column passes 1.5 times the safety load test, and over-load protection guarantees safe, reliable operation. Automatic troubleshooting and debugging enhance efficiency and ease of use.
Compare

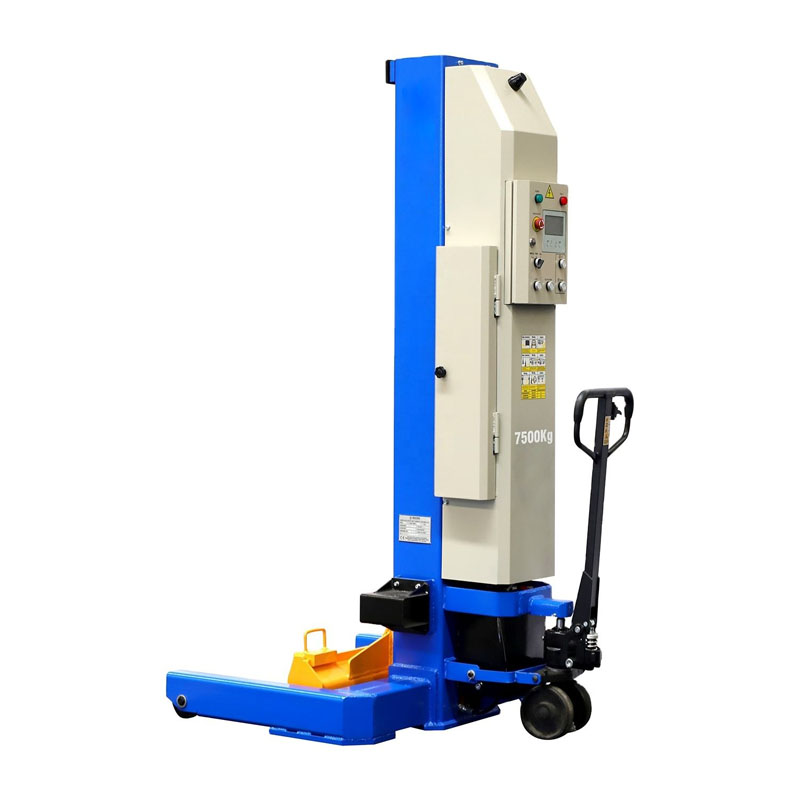

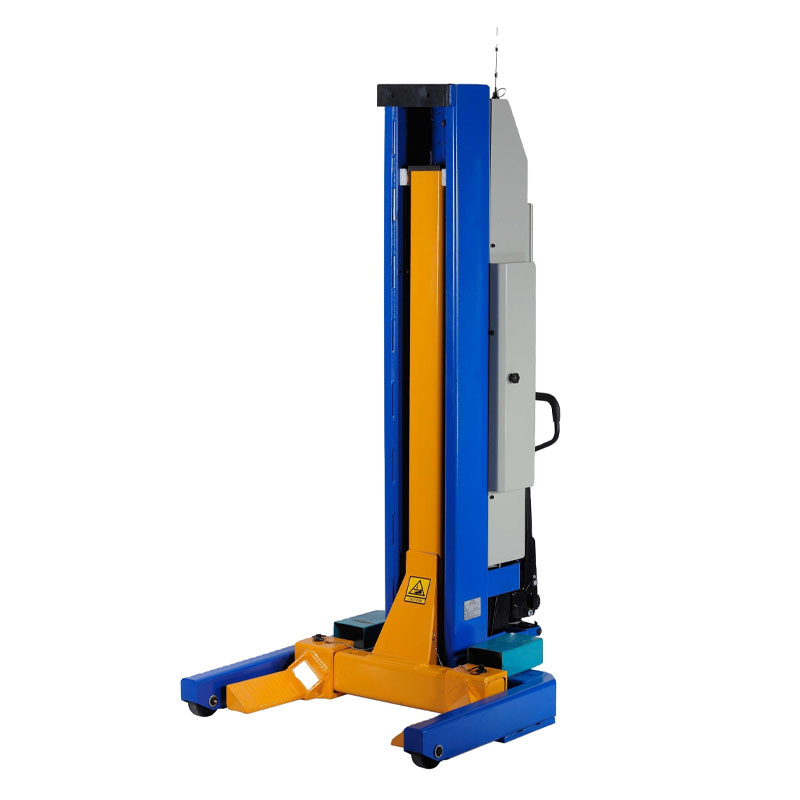

Product Description of Mobile Column Tire Hoist
This welding lift system offers high-quality, uniform construction with hydraulic support and mechanical locks. Automatic leveling ensures synchronized operation, while ZigBee wireless transmission allows real-time monitoring. Peak limit switches enable automatic stop, and each column passes 1.5 times the safety load test. Over-load protection and automatic troubleshooting ensure safe, efficient, and reliable lifting.
Product Parameter Table
| Capacity per column | 8.5 ton/column |
| Lifting stroke | 1700mm |
| Time of full rise | ≤90 sec. |
| Voltage | DC 24V Battery |
| Charge voltage | 220V/ 1Ph/50Hz |
| Weight per column | 800kgs |
| Tire diameter(Adjustable fork arm) | 500～1120mm |
| Rated hydraulic pressure | 18 MPa |
| Mobile axle stands (optional) | Elective fitting |
| Newtons required to move lifts | 40N (maximum static friction)/30N (kinetic friction) |
| Charging time | 0~90%(7H)/90%~100%(2H) |
Main features
-
High-quality construction
Uniform welding strength ensures durable and reliable lifting system. -
Hydraulic support with mechanical locks
Provides stable, secure operation and enhanced safety. -
Automatic leveling and synchronization
Ensures precise and coordinated movement across all columns. -
Smart monitoring and safety devices
Wireless ZigBee signal, peak limit switches, and over-load protection enable safe and real-time operation. -
High capacity and intelligent troubleshooting
Each column passes 1.5 times safety load test; automatic debugging improves operational efficiency.
Application scenarios
-
Truck and heavy vehicle maintenance
Ideal for lifting, servicing, and inspecting trucks, buses, and commercial vehicles. -
Fleet service centers
Suitable for tire replacement, brake and suspension maintenance, and underbody inspection. -
Workshops and garages
Perfect for heavy-duty vehicle maintenance in limited or multi-vehicle spaces. -
Specialized vehicle maintenance
Supports fire trucks, sanitation vehicles, and other custom heavy vehicles. -
Industrial lifting operations
Ensures safe, precise, and efficient lifting for large-scale maintenance tasks.
Contact us to get your quotation now.
