30 square plate heat exchanger industrial grade stainless steel heat exchanger steam boiler hydraulic oil seawater aquaculture heat exchanger
We pay attention to many details, buy and use with confidence
$2,588.00
CompareThe plate heat exchanger is a high-efficiency heat exchanger composed of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, and heat exchange is performed through the plates. Plate heat exchanger is an ideal equipment for liquid-liquid, liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, small heat loss, compact and light structure, small footprint, wide application and long service life. In the case of the same pressure loss, its heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, and the floor area is one-third of that of the tube heat exchanger, and the heat recovery rate can be as high as 90%.
There are two main types of plate heat exchangers: frame type (detachable type) and brazed type. The plate forms mainly include herringbone corrugated plates, horizontal flat corrugated plates and tumor-shaped plates.

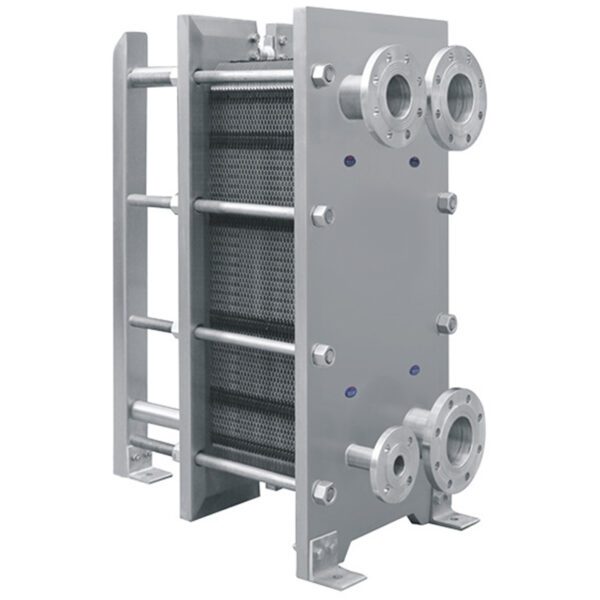

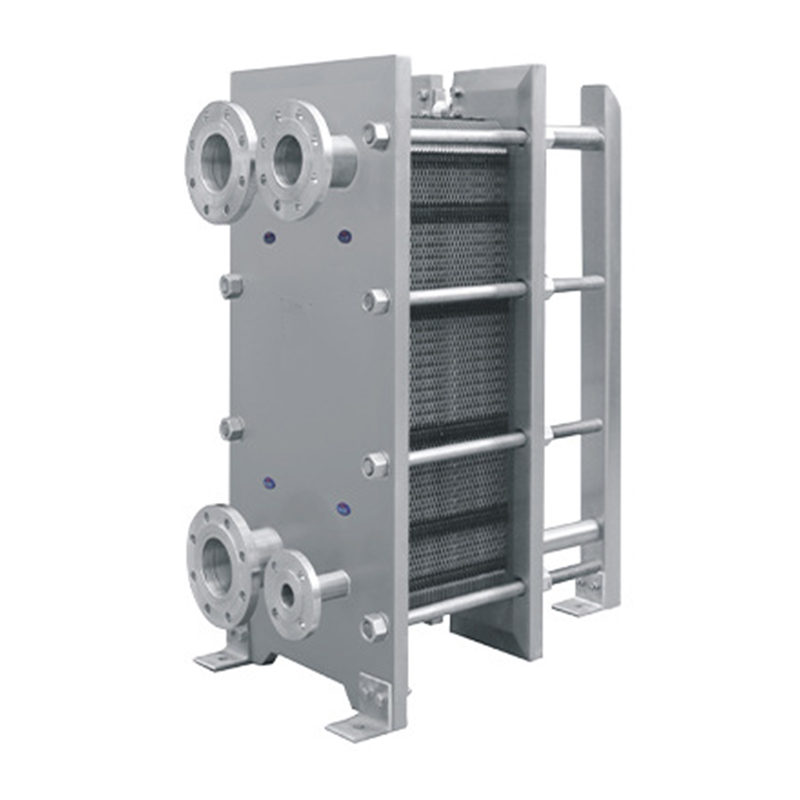

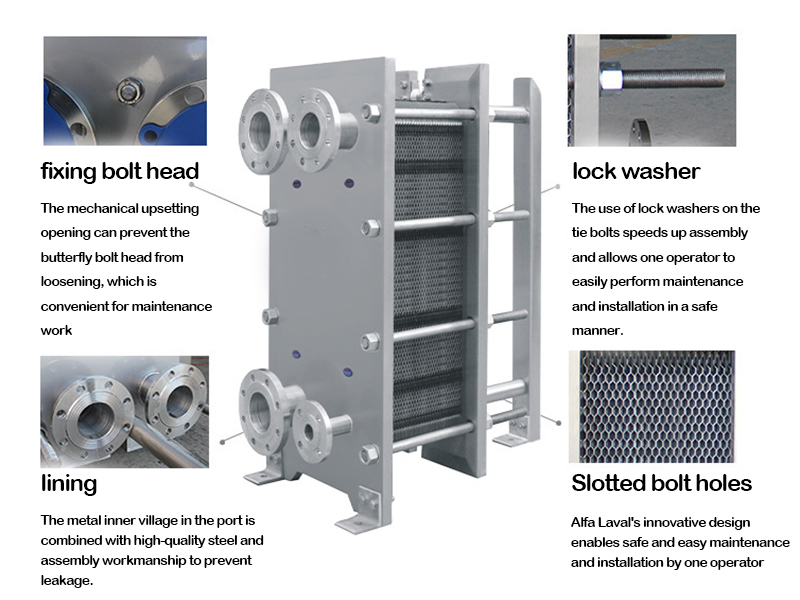

The detachable plate heat exchanger is made of many punched corrugated thin plates at certain intervals, sealed with gaskets around them, and overlapped and compressed with frames and compression screws. The four corner holes of the plates and gaskets form fluid separation. At the same time, the cold and hot fluids are reasonably separated, so that they flow in the flow channels on both sides of each plate and exchange heat through the plates.
The optimal design calculation of a plate heat exchanger is to reasonably determine its model, process and heat transfer area under the condition of known temperature difference ratio.
Based on 0 reviews
Be the first to review “30 square plate heat exchanger industrial grade stainless steel heat exchanger steam boiler hydraulic oil seawater aquaculture heat exchanger”
