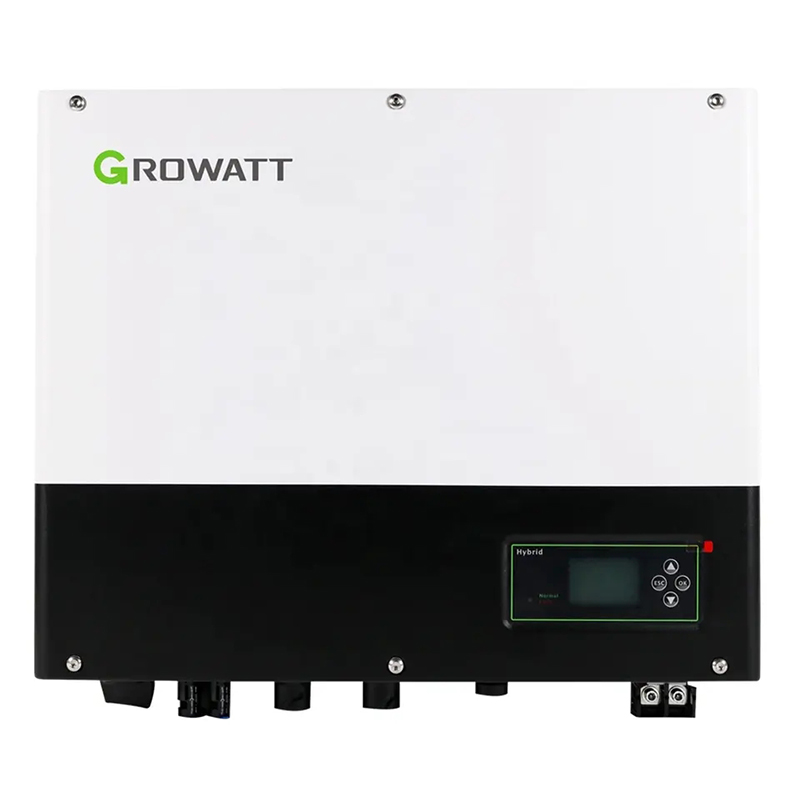

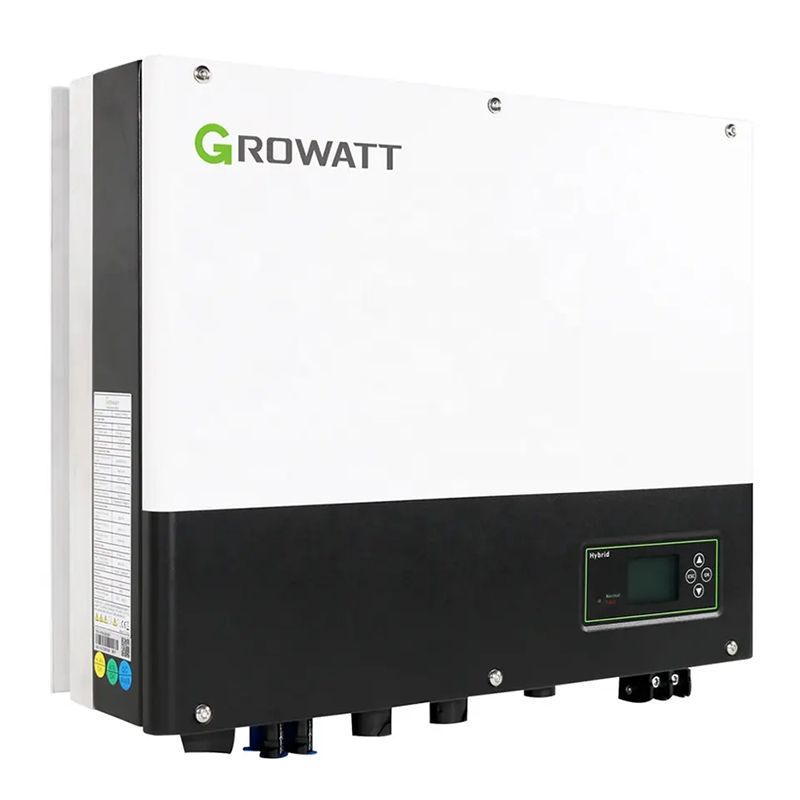

Growatt 5kw 10kw Hybrid Solar Inverter with Mppt Trackers SPH 5000TL3-BH UP~SPH 10000TL3-BH UP

Add to wishlist
Compare

It also includes following devices to have a Complete running system.
– Generator or Utility
– PV modules
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner

$2,300.00

Compare
Solar Inverter Datasheet
SPH 5000TL3-BH UP
SPH 6000TL3-BH UP
SPH 8000TL3-BH UP
SPH 10000TL3-BH UP
Max Input PV
7500W
9000W
12000W
15000W
Max DC Voltage
1000V
Start Voltage
120V
MPP Voltage Range
120V-1000V/600V
No. MPP Trackers
2
No. PV Strings Per MPP
1
Battery Voltage Range
100-550V
Max Charging and discharhing currents
25A
Type of battery
Lithium/Lead Acid
Protection Degree
IP65
Cooling
Nature
Dimension
505x453x198mm
Weight
30kg
Max efficiency
97.8%
98%
98.2%
98.2%
Certificate
CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11，EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS
4777 , G98, TOR Erzeuger

How does it work?
The above illustration shows basic application on of this inverter.
It also includes following devices to have a Complete running system.
– Generator or Utility
– PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner
