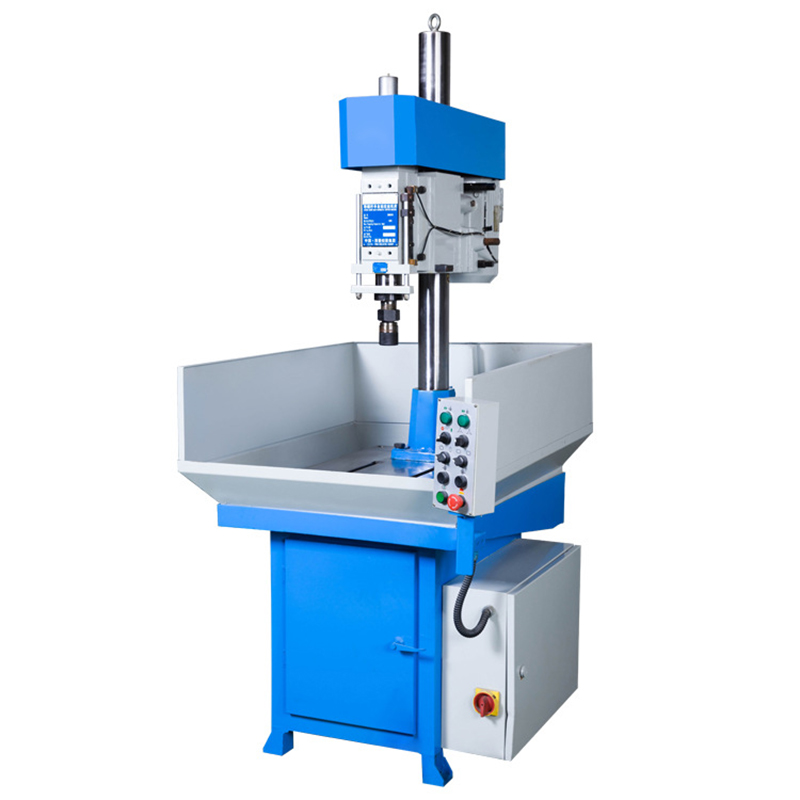

Electric Tapping Machine Vertical M16 Maximum Tapping Diameter High Precision Automatic Tapping Machine with Gear Spacing

Add to wishlist
Compare
  • The feed of this machine tool is driven by the exchange gear
  • The tapping depth can be adjusted with a fixed-range knob
  • This machine adopts quick-change tapping chuck
  • There is an emergency return stop button at the convenient position
  • The exchange gear cover has a safety setting (open and power off)
  • The electrical system of the machine tool can realize the automatic cycle of the spindle feed and the jog single cycle
  • The machine uses one pitch per revolution

$3,618.00 – $4,166.00

Compare

Technical Parameters of the Electric Tapping Machine

Maximum Tapping Diameter M16 mm
Column diameter 85 mm
Spindle travel 65 mm
Distance from spindle center to column busbar 257.5 mm
The maximum distance from the spindle end to the base table 670 mm
Spindle taper MT3
Spindle speed 250,400,590 r/min
Spindle speed series 3
Base size 350×350 mm
Headstock travel 405 mm
Total height 1110 mm
Electric motor 1.5 kw
Comply with the automatic feed pitch used by this machine tool 1.00/1.25/1.5/2.0mm

16/14/13/12/11/10/9/8/7TPI
Gross/Net Weight No rack 280kg/300kg
Package Size No rack 1060×640×1320 mm

Features of the Electric Tapping Machine

  1. The feed of this machine tool is driven by the exchange gear
  2. The tapping depth can be adjusted with a fixed-range knob
  3. This machine adopts quick-change tapping chuck
  4. There is an emergency return stop button at the convenient position
  5. The exchange gear cover has a safety setting (open and power off)
  6. The electrical system of the machine tool can realize the automatic cycle of the spindle feed and the jog single cycle
  7. The machine uses one pitch per revolution

SKU: N/A Category: Tags: , , ,

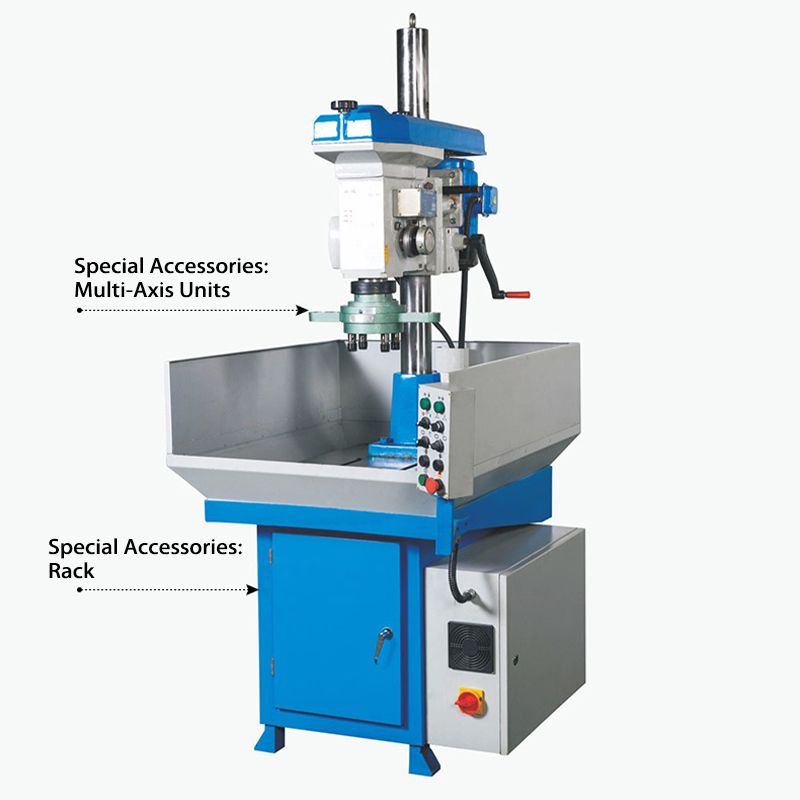

MODEL
