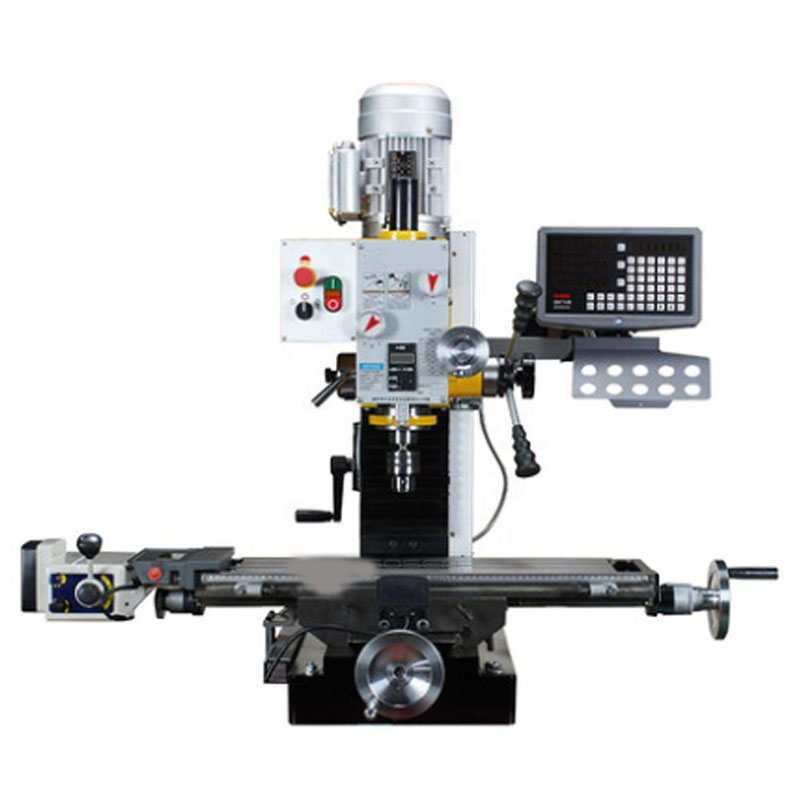

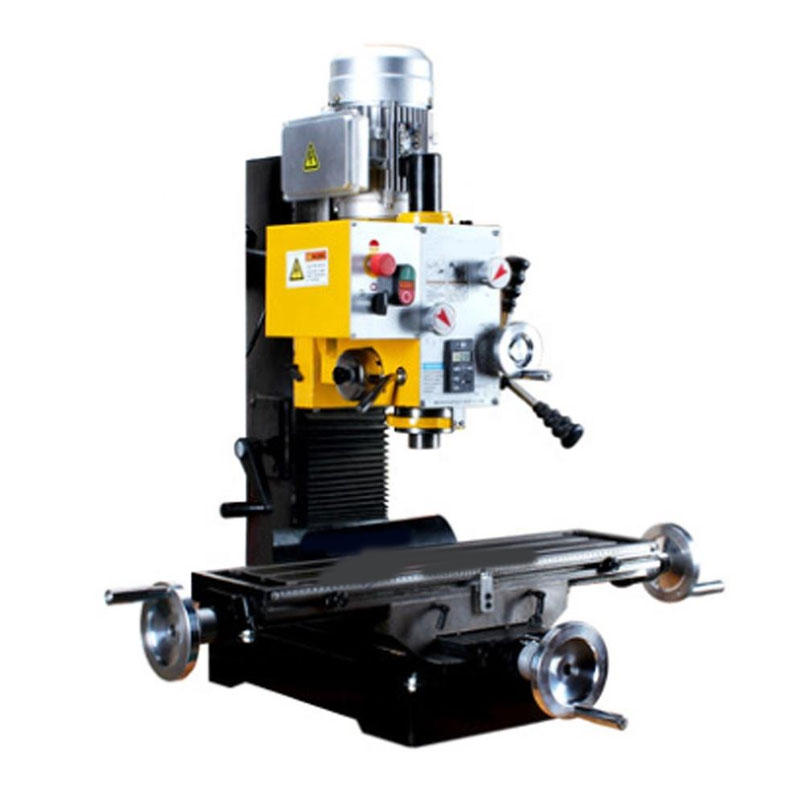

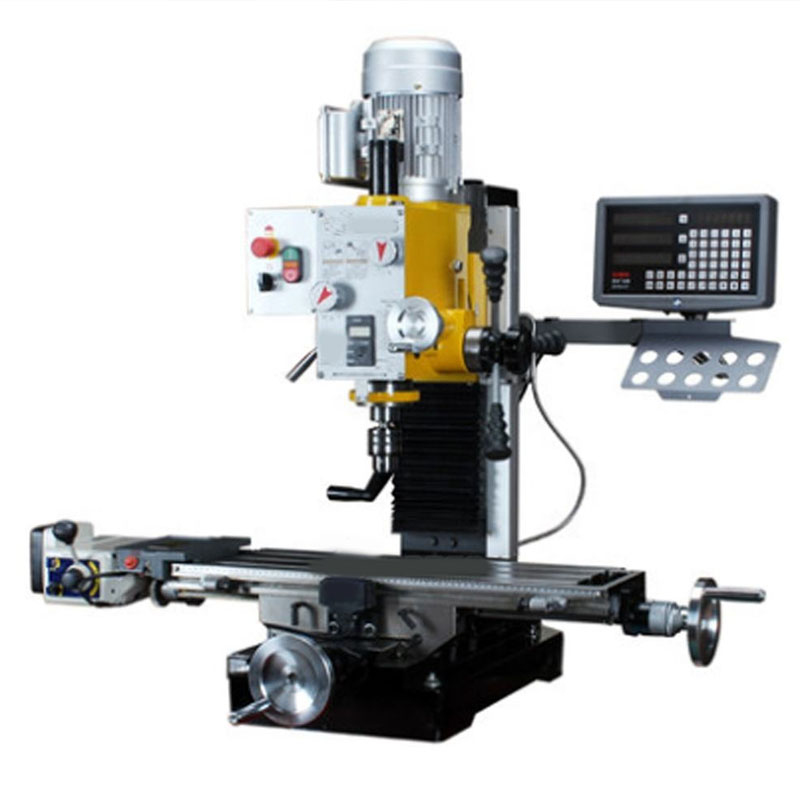

Desktop Metalworking Drill/Mill Machine for Prototyping and Small Parts.
The Desktop Metalworking Drill/Mill Machine is the ultimate space-saving solution, classifying as essential Metalworking Machinery for precision fabrication. This 2-in-1 dual functionality unit seamlessly integrates precision drilling and light-duty vertical milling capabilities, making it indispensable for rapid Prototyping, Model Making, and the manufacturing of intricate Small Parts. Its compact benchtop design is powered by a variable speed motor and built with robust cast iron construction, ensuring the necessary stability and vibration dampening for high-accuracy work on aluminum, brass, and plastics.
Compare
Technical Parameters of the Metalworking Machinery
| Parameter | Value |
| Weight (KG) | 205 |
| Product Name | Metal desktop drilling and milling machine |
| End face milling capability | 63mm |
| Spindle taper | MT3 |
| Table size | 700*180mm |
| function | Drilling and milling |
| Workbench travel (X) (millimeters) | 410 |
| Workbench travel (Z) (millimeters) | 310mm |
| Spindle taper | MT3 |
| Spindle speed range (revolutions per minute) | 95 -1420 r.p.m |
| Maximum weight capacity of workbench (kg) | 20 |
| Maximum drilling diameter | 32mm |
| End milling capability | 20mm |
| Spindle travel | 85mm |
| Spindle box rotation angle | Rotate 90 degrees |
| type | Desktop milling drilling |
Product description：
This Desktop Drilling and Milling Machine is the ideal entry-level yet powerful solution for creators, educators, and small workshops. Classified as essential Metalworking Machinery, this compact benchtop unit provides dual functionality, seamlessly transitioning between precision drilling and light-duty milling operations. It is specifically designed to handle materials like aluminum, brass, and plastics, making it perfect for rapid Prototyping, intricate Model Making, and the manufacturing of Small Parts with high accuracy. Its space-saving design and intuitive control system bring industrial capabilities right to your workbench, making complex metal fabrication accessible and efficient.
Applications：
1.Educational and Vocational Training
2.Jewelry and Watch Repair
3.Rapid Tooling and Fixture Fabrication
4.Custom Gunsmithing and Hobby Machining
Contact us to get your quotation now.
