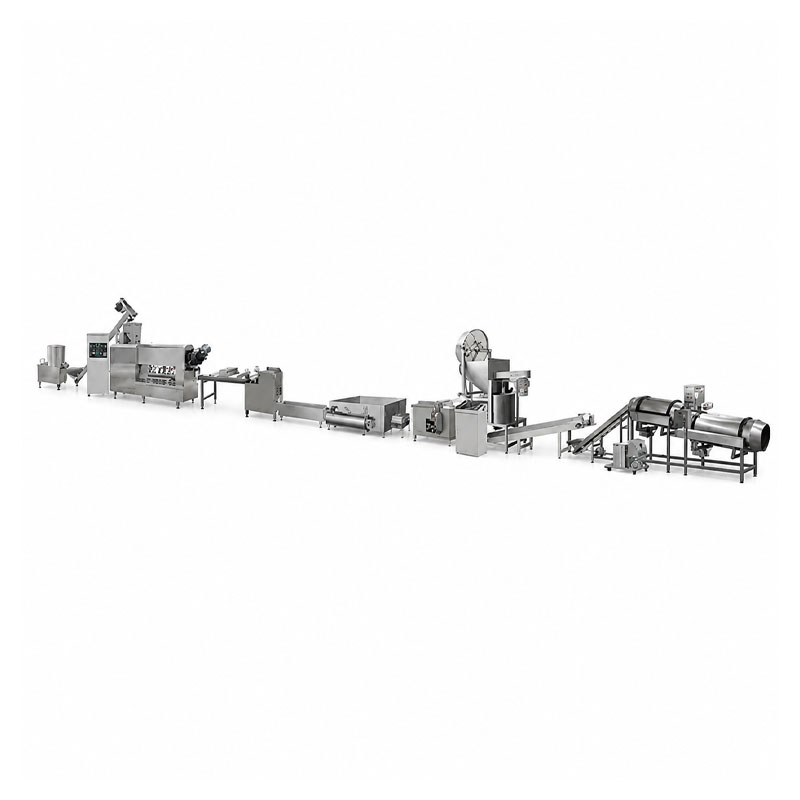

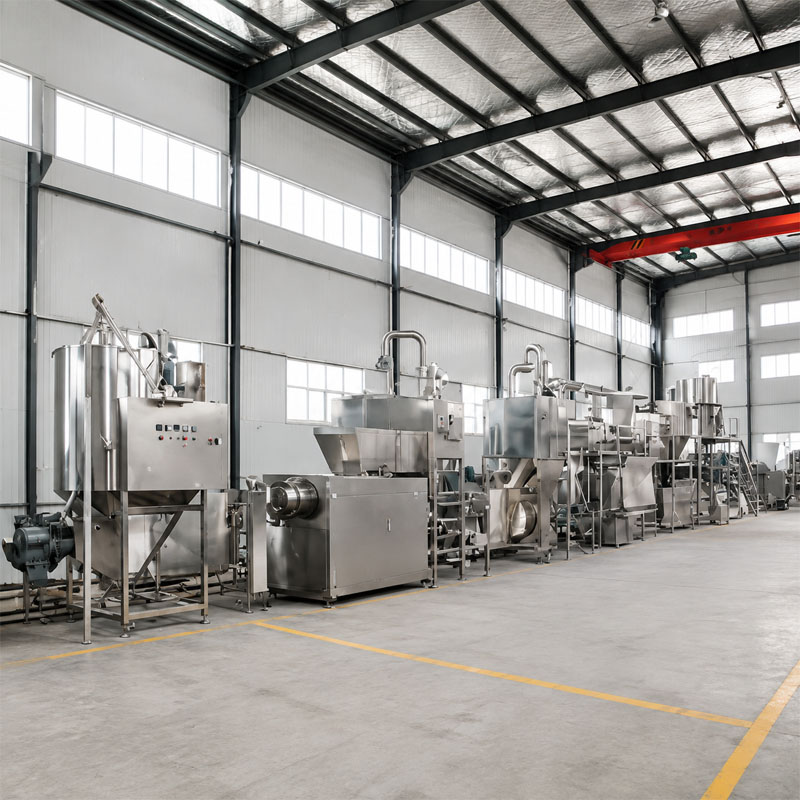

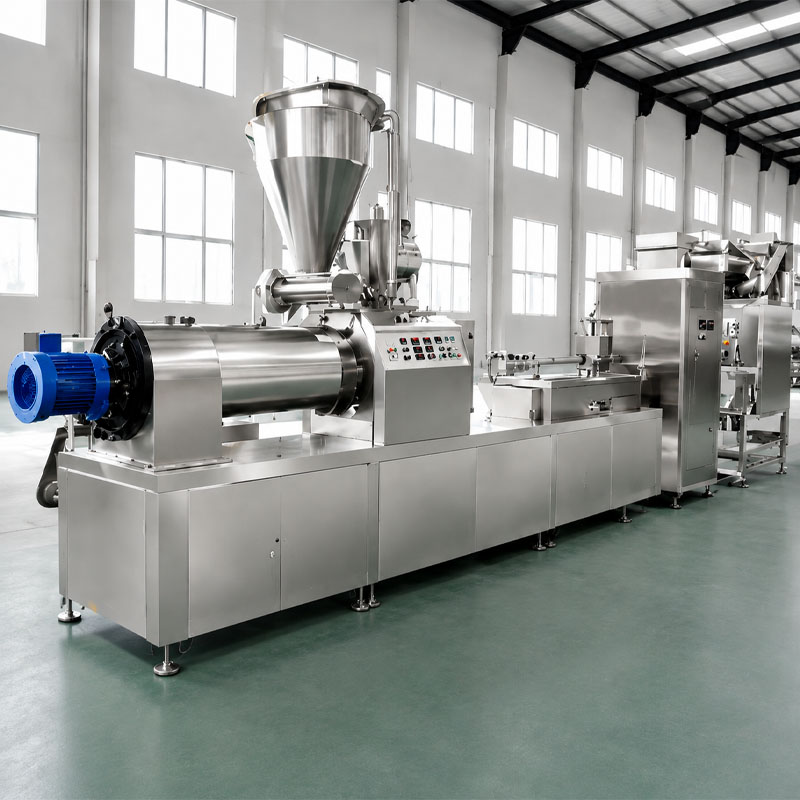

Complete Puffed Snack Making Line with Extrusion System

Product introduction of Puffed Snack Making Line

The puffed snack making line provides an efficient solution for producing various crispy expanded snack products with stable quality and high productivity. The system processes ingredients such as cornmeal, rice flour, and starch through controlled mixing, feeding, extrusion, drying, and seasoning operations.

During extrusion, the prepared material is cooked under high temperature and pressure, then rapidly expanded through pressure release to create the characteristic porous structure and crispy texture of puffed snacks. Different dies can be replaced to achieve various product shapes and sizes, helping manufacturers develop diversified snack products.

Designed for continuous operation, the production line reduces manual handling and improves processing consistency. Its integrated structure offers convenient operation, reliable performance, and flexible production capability. It is suitable for manufacturers producing expanded snacks, crispy grain foods, and other extruded snack products.

Working Principle

The puffed snack making line works by using extrusion expansion technology to transform grain-based ingredients into crispy snack products. First, raw materials such as cornmeal, rice flour, or starch are mixed with water to form a uniform mixture. The material is then continuously fed into the extruder, where high temperature, pressure, and mechanical shear cook and soften the mixture.

When the processed material passes through the die, the sudden pressure release causes rapid expansion, forming the unique porous structure of puffed snacks. The shaped products are then dried to remove excess moisture and improve crispness. Finally, seasoning is applied evenly to enhance flavor, completing the production process.

System Structure

The puffed snack production line consists of several integrated units for continuous snack manufacturing.

1. Mixing System
Uniformly blends raw materials and water to prepare the required formulation.

2. Feeding System
Transfers the mixed ingredients into the extruder at a stable and controlled rate.

3. Extrusion System
Cooks and expands materials under controlled temperature and pressure to form snack products.

4. Forming and Cutting System
Shapes and cuts the expanded products according to different product requirements.

5. Drying System
Removes moisture from snacks to achieve the desired crisp texture and stability.

6. Seasoning System
Applies flavors, oil, or coatings evenly to improve product taste.

7. Control System
Controls the operation of each processing unit to ensure stable production performance.

Working Process

1. Raw Material Preparation

Selected ingredients such as cornmeal, rice flour, or starch are mixed with water to achieve a uniform formulation.

2. Extrusion Cooking

The prepared mixture enters the extruder, where heat, pressure, and mechanical force cook and condition the material.

3. Expansion and Forming

The material expands instantly after passing through the die, creating the desired snack structure and shape.

4. Drying Process

The expanded snacks are dried to reduce moisture content and improve crispness and storage stability.

5. Seasoning Application

Flavors, coatings, or seasonings are evenly applied to enhance taste and product appeal.

Product Parameter Table

Parameter	Specification
Production Capacity	200–260 kg/h
Installed Power	95 kW
Power Consumption	68 kW
Production Process	Mixing, Extrusion, Drying, Seasoning
Applicable Material	Corn flour, rice flour, starch
Product Type	Puffed snack, extruded snack
Machine Dimension	22000 × 1800 × 2500 mm
Operation Type	Automatic production

Main Features

High Production Efficiency

The continuous processing design enables stable output and meets commercial snack production requirements.

Flexible Product Development

Different dies can be selected to create various snack shapes and product styles.

Consistent Snack Quality

Controlled extrusion conditions ensure uniform expansion, texture, and appearance.

Easy Operation

The integrated system simplifies production management and reduces manual operation requirements.

Wide Material Compatibility

Suitable for processing different grain-based ingredients, starches, and mixed formulations.

Applications

1. expanded grain snack production
   For manufacturing lightweight and crispy snacks from grain-based ingredients.
2. corn snack processing
   Suitable for producing corn-based puffed snack products.
3. rice snack manufacturing
   Used for processing expanded rice-based food products.
4. crispy snack production
   Designed for creating crunchy snack products with different textures.
5. starch based snack processing
   Suitable for starch formulations requiring expansion and shaping.
6. extruded food production
   Applied in various extruded snack and ready-to-eat food manufacturing processes.

Why Choose This Production Line

• Continuous automated snack processing
• Stable extrusion and expansion performance
• Multiple product shape options
• Efficient drying and seasoning process
• Reduced labor requirements
• Suitable for different snack formulations
• Reliable operation for commercial production

FAQ

1. What products can this production line produce?

It can produce puffed snacks, expanded grain foods, crispy snacks, and other extruded food products.

2. What raw materials can be processed?

The line can process cornmeal, rice flour, starch, and other grain-based ingredients.

3. How are puffed snacks formed?

The materials are cooked and expanded through high temperature, pressure, and rapid pressure release during extrusion.

4. Can the snack shapes be customized?

Yes. Different dies can be installed to produce various shapes and sizes.

5. Is the production process automatic?

Yes. The system integrates feeding, extrusion, drying, and seasoning processes.

6. What is the function of the drying unit?

The drying unit removes moisture from products to improve crispness and shelf stability.

7. Can different flavors be produced?

Yes. The seasoning system allows different flavors and coatings to be applied.

8. Is this line suitable for large-scale production?

Yes. It is designed for continuous operation with stable output and efficient processing.
