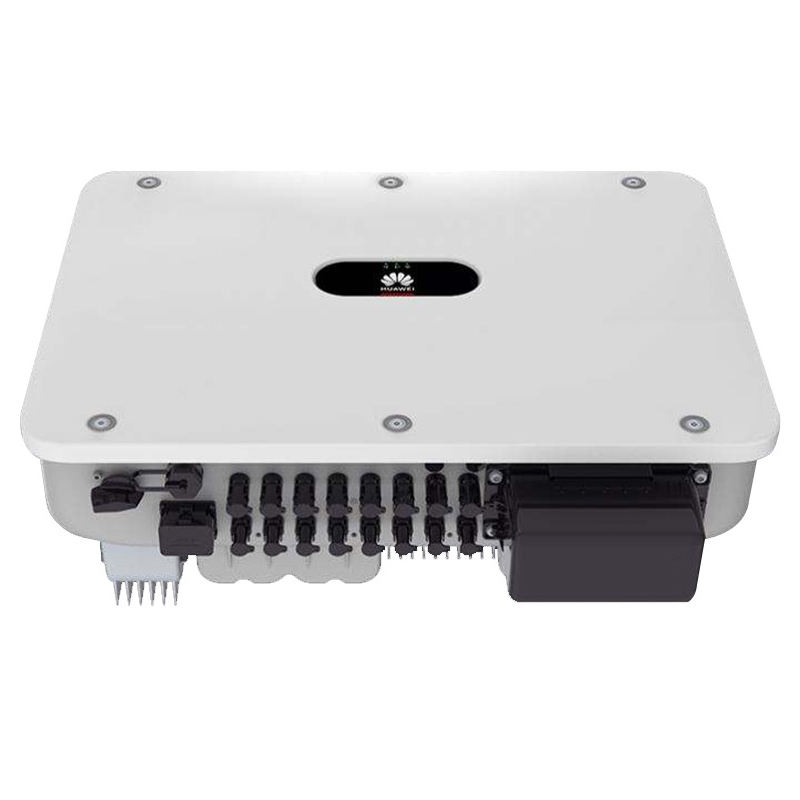

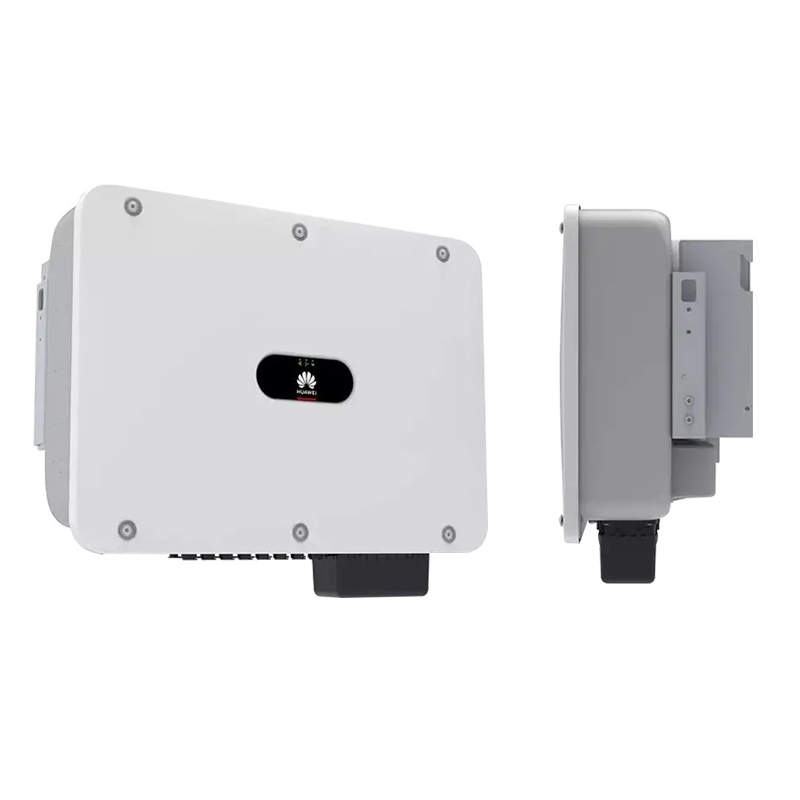

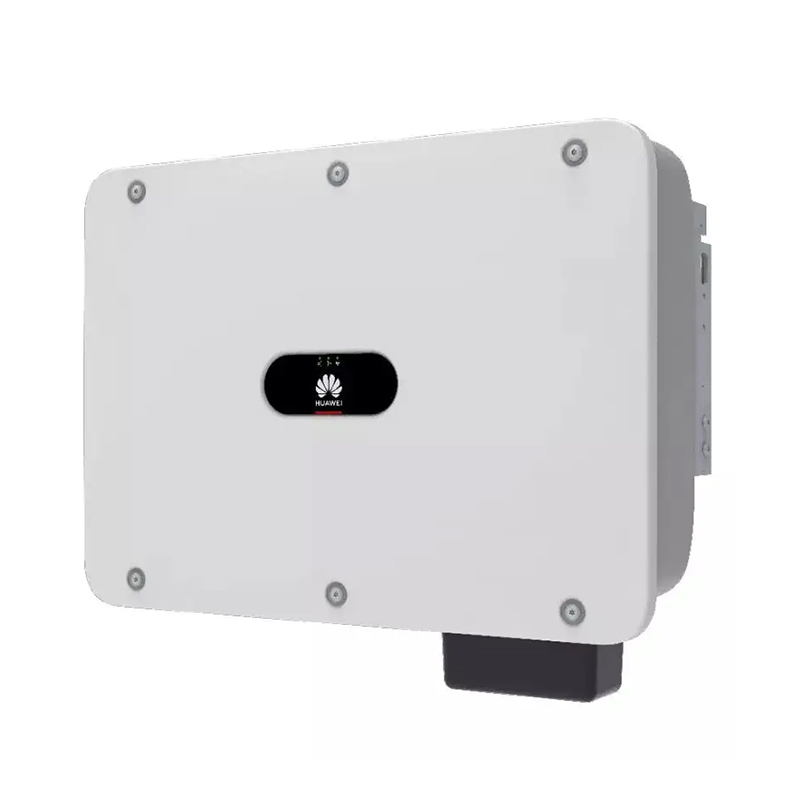

Best price solar inverter 30kw huawei 3 phase huawei sun2000-30ktl-m3 5kw 6kw 10kw 12kw on grid inverter
efficient power generation
High conversion efficiency, high efficiency topological structure can guarantee high conversion efficiency under various irradiation conditions
Intelligent operation and maintenance
Intelligent IV diagnosis, Al+ big data identification and online full detection of string faults, free of manual on-site diagnosis/operation and maintenance/revenue reporting to assist in accurate operation and maintenance
$1,823.00
Compare
|
Datasheet
|
|||
|
Model Name
|
SUN2000-36KTL-M3
|
SUN2000-40KTL-M3
|
|
|
Input DC
|
|||
|
Recommended max. PV power
|
33kW
|
40kW
|
44kW
|
|
Max. input voltage
|
1100V
|
||
|
Start-up voltage
|
200V
|
||
|
MPPT voltage range
|
200V-1000V
|
||
|
Max.current per MPPT
|
26A
|
||
|
MPPT number/Max. input strings number
|
8
|
||
|
Output (AC)
|
|||
|
Rated output power
|
3010kW
|
36kW
|
40kW
|
|
Rated output voltage
|
230 Vac / 400 Vac / 480 Vac, 3W/N+PE
|
||
|
Rated grid frequency
|
50/60Hz
|
||
|
Max. output current
|
47.9A
|
58.0A
|
63.8A
|
|
Power Factor
|
0.8leading – 0.8laging
|
||
|
THDi
|
<3%
|
||
|
Efficiency
|
|||
|
Max. efficiency
|
98.7%
|
||
|
EU efficiency
|
98.4%
|
||
|
General Data
|
|||
|
Dimensions (W*H*D)
|
640 x 530 x 270 mm
|
||
|
Weight
|
43kg
|
||
|
Topology
|
Transformerless
|
||
|
Self consumption
|
<5.5W
|
||
|
Operating temperature range
|
-25 ~ +60°C
|
||
|
Relative humidity
|
0-100%RH
|
||
|
Ingress protection
|
IP66
|
||
|
Cooling concept
|
Natural convection
|
||
|
Max. operation altitude
|
4000m
|
||
|
Safety Grid Connection Standards
|
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683,IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C
15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699,P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7,NRS 097-2-1, AS/NZS 4777.2, DEWA |
||
|
Features
|
|||
|
DC Connector
|
Staubli MC4
|
||
|
AC Connector
|
Waterproof Connector + OT/DT Terminal
|
||
|
Display
|
LED Indicators, Integrated WLAN + FusionSolar APP
|
||
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
||
| Specification | 530w, 535w, 545w |
|---|
