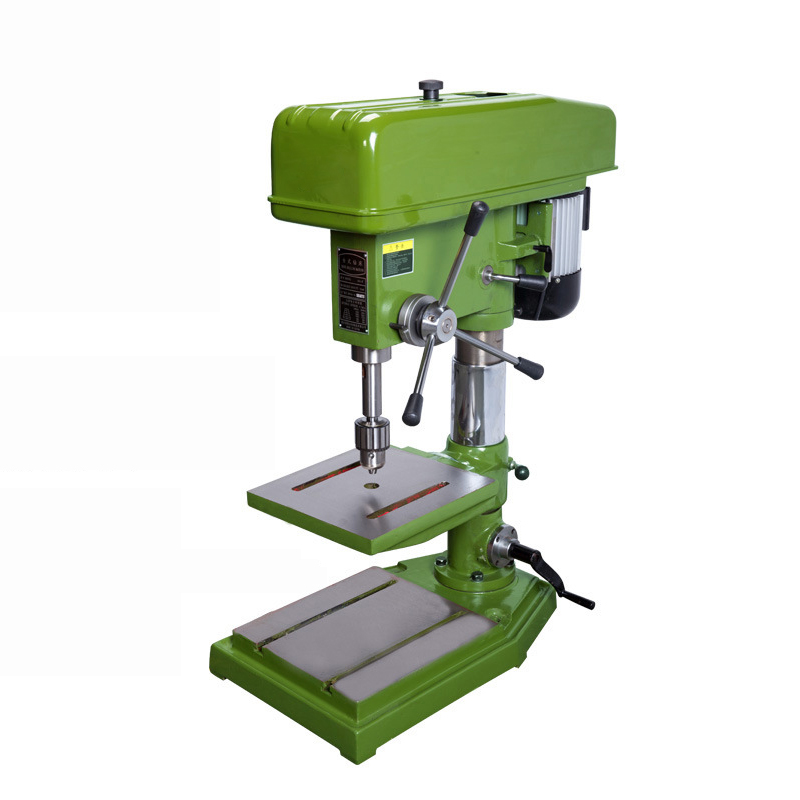

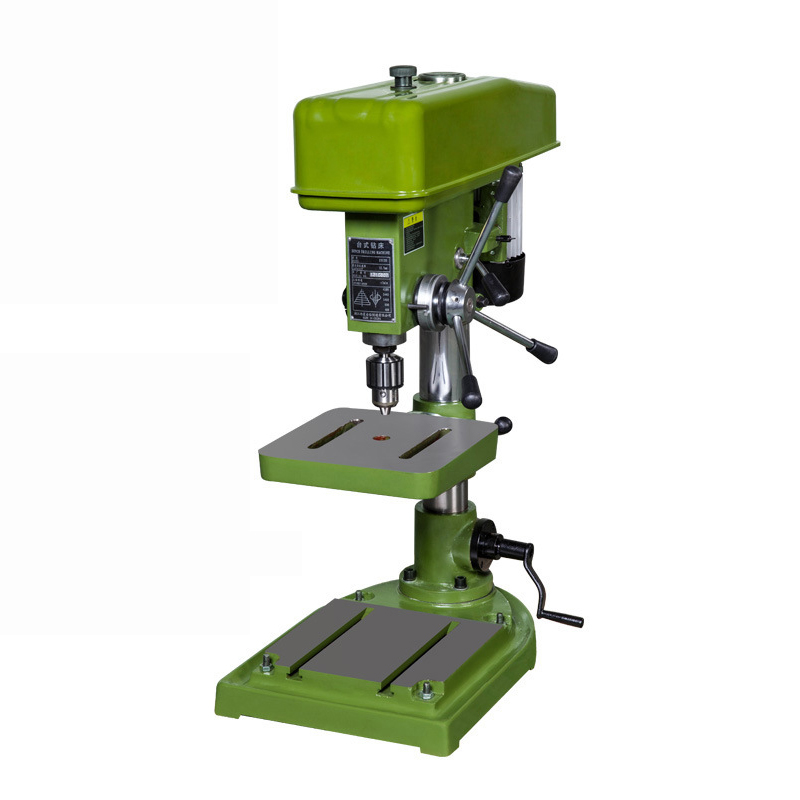

Bench Drill Press Maximum Drilling Diameter 16mm High Precision Industrial Bench Drill Dual-purpose Drilling and Tapping
- Table size (mm)：280*300
- Base size (mm)：590*375
- Motor：Single phase 750W/Three phase 750W
- Net weight (Kg)：165/140
- Packing size (mm)：830*420*920
- Application fields: drilling, chamfering, cast iron, stainless steel, etc.
Note: Prices may vary depending on product capacity and quality.
$1,189.00
CompareTechnical Parameters of the Bench Drill Press
| Product Model | Z4116 Bench Drill Press |
| Maximum drilling diameter | 16 mm |
| Spindle end taper | MT2 |
| Distance from spindle center to column surface | 240 mm |
| The maximum distance from the end face of the spindle to the working surface of the base | 560 mm |
| The maximum distance from the spindle end face to the table surface | 297 mm |
| Spindle speed | 365-3150 r/min |
| Spindle maximum travel | 100 mm |
| Spindle speed series | 5 |
| Rotation angle of headstock around column | 360° |
| Table size | 280*300 mm |
| Base size | 590*375 mm |
| Total height | 1127 mm |
| Motor | Single phase 750W/Three phase 750W |
| Net weight | 165/140 Kg |
| Packing size | 830*420*920 mm |

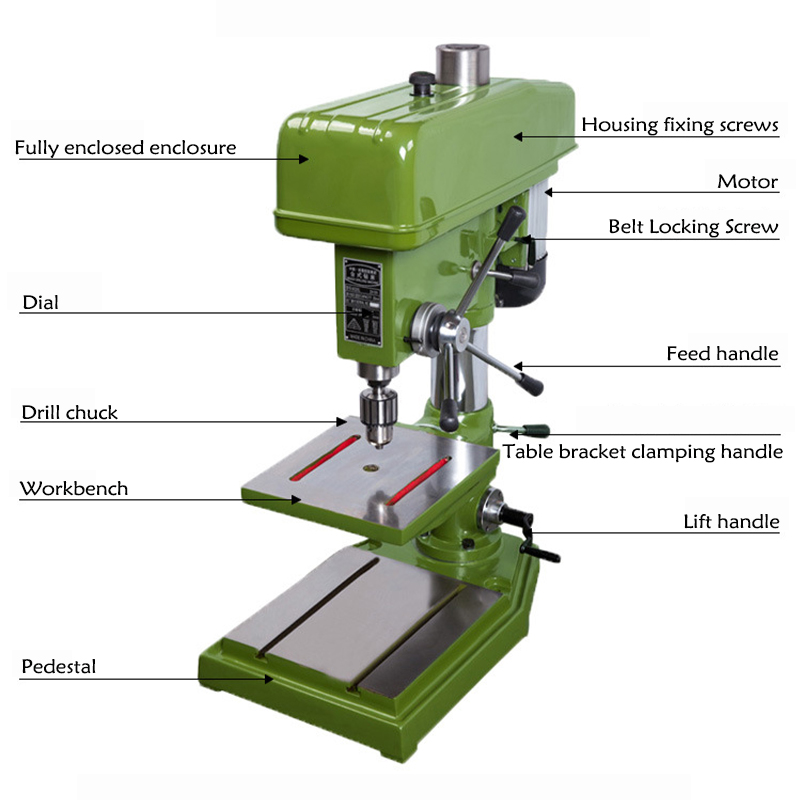

Product details
Bench Drill Press adopts variable speed design: five-speed variable speed, high-quality aluminum wheels, fast heat dissipation and long service life.
High-efficiency and energy-saving motor: all-copper motor, dust-proof and explosion-proof. High efficiency and energy saving, longer life.
High-quality handle: the handle has a scale for more accurate drill depth.
High-precision drill chuck: high-quality steel, high-frequency quenching, good rigidity and high precision.
