Bench Drilling Press Drilling and Tapping Dual-Purpose Drilling Machine Multifunction Industrial Benchtop Drilling Press

Add to wishlist
Compare

Pure copper motor
Head up and down
Five-speed speed regulation
Bold column
Dual purpose for drilling and tapping

$1,062.00 – $1,349.00

Compare

Technical Parameters of the Bench Drilling Press

Model ZS4125 ZS4112C ZS4166B
Drilling/tapping diameter D25/M24/M20 D12/M10/M8 D16/M12/M10
Column diameter 85 mm 70 mm 70 mm
Spindle travel 125 mm 100 mm 100 mm
Distance from spindle center to column busbar 240 mm 193 mm 193 mm
The maximum distance from the spindle end to the table 367 mm 315 mm 315 mm
The maximum distance from the spindle end to the base table 630 mm 556 mm 556 mm
Spindle taper MT3 B16 B16
Spindle rotation range 290～2150 r/min 480～4100 r/min 480～4100 r/min
Spindle speed series 5 5 5
working desk size 280*300 mm 200*230 mm 200*230 mm
Base size 590*375 mm 528*360 mm 528*360 mm
Total height 1127 mm 1037 mm 1037 mm
Electric motor 1100 W 550 W 750 W
Gross weight 165 kg 108 kg 108 kg
Net weight 140 kg 90 kg 90 kg
Package Size 820*480*1020 mm 770*420*950 mm 770*420*950 mm

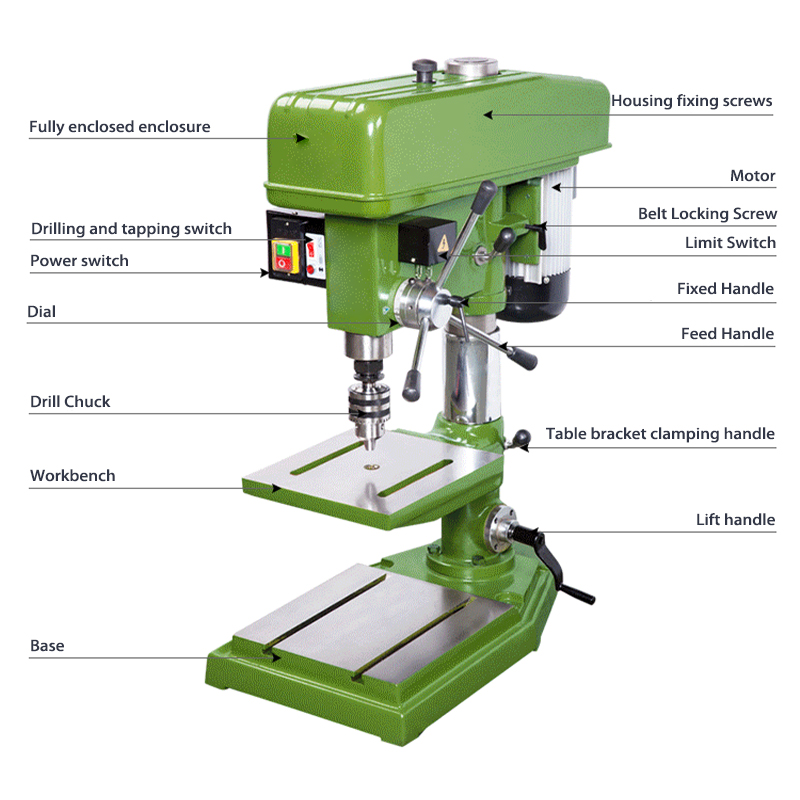

Features of the Bench Drilling Press

  • Variable speed design, five-stage speed change. High-quality aluminum wheels are used for fast heat dissipation and long service life.
  • All-copper high-efficiency and energy-saving motor, dust-proof and explosion-proof, high-efficiency and energy-saving.
  • Quality handle. The handle has a scale for more accurate drill depth.
  • Drilling and tapping function switching. It is convenient and quick to adjust the drilling and tapping.
  • The thickened column is made of high-quality cast iron and has been subjected to aging treatment, which is stable and strong.

SKU: N/A Category: Tags: , , ,
Models

ZS4125, ZS4112C, ZS4116B
