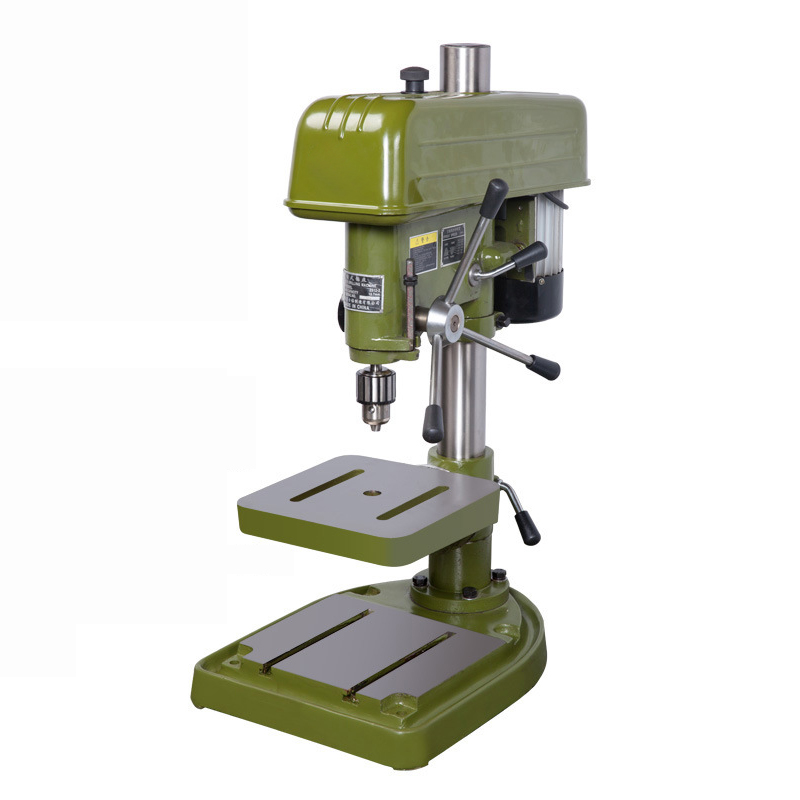

Technical Parameters of the Bench Drill Press
|Product Model||Z512-2 Bench Drill Press|
|Maximum drilling diameter||12.7 mm|
|Spindle end taper||B16/B18|
|Distance from spindle center to column surface||193 mm|
|The maximum distance from the end face of the spindle to the working surface of the base||556 mm|
|The maximum distance from the spindle end face to the table surface||332 mm|
|Spindle speed||480-4100 r/min|
|Spindle maximum travel||100 mm|
|Spindle speed series||5|
|Rotation angle of headstock around column||360°|
|Table size||265*265 mm|
|Base size||528*360 mm|
|Total height||1037 mm|
|Motor||Single phase 370W/Three phase 550W|
|Net weight||108/90 Kg|
|Packing size||770*420*940 mm|
Bench Drill Press adopts variable speed design: five-speed variable speed, high-quality aluminum wheels, fast heat dissipation and long service life.
High-efficiency and energy-saving motor: all-copper motor, dust-proof and explosion-proof. High efficiency and energy saving, longer life.
High-quality handle: the handle has a scale for more accurate drill depth.
High-precision drill chuck: high-quality steel, high-frequency quenching, good rigidity and high precision.
