Automatic Double Side Box Labeling Machine for Packaging

Double Side Box Labeling Machine Product Introduction

Automatic Double Side Box Labeling Machine for Packaging is designed for automatic labeling on two sides of cartons, boxes and flat packaging products. It provides an efficient labeling solution for manufacturers requiring accurate and consistent product identification.

The machine integrates automatic label dispensing, dual-side labeling, product conveying and positioning functions. With adjustable labeling parameters and precise control technology, it can apply labels smoothly on different box surfaces while maintaining high labeling accuracy.

This double side box labeling machine is widely used in carton packaging, electronic products, food packaging, pharmaceutical boxes, cosmetic packaging and logistics industries, helping companies improve packaging efficiency and reduce manual labeling costs.

System Overview

The Automatic Double Side Box Labeling Machine combines multiple automation systems to complete accurate labeling operations for box-shaped products.

The main system includes:

• Dual-side labeling heads
• Automatic label dispensing system
• Conveyor belt system
• Product positioning device
• Label sensor system
• Control panel
• Adjustment mechanism
• Stainless steel machine frame

During operation, products are transported through the conveyor, positioned automatically, and labels are applied simultaneously or separately on both sides according to production requirements.

Working Principle

Products are placed onto the conveyor system and transported to the labeling station.

The sensor detects the product position and activates the labeling mechanism. The label rolls release labels automatically, and the two side labeling heads apply labels accurately onto the designated surfaces of the box.

The pressing mechanism ensures labels adhere firmly and smoothly. After labeling is completed, finished products are automatically transferred to the next production process.

Labeling Process

Step 1: Product Feeding

Products are placed onto the conveyor system and transported automatically to the labeling area.

Step 2: Product Detection

The sensor detects the product position and activates the labeling system.

Step 3: Label Dispensing

The label roll releases labels automatically with precise control.

Step 4: Double Side Label Application

The two labeling heads apply labels accurately to both sides of the product.

Step 5: Label Pressing and Output

The pressing mechanism ensures firm adhesion before products move to the next process.

Machine Components

Dual Labeling Unit

Two independent labeling mechanisms apply labels to different sides of the product.

Label Roll Holder

Supports label rolls and provides stable label supply during operation.

Product Guiding System

Keeps products aligned during transportation to ensure accurate labeling.

Sensor Detection System

Automatically detects product position and controls labeling timing.

Conveyor System

Transfers boxes smoothly through the labeling process.

Control Panel

Allows operators to set labeling parameters and monitor production status.

Main Features & Advantages

Double Side Labeling Capability

The machine can apply labels on two sides of boxes simultaneously, improving packaging efficiency compared with single-side labeling equipment.

High Labeling Accuracy

The precision control system ensures stable label positioning and reduces problems such as label deviation, wrinkles or incomplete adhesion.

Wide Application Range

Suitable for cartons, boxes, flat packages and various products requiring side labeling.

Adjustable Labeling Parameters

The labeling speed, position and pressure can be adjusted according to different product sizes and label requirements.

Stable Conveyor System

The conveyor provides smooth product transportation and accurate positioning during labeling.

Easy Operation

The intelligent control panel allows operators to conveniently adjust parameters and monitor machine operation.

Durable Industrial Structure

The stainless steel structure provides good durability, corrosion resistance and easy maintenance.

Technical Parameters

Parameter	Specification
Equipment Type	Automatic Double Side Labeling Machine
Power Supply	220V, 50Hz / 60Hz
Labeling Speed	40–60 pcs/min (Depends on product size and label specifications)
Labeling Accuracy	±1 mm
Suitable Product Length	40–280 mm
Suitable Product Width	40–200 mm
Suitable Product Height	0.2–150 mm
Suitable Label Length	10–250 mm
Suitable Label Height	10–150 mm
Label Roll Inner Diameter	76 mm
Label Roll Outer Diameter	350 mm
Working Air Pressure	0.4–0.6 MPa
Conveyor Size	112 × 2000 mm (W × L)
Machine Dimensions	Approx. 2200 × 980 × 1400 mm (L × W × H)
Machine Weight	Approx. 200 kg
Labeling Method	Automatic Double Side Label Application
Operation Mode	Continuous Automatic Operation
Suitable Products	Cartons, Boxes, Flat Packages and Various Packaging Containers

Customization Options

The machine can be customized according to:

• Product dimensions
• Label size
• Labeling position
• Production speed
• Conveyor requirements

Optional configurations:

• Single-side or double-side labeling
• Customized conveyor length
• Additional barcode inspection
• Printing and labeling integration
• Automatic production line connection

Application Scenarios

Carton packaging lines requiring automatic double-side labeling for product identification and tracking

Electronic product manufacturers applying labels on boxes, accessories packages and retail cartons

Food packaging factories labeling snack boxes, food cartons and processed product packages

Cosmetic brands using automatic labeling solutions for beauty product boxes and gift packaging

Pharmaceutical companies applying accurate labels on medicine boxes and healthcare product cartons

E-commerce fulfillment centers requiring fast and consistent package labeling operations

Logistics and warehouse operations using barcode and information labels on shipping cartons

OEM manufacturers handling different box sizes and customized packaging requirements

Printing and packaging companies needing efficient labeling equipment for various packages

Complete packaging production lines requiring automatic box labeling and product identification systems

Industry Applications

Food Industry for carton labeling of snacks, packaged foods and consumer food products

Pharmaceutical Industry for medicine boxes, healthcare products and medical packaging labels

Cosmetic Industry for beauty boxes, skincare packages and personal care product labeling

Electronics Industry for product boxes, accessories packages and electronic component identification

Logistics Industry for barcode labels, tracking labels and warehouse management applications

E-commerce Industry for automatic labeling of shipping packages and retail cartons

Packaging Industry for carton, box and flat package labeling solutions

Manufacturing Industry for product identification and automated packaging processes

Retail Industry for branded packaging labels and product information labeling

OEM/ODM Industry for customized packaging and automated labeling production lines

Why Choose This Automatic Double Side Box Labeling Machine?

✔ Designed for cartons and box packaging
✔ Automatic labeling on two sides
✔ High labeling accuracy and stability
✔ Suitable for various industries
✔ Adjustable for different product sizes
✔ Reduces manual labor requirements
✔ Improves packaging efficiency
✔ Easy integration with automatic production lines

FAQ

1. What products can this Automatic Double Side Labeling Machine label?

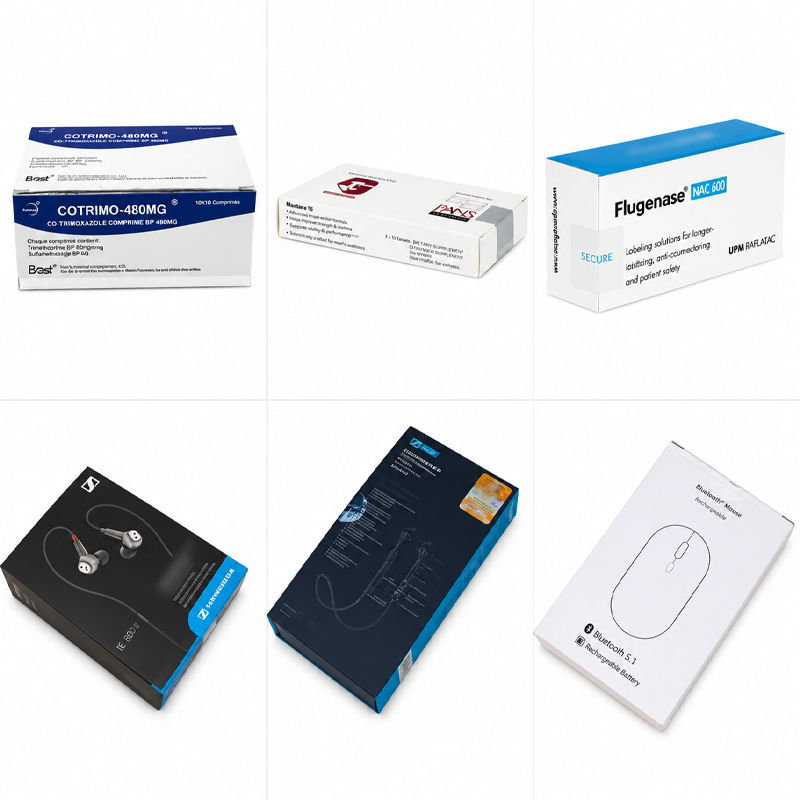

This machine is mainly designed for cartons, boxes, flat packages and various products requiring labels on two sides. It is suitable for electronic boxes, food cartons, cosmetic packages, pharmaceutical boxes and retail packaging.

2. Can this machine apply labels on both sides at the same time?

Yes. The machine is equipped with dual labeling systems that can apply labels to two sides of the product simultaneously, improving labeling efficiency and ensuring consistent labeling results.

3. What is the labeling accuracy of this machine?

The labeling accuracy can reach approximately ±1 mm, depending on product size, label material and operating conditions.

4. What types of labels can be used with this machine?

The machine supports various self-adhesive labels, including paper labels, film labels, barcode labels and product identification labels.

5. Can the machine handle different box sizes?

Yes. The labeling system can be adjusted according to different product lengths, widths and heights, making it suitable for various carton and box sizes.

6. How fast can this double side labeling machine work?

The machine can reach a labeling speed of approximately 40–60 pieces per minute, depending on product dimensions, label size and production requirements.

7. Is this machine suitable for automatic production lines?

Yes. It can be integrated with filling machines, packing machines, coding machines, inspection systems and other packaging equipment to create a complete automatic production line.

8. How does the machine ensure accurate label positioning?

The machine uses product positioning devices, sensors and precise label control systems to detect products and apply labels accurately on the required surfaces.

9. Is the operation of this labeling machine complicated?

No. The machine is equipped with an intelligent control panel, allowing operators to easily adjust labeling speed, position and other parameters.

10. Can this Automatic Double Side Labeling Machine be customized?

Yes. The machine can be customized according to product dimensions, labeling positions, label sizes, conveyor requirements and customer’s specific packaging needs.
