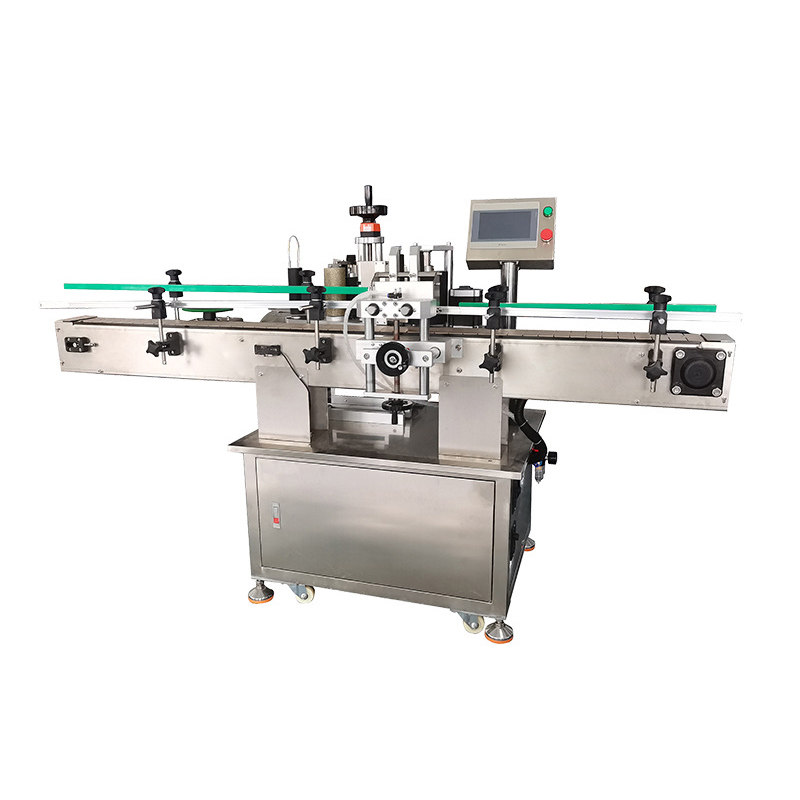

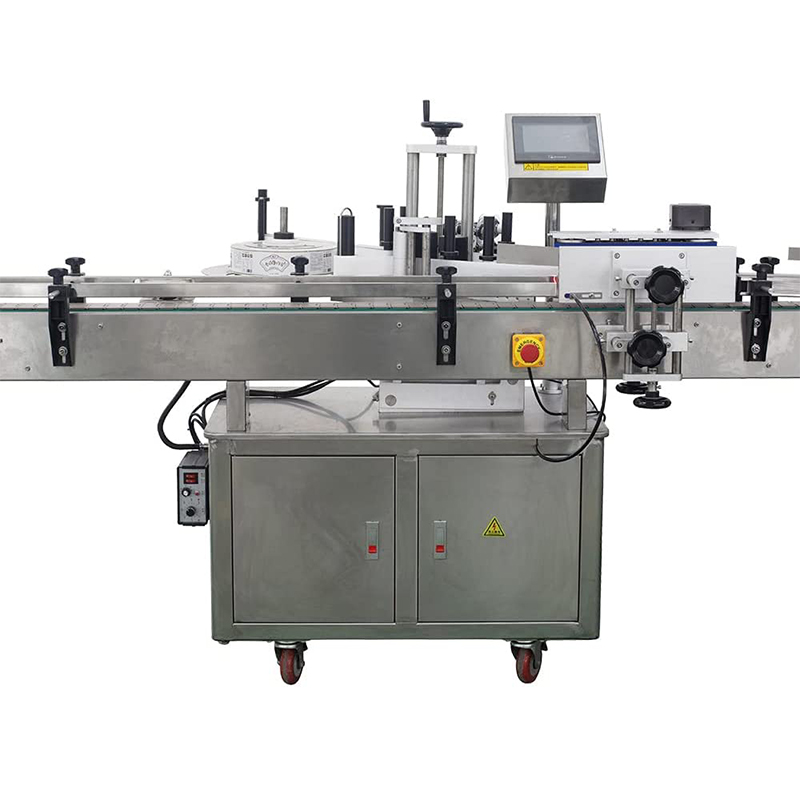

Automatic Round Bottle Labeling Machine 80-100 pcs/min For Bottle Can and Wine Package Equipment
- Conveyor width：101.6mm
- Material：stainless Steel 304
- Label speed：80-100 pcs/min
- Product size(L*W*H)：63 x 53 x 35 inches
- Item Weight：550 pounds/250kg
Note: Prices may vary depending on product capacity and quality.
$5,976.00
Compare| Power supply | 110V/220V 50HZ/60HZ |
| Conveyor width | 101.6mm |
| Material | Stainless Steel 304 |
| Round bottle diameter | 20-120mm |
| Bottle height | 75-300mm |
| Label speed | 80-100 pcs/min |
| Label height | 10-110mm |
| Label length | 15-200mm（recommended） |
| Labeling precision | ±1mm |
| Paper roll diameter | φ300mm |
| Inside of paper roll | φ76mm |
| Product size(L*W*H) | 63 x 53 x 35 inches |
| Item Weight | 550 pounds/250kg |
Product details
- 【COLOR RIBBON CODING MACHINE】 This machine can be euipped with a date coder, wihch can help you shorten the production process.It makes labeling and printing at one machine (optional).
- 【SIMPLE OPERATION PANEL】 The English Operation Panel Makes It Easy to Test and use the machine. PLC combined with LCD touch screen panel, the setting and operation are clear and easy.
- 【THE SENIOR CONTROL SYSTEM】 Automatic imported fiber amplifier, automatic induction product labeling, simple and intelligent operation, ensuring the accuracy of labeling. The machine has many functions such as guiding, separating, labeling, attaching, and counting.
- 【CONVEYOR BELT】 The conveyor belt is made of PU, and the width of the conveyor belt can be adjusted according to the diameter of the bottle (preferably less than 101mm in diameter), and the width can be also customized if it exceeds the standard range.
- 【APPLICATION】 The machine can be used in the production line with a conveyor belt. The special machine can be customized according to customers’ requirements.
Based on 0 reviews
Be the first to review “Automatic Round Bottle Labeling Machine 80-100 pcs/min For Bottle Can and Wine Package Equipment”
Related products
-
Packaging Machines, Labeling
Universal automatic labeling machine for large and small bottles, automatic round bottle labeling machine, disinfectant alcohol disposable hand sanitizer labeling machine, vertical self-adhesive labeling machine
Packaging Machines, LabelingUniversal automatic labeling machine for large and small bottles, automatic round bottle labeling machine, disinfectant alcohol disposable hand sanitizer labeling machine, vertical self-adhesive labeling machine
High stability
An advanced electronic control system composed of PLC + touch screen + optical fiber electric eye + measuring label electric eye, which supports 7×24 hours operation of the equipmentIntelligent control
Automatic photoelectric tracking, with no label, no object, no labeling, dynamic correction and automatic label detection functions to prevent missed labeling and label wasteHigh-quality labeling
The elastic compression re-labeling belt is used to label flat and wrinkle-free to improve the quality of packaging.High label coincidence
The marking belt is bypassed by a correction mechanism, and the marking belt does not deviate. The three directions of x/y/z and the inclination of the labeling part are adjustable with a total of eight degrees of freedom, and there is no dead angle for adjustment.Simple adjustment
Labeling speed, conveying speed, bottling speed can be stepless speed regulation and adjusted as neededStable operation
The use of brand precision electronic components is safe and stable, and the reasonable layout is easy to maintain.SKU: n/a -
Packaging Machines, Labeling
Automatic single-sided machine labeling box carton large can brushing machine, packaging box corner marking machine, label applicator
Packaging Machines, LabelingAutomatic single-sided machine labeling box carton large can brushing machine, packaging box corner marking machine, label applicator
Smart touch screen!Smart touch screen op.eration, one key calling of parameters, to maximize the realization ofintelligent and simpleoperation.
Feeding tray:Imported acrylic tray is used, the material is tough and not easy to be damaged, and the adjustable handle is easyto adjiust.
Electric eye!The label detection is sensitive and accurate,and the stability of themachine is greatly im-proved.SKU: n/a -
Labeling
Automatic Labeling Machine Glass Plastic Round Bottle 25-40 Bottles/Min Bottle Self-adhesive Automatic Labeling Machine
LabelingAutomatic Labeling Machine Glass Plastic Round Bottle 25-40 Bottles/Min Bottle Self-adhesive Automatic Labeling Machine
- Production speed：25-40 bottles/min
- Labeling method：Single label / double label
- Label height：15-130mm (customizable)
- Bottle range：30-100mm (customizable)
- Bottle range：30-200mm (customizable)
- Equipment material：SUS304
Note: Prices may vary depending on product capacity and quality.
SKU: n/a -
Labeling
MT-50 Semi-Auto Labeling Machine for 3/4″ – 4-3/4″ Round Bottle Labeling Machine
- Applicable Bottles’ Dia:3/4″ – 4-3/4″ (20 – 120mm)
- Label Width:3/4″ – 6″ (20 – 150mm)
- Label Length:3/4″ – 9″ (20 – 230mm)
- Labeling Speed:25 – 50 pcs/min
- Labeling Accuracy:±0.02″ (±0.5mm)
- AC Power Input: 110V, 60Hz
SKU: n/a
