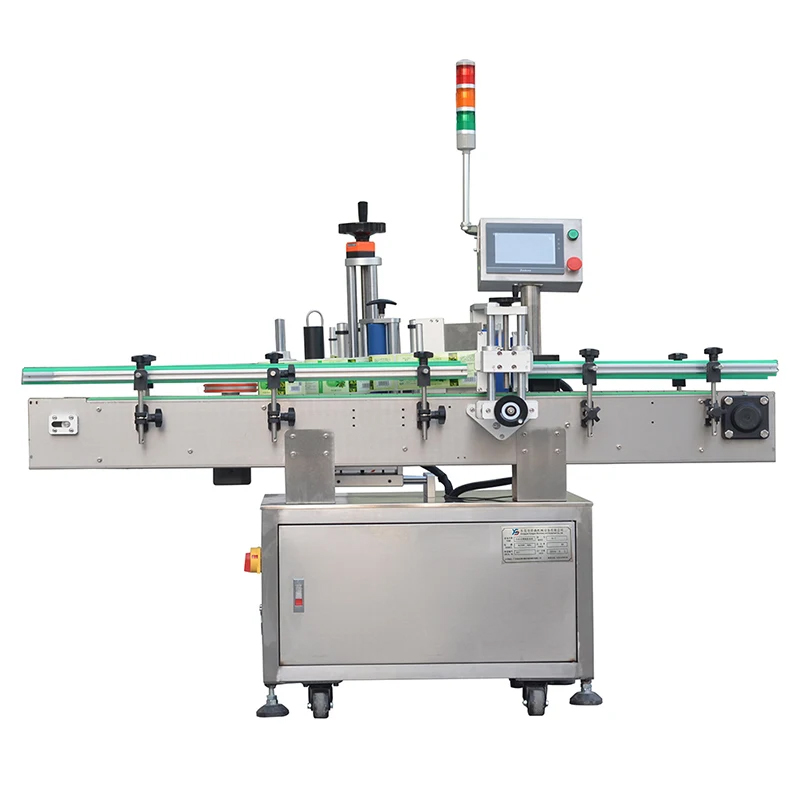

Fully automatic round can labeling machine can label stick machine labeling machine for cylindrical bottle
Standard Features:
1. Powerful functions, the same equipment can realize single and double labeling of cylindrical products with small taper objects, and the double-label spacing can be flexibly adjusted. The optional circumferential positioning detection device can realize the function of positioning and labeling on the circumferential surface;

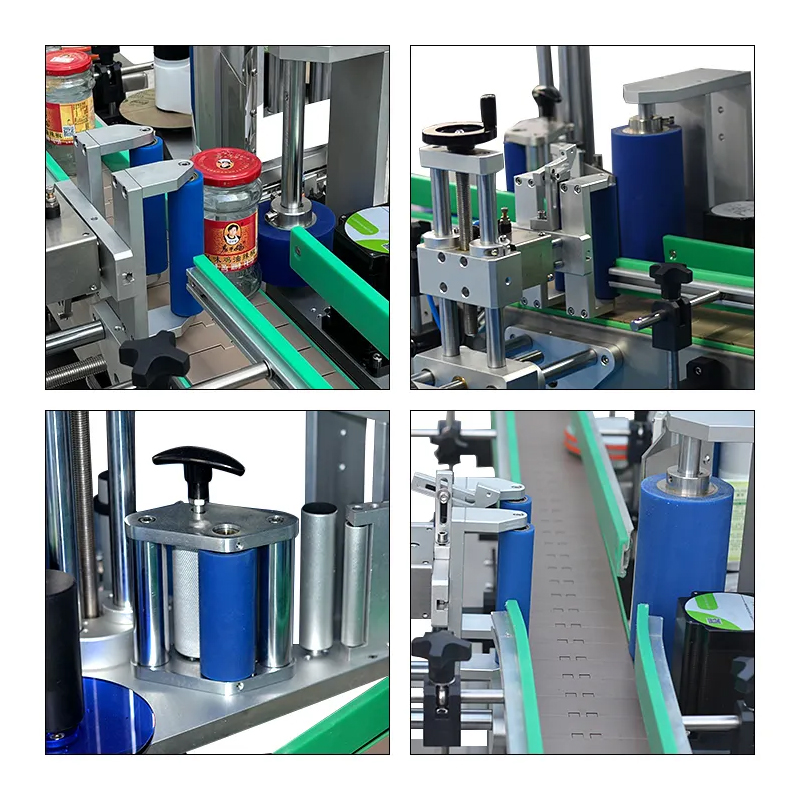

2. The label has a high degree of coincidence, equipped with a top pressing mechanism, combined with a 3-axis positioning mechanism, to prevent the bottle from fluctuating up and down and improve the labeling accuracy;
3. The automatic bottle separation adopts the elastic pressure bottle separation mechanism, which effectively eliminates the unsmooth bottle separation caused by the error of the bottle itself and improves the stability
$5,750.00
Compare|
Labeling speed:
|
about 25-55P/min(Depend on bottles size)
|
|
Labeling accuracy:
|
±1mm(Do not include errors such as product labels)
|
|
Applicable product size:
|
diameter 20-110mm; height 30-320mm
|
|
Applicable label range:
|
Length 10~350mm,Width of base paper 10-120mm(Extra-large base paper up to 195mm wide)
|
|
Table Adjustment:
|
X,Y ± 15mm / θ 15 °
|
|
Maximum Screen Frame Size:
|
280 x 430mm (11.02″ x 16.93″)
|
|
Max label supply:
|
Outer diameter ≤ 300mm,Inner diameter 76mm
|
|
Ambient temperature/humidity:
|
0-50℃/15-85%
|
|
Power:
|
AC220V, 50HZ
|
|
Size and weight:
|
about 1900*1450*1560mm/about 180Kg
|
