7W High Speed Mini CNC Laser Engraver For Metal Engraving Carving Machine Laser Cutting Engraving Machine

Add to wishlist
Compare

Engraving machine is a portable engraving machine with simple installation, safety and easy operation.
It has built-in sensor accelerometer. When the machine tilts, it will automatically stop laser work and protect from laser damage.
At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software,
but also support the operation fun of GRBL open source software; it supports the dynamic control laser module developed by Neje,
which can support PWM power regulation, low light brightness regulation, laser temperature induction protection;
it also supports different power lasers.
The 7w specializes in dark color alumina engraving and deep wood engraving and cutting.

$185.00

Compare
NEJE Master 7W High Speed Mini CNC Laser Engraver For Metal Engraving Carving Machine Laser Cutting Engraving Machine

Application

It supports metal engraving including alumina oxide and other non-reflective materials, depth of engraving (0.5-3mm wood), thickness of cutting(2mm),
Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, etc.
It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser.

Feature

Built-in sensor protectiong:
Daul MCU: One MCU for Suport NEJE Controller(Windows & MAC), The Other for GRBL Controller
OFF-Line Working:
170mm x 170 mm Working eara, 170mm x 170mm in GRBL Mode:
Limited Switch design:
Compatible with laser modules(3500, 7W, 20W).
Z-axis,fan,safe Key button Support.
PWM Laser Power Adjustment.
Cloud Gallery Service.
image and text Edit.
Easy Position.
Repeat engraving.
Support BMP,NC(G-code),DXF(CAD), etc… files.
NEJE Scanner(photo share).
NEJE Master 7W High Speed Mini CNC Laser Engraver For Metal Engraving Carving Machine Laser Cutting Engraving Machine
Material Acrylic + PP + Aluminum
Laser Power 7W ( Laser input:12v0.75A )
Laser Wave Length 450nm
Image Format nc \ .dxf \ .bmp \ .jpg \ .png etc..
Image Size 2000 * 2000 pixels / 0.075mm point distance
Support System Win7 / Win8 / XP / Win10 ,Mac OS, android APP(neje scanner)
Machine Supply Voltage 12V2A
Items can be carved including: alumina oxide, mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc. please take notice that the laser head is easily-consumed products ,so we promise to supply again within three month if the laser head is Inhuman damage.so if you laser head is Inhuman damage , please do not give negative comment thanks for your support.

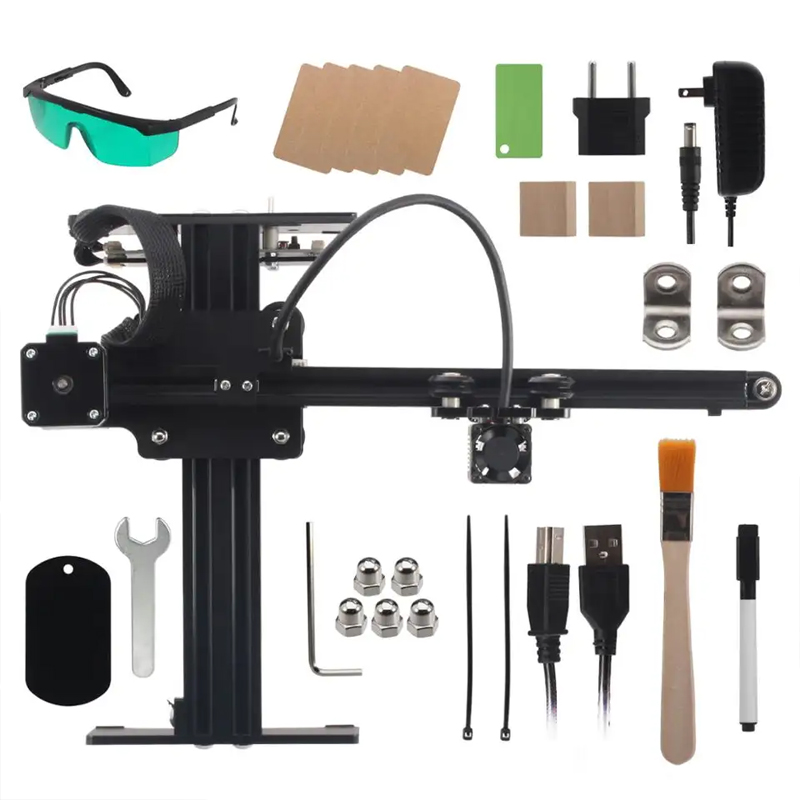

Package List:
1 * Engraving Machine
1 * Protective Glasses
1 * USB Cable
1 * Power Adapter
1 * Wrench
1 * Whiteboard Marker
2 * Wood Block
5 * Paper
1 * Brush
1 * Metal tag
