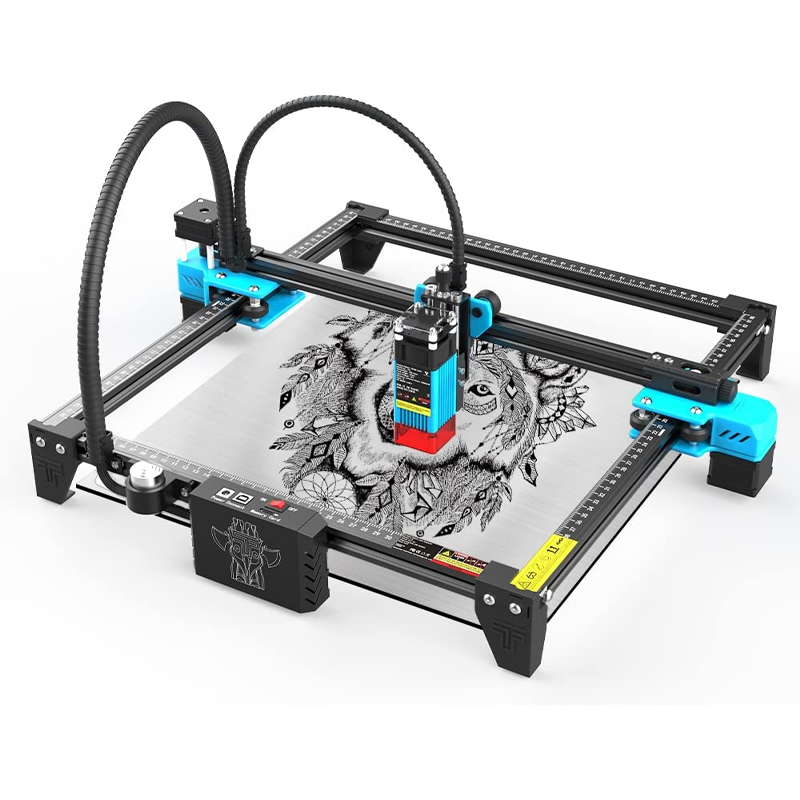

TTS-55 20W laser engraving machine for Making 3D Wooden Puzzles, Cutting Machine 5W-5.5W Laser Power, Fixed Focus Compression Point, Wood, Metal, Stainless Steel Engraving Machine

Add to wishlist
Compare
  • 【Huge Upgraded】:TTS-55 laser engraving machine is improved with ultra-fine compressed spot of 0.08*0.08mm, 20W electric power, unlimited engraving speed, real powerful 5.5W laser power and 0.01mm engraving accuracy for high-precision and fast engraving and cutting. It combines precision engraving and high energy cutting to cleanly cut 8mm wood and engrave smooth stainless steel metal.
  • 【Extensive Compatibility & Uses】- Compatible various mature engraving software, such as LaserGRBL(Windows), LightBurn, Benbox, GrblController, LiteFire, supports MAC system and Windows XP/7/8/10 and file format like NC, BMP, JPG, PNG, DXF,GCODE etc. Suitable for wood, bamboo, acrylic, paper, leather, plastic, metal, ceramic, etc.
  • 【Safety Protection Design】 – The lightweight filter hood features a modular magnet-attached design, easily removable, with superb suction for enhanced robustness and greatly simplified design and installation complexity. Laser filter cover can filter 98% of UV light to protect your eyes, no need to wear goggles to watch laser engraving.
  • 【More Easier and Safety Control 】 – The High Speed ESP32 Smart Module integrate WiFi and Bluetooth functionality, makes it more convenient to use by supporting App connection. Equipped with a power switch to easily turn on, or turn off the machine in case of emergency.
  • 【Precision Scale Lines & Expandable Engraving Area】 – The X-axis and Y-axis have precision scales for quick measurement of engraved objects, 300x300mm engraving area can meet your various engraving needs. In addition, by extending the frame axis, the engraving area can be extended to 430x400mm. This meets the needs of larger area engraving.

$472.53

Compare

Product Parameters

Item Model Number TTS 25/TTS 55 laser engraving machine
Laser Power 20W
Laser Output Power 2.5W/5.5W ( fixed force laser )
Laser Wave Length 445 ± 5nm
Engraving Accuracy 0.1mm
Engraving Method USB connection\APP\Wi-Fi
Input Format NC, BMP, JPG, PNG, DXF, GCODE, etc
Engraving Speed: 10000mm/min
Engraving Mode graphic engraving, file engraving, scan engraving, outline engraving, pixel engraving
Operating software LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system
Carving Objects All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal
Package Weight 4.6KG

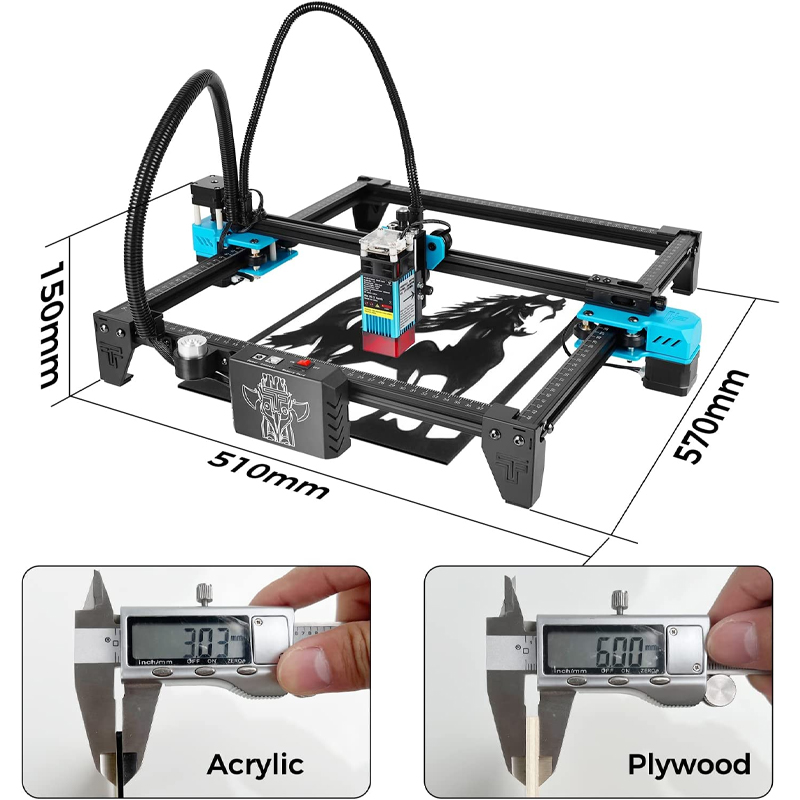

Engraving Area 300*300mm
Package Size 605mm*225mm*190mm

Lifting Design

Equipped with a Z-axis lift table, it is easy to adjust the height between the laser and the object, making the engraving more precise and stable

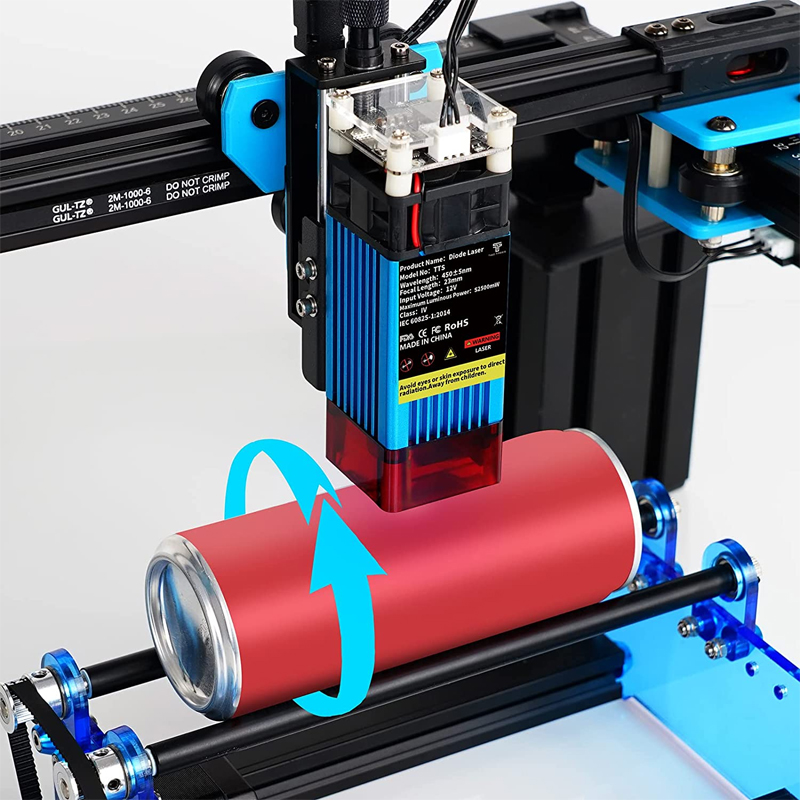

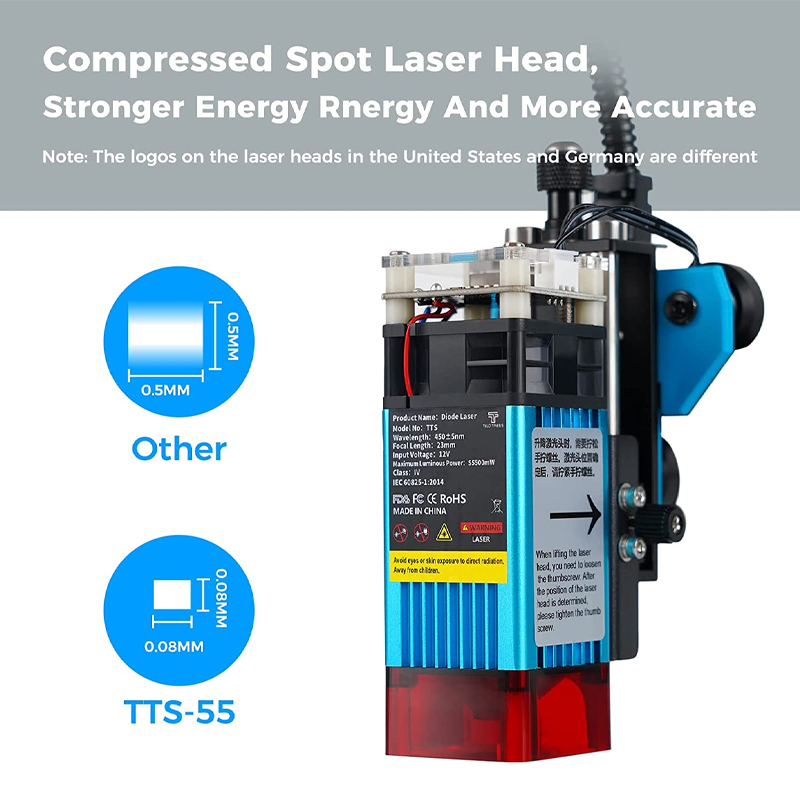

High-performance fixed-focus laser

Before you engraving no need adjust the focus; the new laser focal spot is 50% smaller than other ordinary lasers and combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser

Magnetic Laser Shield Cover

The lightweight filter hood features a modular magnet-attached design, easily removable. Laser filter cover can filter 98% of UV light to protect your eyes, no need to wear goggles to watch laser engraving.

One key Turn on or Turn off

The main board equipped with a emergency stop switch, easily turn on, or turn off the machine in case of emergency.

App Operation

The High Speed ESP32 Smart Module integrate WiFi and Bluetooth functionality, makes it more convenient to use by supporting App connection

Wide Compatibility

Operating software: Compatible with LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. Input Format: Support NC, BMP, JPG, PNG, DXF, etc.

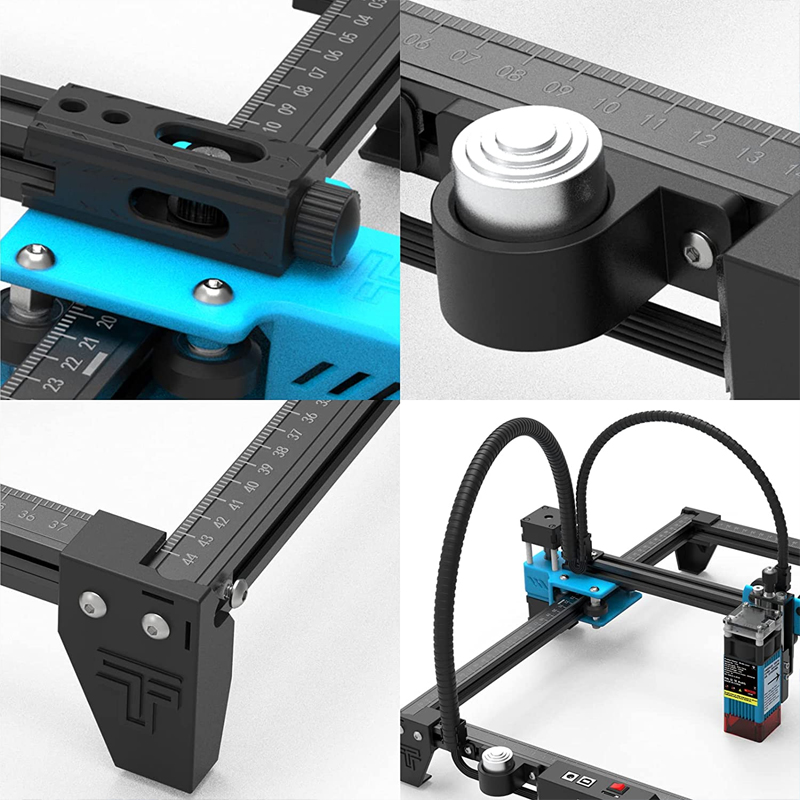

Belt Tensioner

The belt tensioner can better adjust the X axis belt tightness, can be better to control engraving accuracy.

Cable Manegement

The spiral corrugated tube can effectively collect all the cables, avoid the entanglement of the cables, and the use is more convenient.

Precision Scale Lines

The X-axis and Y-axis have precision scales for quick measurement of engraved objects, 300x300mm engraving area can meet your various engraving needs.

Fixed Focus Column

Combined with the Z-axis lift table, the engraving height can be adjusted more perfectly, and the engraving effect is even better.
