5500mW Router CNC 3018 Pro Engraving Machine,GRBLControl PCB PVC Wood Router CNC 3 Axis Milling Machine

Add to wishlist
Compare
  • 【Update CNC 3018PRO Engraving Machine】2-in-1 CNC 3018-PRO with 3000mW Module is an upgraded version of 3018. Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Casing to extend the life of the control board, Self-contained short circuit protection, Not easy to damage.(Provide technical support,electronic software/manual)
  • 【CNC Engraving】 With an effective engraving area of 300 x 180 x 45 mm, the 3018pro can easily accommodate most projects. Control software: GRBL; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. Supported System: Windows XP / Win 7 / Win 8 / Win 10.
  • 【3000MW Head】High precision – focus < 0.1mm, High engraving power and long-term available. Can directly import pictures to lasergrbl for engraving, –Adding a pair of safety goggles protect your eyes from injury.
  • 【Offline Controller】 DO NOT need to connect the computer. Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan. Note: Please don’t use the computer and the Offline Controller at the same time, otherwise it will block the communication.
  • 【Wide Application】Suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other like materials, but can not carve hard metal, jade and other hard materials.

$483.52

Compare

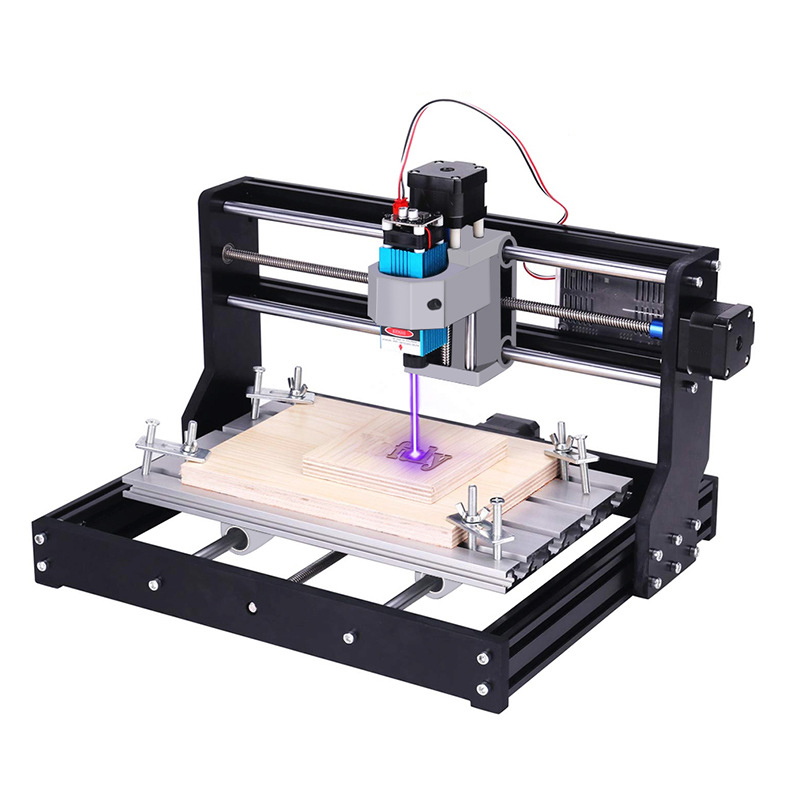

The CNC 3018Pro Engraving Machine with 5500mW Module

Designed for the absolute beginner, the Titoe is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models which you are coding and designing.

The Advantages of CNC 3018Pro Machine:

  • 2-In-1 Design: Replacing the spindle with a suitable power head, The CNC 3018-PRO can be used as a CNC Router or a Engraver.
  • Easy to Assembly:All the parts are in the package. It only takes 20-60 minutes to assemble it. Search “3018pro” to watch the instructional video on Youtube.
  • Offline Controller: Take control of your 3018-PRO Desktop CNC machine with offline control, provide manual control of your mill without any computer.
  • Upgraded Control Board: Integrated Driver Chip + Fixed Heat Sink + External Fan + Sturdy Case to extend the life of the control board. Self-contained short circuit protection to prevent it from burning due to overload.
  • High Quality and Affordable: Make more with the 80% aluminum body and take advantage of the added stability for milling a wider range of materials.

CNC 3018pro Machine with Spindle Module
775 DC Motor
Speed: 10000/min
Rated Current: 1.5A
Voltage: 24V
High speed and high performance
5500mW 5.5W Module:
Wavelength: 450nm
Power: 5.5W
Output current: 3A
Input voltage: DC 12V
Working temperature: 10°-40°
With this module, it can absolutely give you different ways to unleash your creativity.

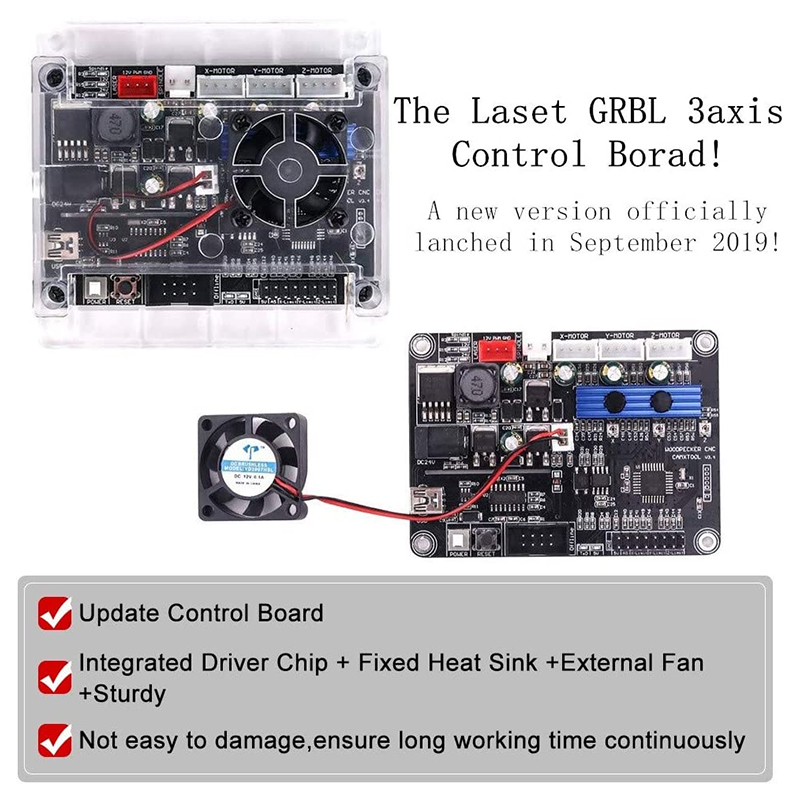

Upadate Control Board

GRBL 1.1 , The new control board adds fixed heat sink and external fan, as well as a sturdy shell, which greatly extends the service life of the control board.

Offline Control

With offline controller module, you can control the CNC router without connecting to the computer. The computer and the controller cannot be used at the same time.

Open Source

It’s built on Arduino and Grbl (both open source) support, tutorials, additional training, and new ideas to try are plentiful and easy to find elsewhere online.

Sturdy machine frame:

Sturdy aluminum and nylon, make the machine more work more stable, run and engrave better, one-piece molding, easy to install.We provide assembly video.
