3D Filament Extruder Machine for Plastic Material Production

Extruder Machine Product Introduction

The 3D Filament Extruder Machine is a precision extrusion system specially designed for producing high-quality 3D printing filaments from various engineering and thermoplastic materials. The machine adopts a twin screw extrusion structure with accurate temperature control, stable feeding, and uniform material mixing to ensure consistent filament diameter and excellent printing performance. It is suitable for processing PLA, ABS, PEEK, PC, PA, TPU, and other polymer materials for 3D printing applications.

Equipped with advanced control technology and high-precision extrusion components, this filament production machine provides reliable operation, easy parameter adjustment, and efficient material development capabilities. It is widely used in 3D printing material production, laboratory research, polymer testing, customized filament manufacturing, and engineering plastic development, helping users achieve stable filament quality and flexible production.

Industry Pain Points

• 3D printing material manufacturers require stable extrusion equipment to produce filaments with consistent diameter and reliable printing performance.

• Traditional extrusion systems may have problems such as uneven melting, unstable extrusion pressure, and inconsistent filament quality.

• High-performance materials such as PEEK, ABS, PC, and engineering plastics require precise temperature control and specialized processing conditions.

• Developing new filament materials often requires flexible equipment for laboratory testing and small-batch production.

• Material waste and unstable production parameters can increase development costs and reduce efficiency.

• Manufacturers need compact, accurate, and reliable extrusion solutions for customized 3D printing material development.

Our Solution

The 3D Filament Extruder Machine provides a professional solution for producing high-quality 3D printing filaments from various thermoplastic materials. Equipped with a precision twin screw extrusion system, the machine ensures uniform melting, excellent mixing performance, and stable filament output.

With advanced temperature control, servo drive technology, and accurate extrusion adjustment, it supports the production and research of PLA, ABS, PEEK, PC, PA, TPU, and other polymer materials. The equipment helps manufacturers improve filament consistency, reduce material waste, and accelerate the development of customized 3D printing materials.

System Overview

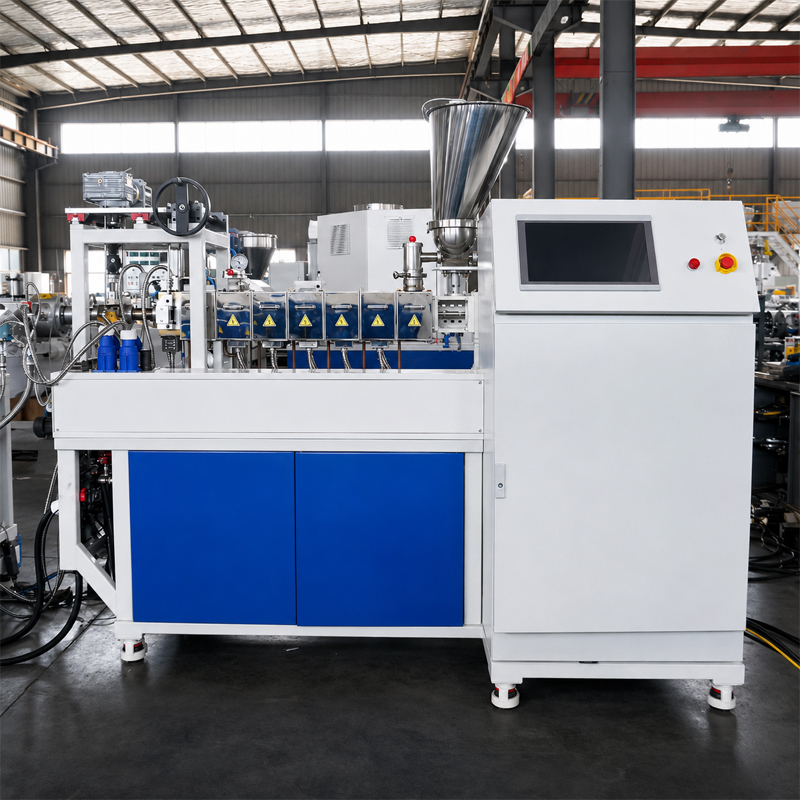

The 3D Filament Extruder Machine is an integrated extrusion system designed for continuous production of 3D printing filament materials.

The system combines material feeding, twin screw extrusion, heating control, extrusion forming, cooling calibration, diameter adjustment, pulling, and winding functions into one complete production unit.

The precision extrusion structure ensures stable filament diameter, smooth surface quality, and consistent material performance, making it suitable for both research and commercial filament production.

Process Description

1. Raw Material Feeding
Plastic pellets, additives, or polymer mixtures are loaded into the feeding system and supplied continuously into the extruder.

2. Melting and Plasticizing
The twin screws heat, convey, and mix the materials to achieve uniform melting and stable plasticization.

3. Material Mixing
The screw system provides strong mixing capability to improve material uniformity and filament performance.

4. Filament Extrusion
The molten polymer passes through the precision die head to form continuous filament strands.

5. Cooling and Calibration
The extruded filament is cooled and calibrated to maintain accurate diameter and shape.

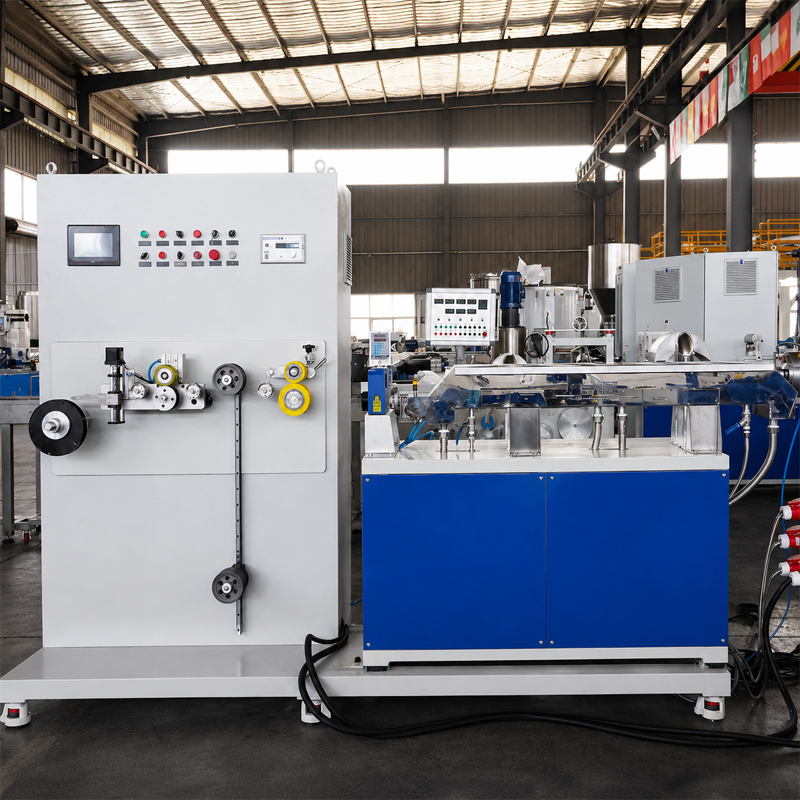

6. Pulling and Winding
The finished filament is pulled at a controlled speed and automatically wound for storage and further use.

Main Features

• High-precision twin screw extrusion system for stable filament production.

• Suitable for PLA, ABS, PEEK, PC, PA, TPU, and other thermoplastic materials.

• Accurate temperature control improves material processing stability.

• Servo drive system provides precise speed adjustment.

• Uniform mixing performance ensures consistent filament quality.

• Advanced calibration system improves filament diameter accuracy.

• Compact design suitable for laboratories and production facilities.

• Easy parameter adjustment for different material requirements.

• Durable components provide long service life.

• Suitable for customized filament development and production.



Why Choose This Equipment

✓ Professional solution for 3D printing filament manufacturing.

✓ Supports various engineering plastics and high-performance polymers.

✓ High extrusion accuracy improves final printing quality.

✓ Suitable for both material research and commercial production.

✓ Flexible configuration meets different filament development requirements.

✓ Advanced control system simplifies operation and monitoring.

✓ Durable structure reduces maintenance requirements.

Technical Specifications

Parameter	Specification
Equipment Type	3D Filament Extruder Machine
Extrusion Type	Twin Screw Extruder

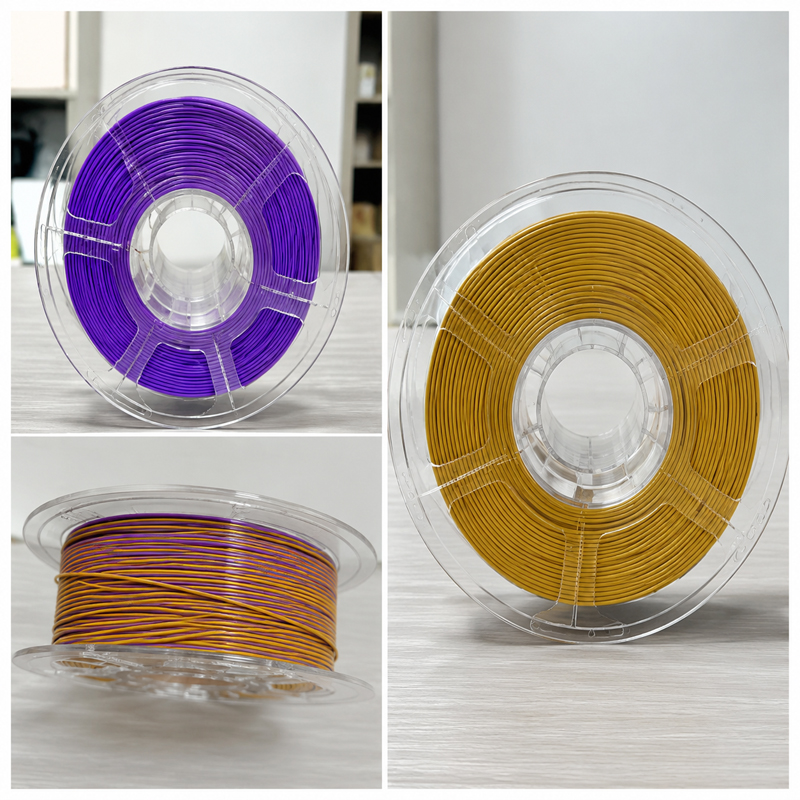

Final Product	3D Printing Filament
Suitable Materials	PLA, ABS, PEEK, PC, TPU, Engineering Plastics
Application	3D Printing Filament Production, Polymer Material Development
Screw Type	Twin Screw
Screw Diameter	20 mm
Screw L/D Ratio	44:1
Screw Material	38CrMoAlA Alloy Steel
Screw Speed	600 rpm
Capacity	2–5 kg/h
Power	20 kW
Voltage	380 V
Control System	Servo Control System
Feature	High Precision Extrusion
Filament Diameter Control	Precision Calibration System
Extrusion Accuracy	High Accuracy
Machine Structure	Integrated Extrusion System
Suitable Applications	Laboratory Research, Small Batch Production, Industrial Filament Manufacturing

Application Scenarios

3D printing filament manufacturers producing commercial printing materials.

Research laboratories developing new polymer-based printing materials.

Universities and technical institutes conducting extrusion experiments.

Companies producing customized filaments for special applications.

Engineering departments testing high-performance materials such as PEEK.

Small-scale production facilities requiring flexible filament manufacturing.

Prototype development centers producing customized printing materials.

Material suppliers improving polymer formulations and processing technology.

Industry Applications

Additive manufacturing industry for producing 3D printer consumables.

Automotive industry for lightweight component development and prototype manufacturing.

Aerospace industry for advanced engineering plastic applications.

Medical industry for customized polymer material research.

Electronics industry for functional plastic components and insulation materials.

Plastic material industry for polymer modification and filament production.

Research and development industry for new material testing and innovation.

Education industry for polymer processing experiments and training.



FAQ

1. What materials can this filament extruder process?
It can process PLA, ABS, PEEK, PC, PA, TPU, and other thermoplastic materials.

2. What is the advantage of a twin screw extrusion system?
Twin screws provide better mixing performance, stable conveying, and uniform material processing.

3. Is this machine suitable for laboratory research?
Yes, it is suitable for material testing, development, and small-batch production.

4. Can it produce PEEK filament?
Yes, the machine can be configured for high-performance materials such as PEEK with proper processing conditions.

5. What filament diameter can the machine produce?
The filament size can be customized according to customer requirements.

6. How does the machine ensure filament quality?
Precise temperature control, stable extrusion pressure, and calibration systems help maintain consistent filament quality.

7. Is the production process automatic?
The machine uses an advanced control system for convenient operation and parameter adjustment.

8. Can the equipment be customized?
Yes, screw design, die head, cooling system, and winding system can be customized.

9. What industries use this machine?
It is widely used in 3D printing, polymer research, engineering plastics, and material development industries.

10. Can it be integrated into a complete filament production line?
Yes, it can work together with feeding, cooling, monitoring, and winding systems for complete production.
