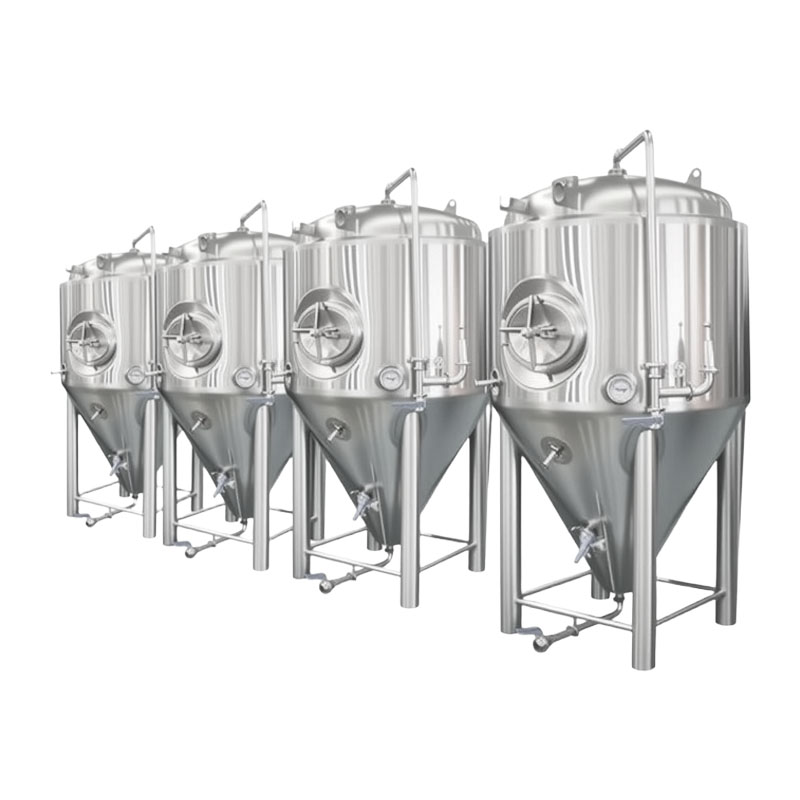

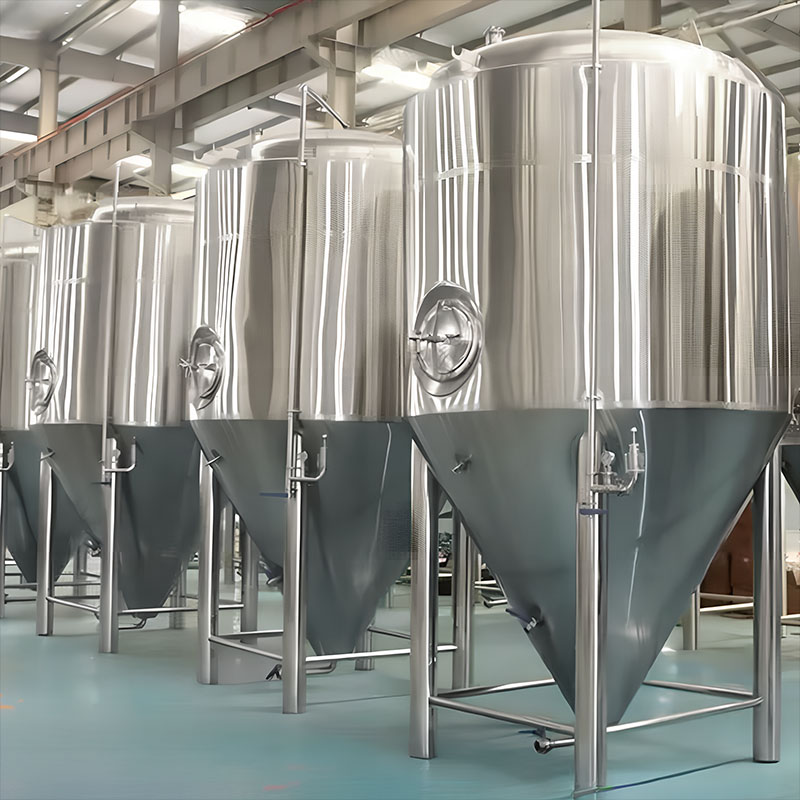

3000 L Stainless Steel Fermentation System for Brewing

Product introduction of Stainless Steel Fermentation System

The stainless steel fermentation system is engineered for modern craft beer production and microbrewery installations. It is widely used in restaurant breweries, hotel brewing systems, and commercial beer production facilities.

With decades of brewing engineering experience, the system integrates fermentation tanks, cellar equipment, and automation control systems into a complete solution. It is designed for hygienic production, stable fermentation, and efficient temperature control.

Working principle

Step 1: Wort Transfer

Hot wort is transferred into the stainless steel fermentation tank.

Step 2: Yeast Inoculation

Yeast is added to initiate controlled fermentation inside the tank.

Step 3: Temperature Control

Dimple jacket cooling system maintains optimal fermentation temperature.

Step 4: Fermentation Process

Yeast converts sugars into alcohol and CO₂ under controlled conditions.

Step 5: Yeast Discharge

Conical bottom design allows easy yeast separation and removal.

Step 6: Beer Transfer

Rotating racking arm is used for safe and flexible beer discharge.

Product Parameter Table

Parameter	Specification
Effective Volume	3000 L
Total Volume	3750 L
Size	1750 × 3450 mm
Material	SUS304 / SUS316
Control System	PLC Siemens or PID Schneider/ABB brand
Cooling Area	4.7 m²
Work Pressure	Inner jacket 0.4 MPa; Cooling jacket 0.5 MPa
Design Pressure	Inner jacket 0.2 MPa; Cooling jacket 0.3 MPa

Stainless Steel Fermentation System vs Traditional Brewery Setup

Main Features

• Turn-key brewery system design for commercial installations
• Integrated fermentation tanks with cellar brewing equipment
• Dimple jacket cooling system for efficient temperature control
• 60-degree conical bottom for effective yeast discharge
• Rotating racking arm for flexible beer transfer operations
• Adjustable leveling bolts for precise tank installation
• Lifting ears designed for easy hoisting and positioning
• Strict pressure testing: jacket 5Bar, shell 4Bar
• 48-hour water testing ensures structural safety and durability
• Optional mirror, brushed, or pickling passivation surface finish
• Shadowless manway for hygienic fermentation access
• Enlarged headspace design for improved fermentation performance

Application Scenarios

• for restaurant beer production → provides compact turn-key microbrewery system
• for hotel brewing operations → enables on-site fresh craft beer production
• for bar brewery installations → improves customer experience and beer freshness
• for inconsistent fermentation quality → ensures stable temperature-controlled brewing
• for limited production space → offers integrated compact brewery system

Why Choose This Stainless Steel Fermentation System

• Proven brewery engineering experience with global installations
• Turn-key system design reduces installation complexity
• High hygiene stainless steel ensures food-grade safety
• Advanced cooling and pressure testing guarantees reliability
• Suitable for microbrewery, restaurant, hotel, and industrial use

FAQ

1. What is a stainless steel fermentation system used for in breweries?

It is used for controlled fermentation of beer in microbreweries, restaurants, hotels, and commercial brewing plants.

2. How does a brewery fermentation tank work?

It allows yeast to ferment wort under controlled temperature and pressure conditions inside a sealed stainless steel vessel.

3. What is a turn-key brewery system?

It is a fully integrated brewing solution that includes fermentation tanks, cellar equipment, and automation systems.

4. Why are conical fermentation tanks used in beer brewing?

Conical tanks allow easy yeast separation and improve fermentation efficiency.

5. How is temperature controlled in fermentation systems?

Dimple jacket cooling systems regulate internal tank temperature precisely during fermentation.

6. What industries use stainless steel fermentation systems?

They are widely used in microbreweries, restaurants, bars, hotels, and craft beer production facilities.

7. What testing is done on fermentation tanks before delivery?

Pressure testing, water testing, and quality inspection are performed to ensure safety and durability.

8. What is a rotating racking arm in brewing equipment?

It is a device used for flexible and controlled beer transfer from fermentation tanks.
