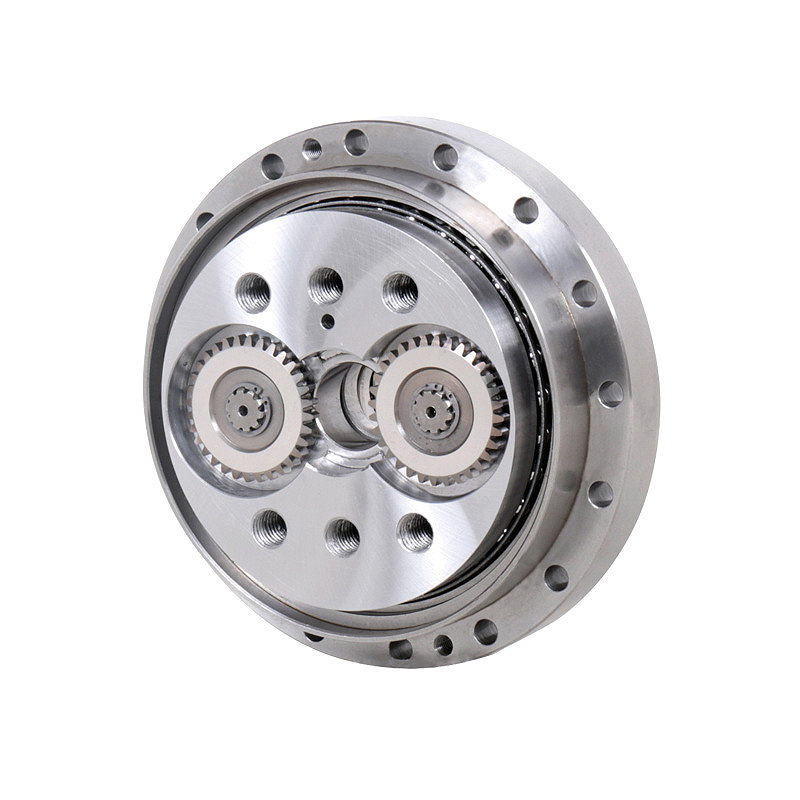

280RV E Series Cycloidal Gear Robot Arm Reducer Rrecision Reducer Cycloidal Pin Wheel Robot Manipulator Joint Reducer


  • Outline dimension: φ440mm
  • Allowable moment: 3900 N.m
  • Torsional rigidity: 392 N.m/(Arc.min)
  • Life: 6000h
  • Weight: 26.4kg

NOTE: Prices may vary by product model and material.

$2,190.00

Compare

Such precision reducer is particularly applicable to robots, CNC equipment, aerospace equipment, defense equipment and weapons requirements of high-precision control of the transmission system.

Model 280BX
Outline dimension Φ440mm
Reduction ratio 81,101,129,145,171
Allowable moment 3900 N.m
Torsional rigidity 392 N.m/(Arc.min)
Instantaneous maximum torque 7800 N.m
Transmission accuracy 1.0 Arc.min
Backlash of backlash 1.0 Arc.min
Life 6000h
Weight 26.4kg
